PVC Insulated, 3 Cores Flat Cables, 450/750V
Application
These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Suitable for two way or intermediate switching applications.
Standard
AS/NZS 5000.2
AS 1125
AS 3808
Construction

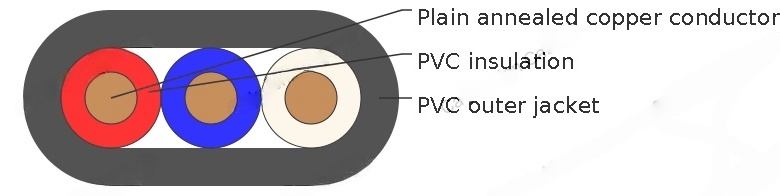

Conductor | Plain annealed copper. |
Insulation | PVC V90 |
Insulation colour: | 3C cable: Red, White, Blue |
Sheath: | Polyvinylchloride compound PVC 3V90 |
Sheath colour: | White, other colors are available upon request |
Technical Characteristics
Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
Nominal Area | Unenclosed In Air | Surrounded by thermal insulation | Buried In Ducts | Maximum DC Resistance @20°C | Maximum AC Resistance @75°C | Reactance | Single Phase Voltage Drop |
1 | 14 | 7 | 17 | 18.1 | 27.0 | 0.119 | 54.1 |
1.5 | 17 | 9 | 21 | 13.6 | 17.3 | 0.111 | 34.7 |
2.5 | 25 | 13 | 29 | 7.41 | 9.45 | 0.102 | 19.0 |
4 | 33 | 17 | 37 | 4.61 | 5.85 | 0.102 | 11.8 |
Cable Parameter
Nom. conductor area | Conductor | Nom. insulation thickness | Nom. sheath thickness | Nom. overall diameter | Approx. mass | |
|---|---|---|---|---|---|---|
Min | Max | |||||
1.0 | 1/1.13 | 0.6 | 0.9 | 8.8x4.1 | 9.3x4.4 | 75 |
1.5 | 7/0.50 | 0.6 | 0.9 | 9.9x4.5 | 10.4x4.8 | 95 |
2.5 | 7/0.67 | 0.7 | 1 | 12.1x5.4 | 12.7x5.7 | 145 |
4 | 7/0.85 | 0.8 | 1.1 | 14.7x6.4 | 15.4x6.7 | 220 |
