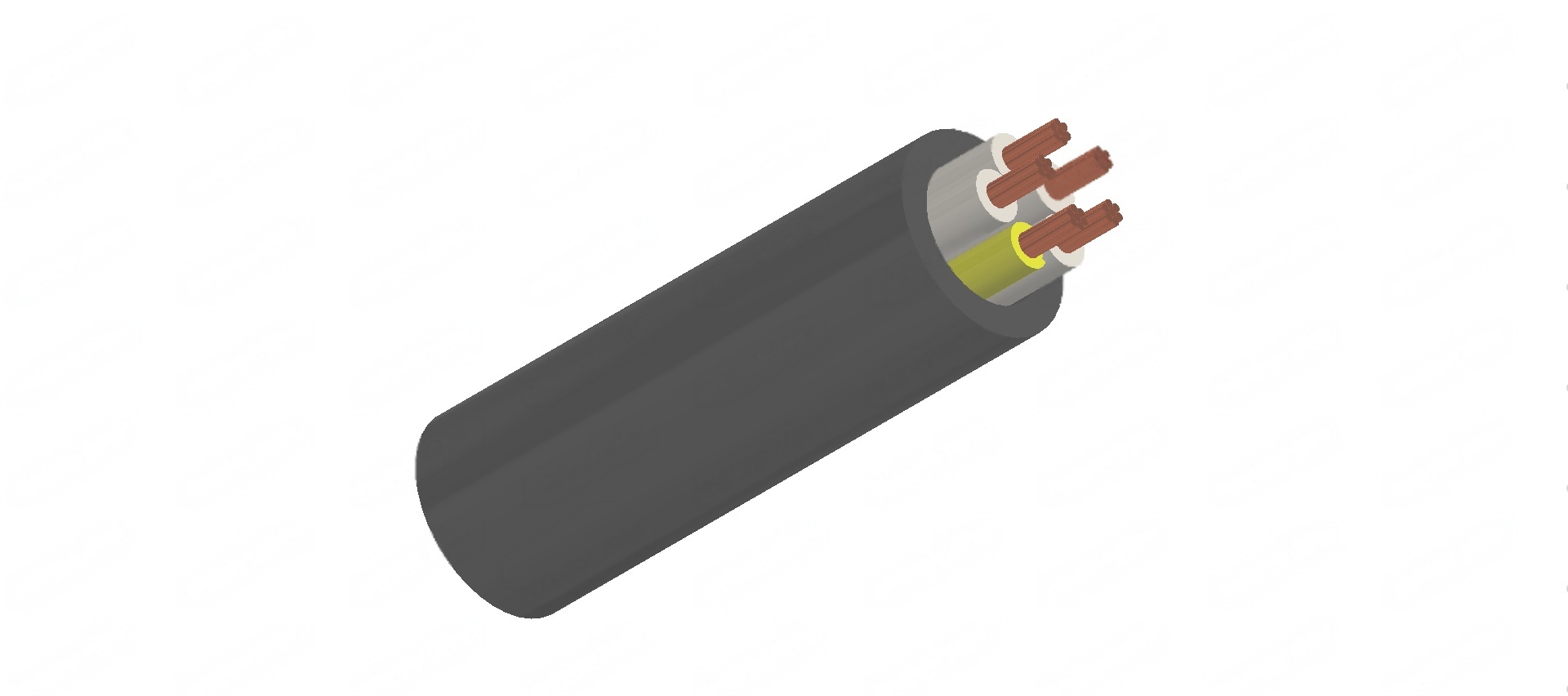

PVC Insulated, PVC Sheathed Multi-core+E Control Cables, 0.6/1kV
Application
These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where not subject to mechanical damage.
Standard
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

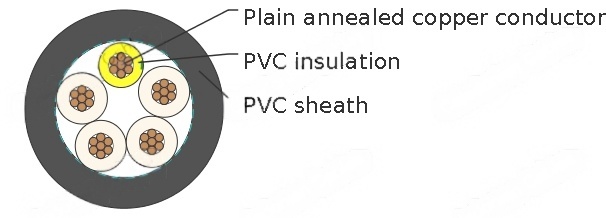

Construction
Conductor | Plain annealed copper. |
Insulation | Polyvinylchloride compound PVC V-90 |
Insulation colour: | White(black letter numbered), Green/yellow |
Sheath: | Polyvinylchloride compound PVC 5V-90 |
Sheath colour: | Orange, other colors are available upon request |
Technical Characteristics
Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
Nominal Area | Unenclosed In Air | Buried Direct | Buried In Ducts | Maximum DC Resistance @20°C | Maximum AC Resistance @75°C | Reactance | Three Phase Voltage Drop @75°C |
1.5mm2 | |||||||
2C+E | 18 | 14 | 22 | 13.6 | 16.5 | 0.111 | 33.0 |
3-50C+ E | 15 | 13 | 19 | 13.6 | 16.5 | 0.111 | 33.0 |
2.5mm2 | |||||||
2C+E | 26 | 20 | 31 | 7.41 | 9.01 | 0.102 | 18.0 |
3-50C+ E | 22 | 18 | 26 | 7.41 | 9.01 | 0.102 | 18.0 |
Cable Parameter
Nom. conductor area | Conductor | Nom. insulation thickness | Nom. earth conductor area | Nom. earth conductor insulation thickness | Nom. overall diameter | Approx. mass |
|---|---|---|---|---|---|---|
1.5mm2 | ||||||
2C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 10.6 | 165 |
3C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 11.5 | 190 |
4C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 12.4 | 215 |
6C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 13.4 | 275 |
8C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 16.6 | 340 |
10C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 16.9 | 375 |
12C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 17.9 | 435 |
15C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 18.9 | 525 |
20C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 20.7 | 680 |
25C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 22.9 | 785 |
30C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 25.8 | 845 |
40C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 28.0 | 1190 |
50C+ E | 7/0.50 | 0.8 | 1.5 | 0.6 | 30.8 | 1290 |
2.5mm2 | ||||||
2C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 11.6 | 210 |
3C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 12.6 | 250 |
4C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 13.7 | 285 |
6C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 14.8 | 365 |
8C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 18.4 | 455 |
10C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 19.9 | 530 |
12C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 20.0 | 605 |
15C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 21.0 | 715 |
20C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 25.7 | 950 |
25C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 26.3 | 1095 |
30C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 28.3 | 1200 |
40C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 33.5 | 1565 |
50C+ E | 7/0.67 | 0.8 | 2.5 | 0.7 | 35.0 | 1925 |
