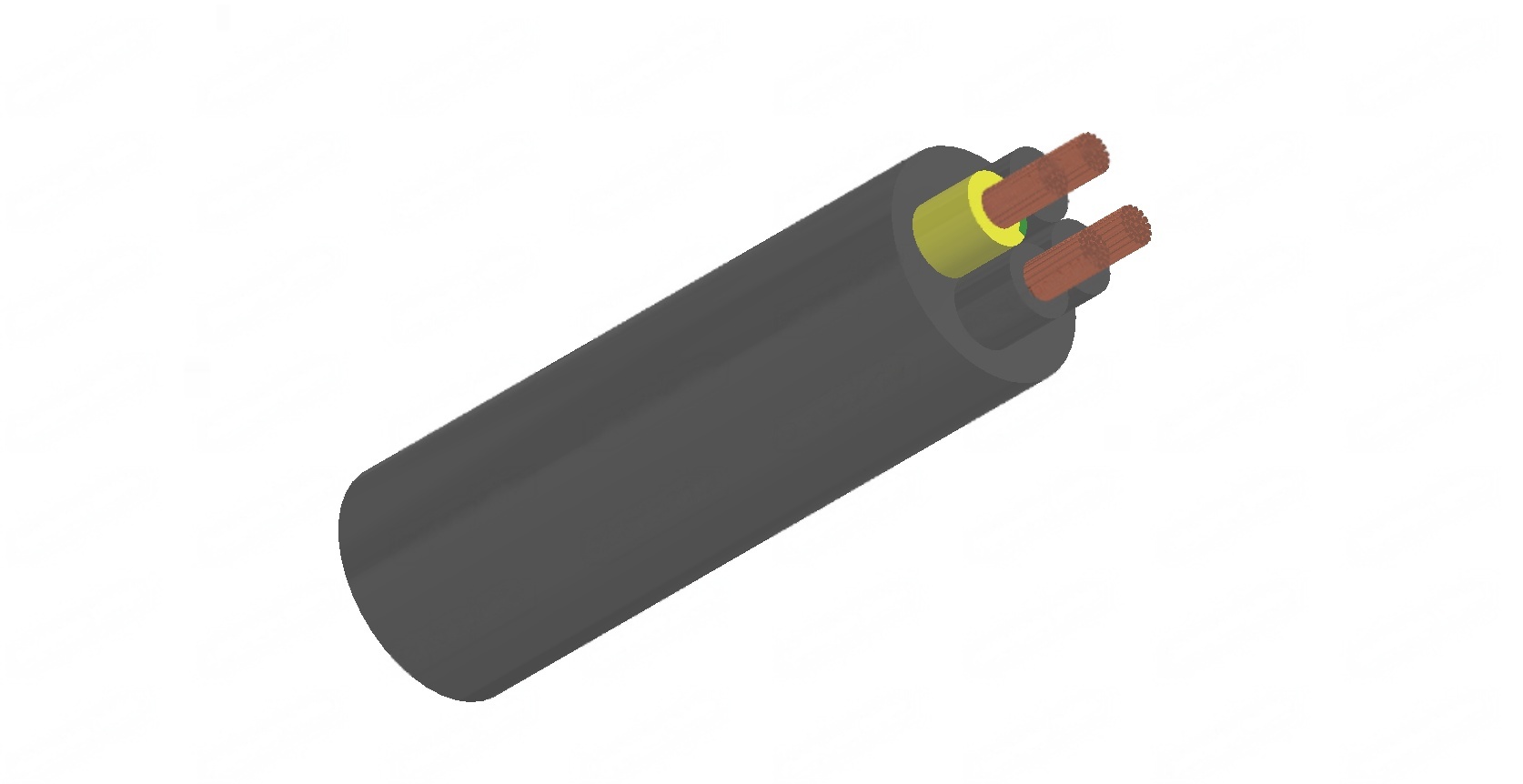

PVC/PVC to UL/CSA 600V Torsion Resistant Cable
Application
These cables with increased tolerance to Torsion Application, UV and oil resistant are specifically designed for the torsion applications in wind turbines.
Standards
UL 758
Construction
Conductor | Stranded bare copper according to DIN VDE 0295. |
Insulation | Special PVC flexible at low temperatures. |
Sheath | Special PVC flexible at low temperatures. |
Technical Data
RATED VOLTAGE U0/U (UM) | 600V |
|---|---|
OPERATING TEMPERATURES | flexing: -40℃~+80℃; fixed: -40℃~+80℃ |
MINIMUM BENDING RADIUS | flexing:10×OD; fixed: 4×OD |
TORSION APPLICATION | +/-140°/m |
FLAME RETARDANT | CSA C 22.2 |
OIL RESISTANT | IEC 60811-2-1 |
UV RESISTANT | Yes |
Dimensions and Weight
CONSTRUCTION | AWG /MCM | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|
NO. OF CORES×MM^2 | - | MM | KG/KM |
4×0.34 | 22 | 7.1 | 86 |
4×0.5 | 20 | 7.4 | 99 |
6×0.5 | 20 | 8.6 | 121 |
10×0.5 | 20 | 10.8 | 165 |
12×0.5 | 20 | 11.1 | 208 |
3×0.75 | 19 | 7.3 | 77 |
4×0.75 | 19 | 7.9 | 100 |
5×0.75 | 19 | 8.6 | 120 |
7×0.75 | 19 | 10.0 | 170 |
10×0.75 | 19 | 11.0 | 200 |
12×0.75 | 19 | 11.8 | 220 |
14×0.75 | 19 | 12.5 | 238 |
16×0.75 | 19 | 13.2 | 271 |
18×0.75 | 19 | 13.9 | 310 |
21×0.75 | 19 | 15.2 | 380 |
25×0.75 | 19 | 16.9 | 490 |
32×0.75 | 19 | 18.2 | 560 |
36×0.75 | 19 | 19.1 | 620 |
40×0.75 | 19 | 20.5 | 729 |
41×0.75 | 19 | 20.8 | 729 |
50×0.75 | 19 | 23.5 | 990 |
4×1 | 18 | 8.3 | 100 |
5×1 | 18 | 9.0 | 110 |
7×1 | 18 | 10.5 | 140 |
10×1 | 18 | 13.0 | 220 |
12×1 | 18 | 13.2 | 240 |
14×1 | 18 | 13.4 | 280 |
16×1 | 18 | 14.1 | 310 |
18×1 | 18 | 15.1 | 360 |
21×1 | 18 | 16.7 | 410 |
25×1 | 18 | 18.4 | 500 |
32×1 | 18 | 19.8 | 590 |
36×1 | 18 | 20.6 | 700 |
40×1 | 18 | 22.4 | 800 |
41×1 | 18 | 22.4 | 810 |
50×1 | 18 | 24.6 | 980 |
2×1.5 | 16 | 7.9 | 75 |
3×1.5 | 16 | 8.0 | 110 |
4×1.5 | 16 | 8.9 | 131 |
5×1.5 | 16 | 9.7 | 165 |
7×1.5 | 16 | 12.0 | 210 |
10×1.5 | 16 | 13.1 | 270 |
12×1.5 | 16 | 14.3 | 360 |
14×1.5 | 16 | 14.9 | 420 |
16×1.5 | 16 | 15.7 | 450 |
18×1.5 | 16 | 16.8 | 510 |
21×1.5 | 16 | 17.8 | 590 |
25×1.5 | 16 | 20.6 | 700 |
32×1.5 | 16 | 22.2 | 900 |
36×1.5 | 16 | 23.1 | 980 |
40×1.5 | 16 | 25.0 | 1030 |
41×1.5 | 16 | 25.0 | 1050 |
50×1.5 | 16 | 27.7 | 1200 |
3×2.5 | 14 | 8.9 | 151 |
4×2.5 | 14 | 9.7 | 230 |
5×2.5 | 14 | 10.9 | 250 |
7×2.5 | 14 | 14.4 | 360 |
10×2.5 | 14 | 15.8 | 480 |
12×2.5 | 14 | 16.3 | 580 |
19×2.5 | 14 | 20.4 | 690 |
3×4 | 12 | 10.8 | 250 |
4×4 | 12 | 12.0 | 270 |
5×4 | 12 | 13.6 | 370 |
7×4 | 12 | 15.9 | 530 |
12×4 | 12 | 19.6 | 740 |
3×6 | 10 | 13.1 | 340 |
4×6 | 10 | 14.6 | 460 |
5×6 | 10 | 16.3 | 550 |
7×6 | 10 | 19.6 | 780 |
4×10 | 8 | 17.4 | 670 |
5×10 | 8 | 20.1 | 870 |
7×10 | 8 | 23.5 | 1150 |
4×16 | 6 | 22.6 | 1000 |
5×16 | 6 | 25.4 | 1250 |
4×25 | 4 | 26.5 | 1580 |
5×25 | 4 | 28.2 | 1900 |
4×35 | 2 | 31.4 | 2100 |
5×35 | 2 | 35.4 | 2600 |
4×50 | 1 | 36.7 | 2800 |
1×35 | 2 | 12.9 | 460 |
1×70 | 2/0 | 17.9 | 880 |
1×95 | 3/0 | 21.9 | 1230 |
1×120 | 4/0 | 23.1 | 1540 |
1×150 | 300 | 27.2 | 1870 |
1×185 | 350 | 28.0 | 2300 |
1×240 | 500 | 31.2 | 2970 |
1×300 | 600 | 35.0 | 3730 |
1×400 | 750 | 39.3 | 4500 |
