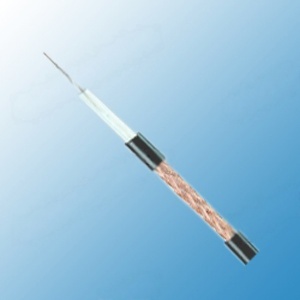

RG 11 PC
Construction
Inner conductor | Plain copper | 7 x 0.40 mm |
Dielectric | Low density PE | Φ7.25 ± 0.18 mm |
Outer conductor (shield) | Plain copper | 112 x 0.15 mm |
Shield coverage |
| 64% |
Sheath | PVC or LSZH | Φ10.3 ± 0.18 mm |
Electrical & Mechanical Characteristics
Impedance | 75±5 Ohm |
Nominal capacitance | 67 pF/m |
Velocity of propagation | 66% |
Insulation resistance | >2000 Mohm.Km |
Inner conductor resistance | 20.5 Ohm/Km |
Outer conductor resistance | 10 Ohm/Km |
Operating temperature range | -30 °C - +70 °C |
Copper weight | 27.8 Kg/Km |
Cable weight (approx.) | 118.2 Kg/Km |
Screening effectiveness | >45 dB |
Attenuation
Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100ft) |
50 | 4.4 | 1.34 |
100 | 6.4 | 1.95 |
200 | 9.7 | 2.96 |
400 | 14.3 | 4.36 |
500 | 16.1 | 4.91 |
600 | 17.9 | 5.46 |
860 | 22 | 6.71 |
1000 | 24.4 | 7.44 |
Return Loss
30-300 MHz | >30dB |
300-600 MHz | >27dB |
600-900 MHz | >25dB |
