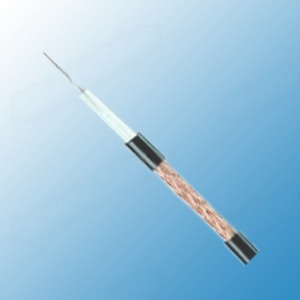

RG 11 PC1
Construction
Inner conductor | Plain copper | 7 x 0.40 mm |
Dielectric | Low density PE | Φ7.25 ± 0.18 mm |
Outer conductor (shield) | Plain copper | 240 x 0.15 mm |
Shield coverage |
| 97% |
Sheath | PVC or LSZH | Φ10.3 ± 0.18 mm |
Electrical & Mechanical Characteristics
Impedance | 75±5 Ohm |
Nominal capacitance | 67 pF/m |
Velocity of propagation | 66% |
Insulation resistance | >2000 Mohm.Km |
Inner conductor resistance | 20.5 Ohm/Km |
Outer conductor resistance | 4.5 Ohm/Km |
Operating temperature range | -30 °C - +70 °C |
Copper weight | 49.8 Kg/Km |
Cable weight (approx.) | 140.2 Kg/Km |
Screening effectiveness | >55 dB |
Attenuation
Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100ft) |
50 | 4.2 | 1.28 |
100 | 6.2 | 1.89 |
200 | 9.2 | 2.8 |
400 | 13.8 | 4.21 |
500 | 15.5 | 4.73 |
600 | 17.1 | 5.21 |
860 | 21.1 | 6.43 |
1000 | 23.4 | 7.13 |
Return Loss
30-300 MHz | >30dB |
300-600 MHz | >27dB |
600-900 MHz | >25dB |
