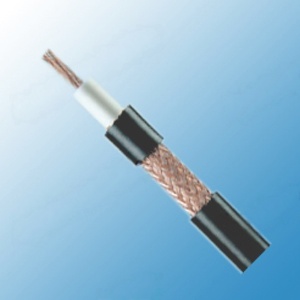

RG 213 PC1
Construction
Inner conductor | Plain copper | 7 x 0.75 mm |
Dielectric | Low density PE | Φ7.25 ± 0.08 mm |
Outer conductor (shield) | Plain copper | 240 x 0.13 mm |
Shield coverage |
| 93% |
Sheath | PVC or LSZH | Φ10.3 ± 0.18 mm |
Electrical & Mechanical Characteristics
Impedance | 50±3 Ohm |
Nominal capacitance | 100 pF/m |
Velocity of propagation | 66% |
Insulation resistance | >2000 Mohm.Km |
Inner conductor resistance | 6.0 Ohm/Km |
Outer conductor resistance | 5.0 Ohm/Km |
Operating temperature range | -30 °C - +70 °C |
Copper weight | 59.9 Kg/Km |
Cable weight (approx.) | 149.7 Kg/Km |
Screening effectiveness | >55 dB |
Attenuation
Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
50 | 4.5 | 1.37 |
100 | 6.8 | 2.07 |
200 | 10 | 3.05 |
400 | 14.5 | 4.42 |
500 | 16.4 | 5 |
600 | 18.1 | 5.52 |
860 | 22.5 | 6.86 |
1000 | 24.7 | 7.53 |
Return Loss
30-300 MHz | >31dB |
300-600 MHz | >28dB |
600-900 MHz | >27dB |
