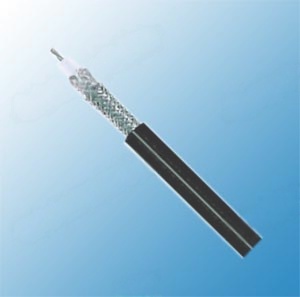

RG 223 TC
Construction
Inner conductor | Tinned copper | 19 x 0.18 mm |
Dielectric | Low density PE | Φ2.95 ± 0.10 mm |
Outer conductor(shield 1) | Silver plated copper | 112 x 0.13 mm |
Shield coverage |
| 98% |
Outer conductor(shield 2) | Silver plated copper | 112 x 0.13 mm |
Shield coverage |
| 97% |
Sheath | PVC or LSZH | Φ5.40 ± 0.10 mm |
Electrical & Mechanical Characteristics
Impedance | 50±3 Ohm |
Nominal capacitance | 100 pF/m |
Velocity of propagation | 66% |
Insulation resistance | >2000 Mohm.Km |
Inner conductor resistance | 37.5 Ohm/Km |
Outer conductor resistance | 8 Ohm/Km |
Operating temperature range | -30 °C - +70 °C |
Copper weight | 32.7 Kg/Km |
Cable weight (approx.) | 54.2 Kg/Km |
Screening effectiveness | >70 dB |
Attenuation
Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
50 | 9.7 | 2.9 |
100 | 13.9 | 4.24 |
200 | 20.4 | 6.22 |
400 | 30 | 9.15 |
500 | 34.2 | 10.43 |
600 | 37.9 | 11.55 |
860 | 46.9 | 14.3 |
1000 | 51.8 | 15.79 |
Return Loss
30-300 MHz | >27dB |
300-600 MHz | >23dB |
600-900 MHz | >22dB |
