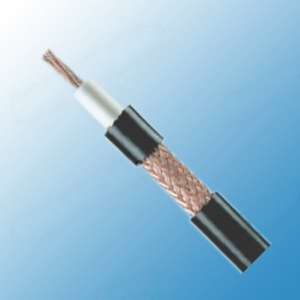

RG 58 PC
Construction
Inner conductor | Plain copper | 16 x 0.18 mm |
Dielectric | Low density PE | Φ2.85 ± 0.10 mm |
Outer conductor (shield) | Plain copper | 80 x 0.12 mm |
Shield coverage |
| 79% |
Sheath | PVC or LSZH | Φ5.00 ± 0.10 mm |
Electrical & Mechanical Characteristics
Impedance | 50±3 Ohm |
Nominal capacitance | 100 pF/m |
Velocity of propagation | 66% |
Insulation resistance | >2000 Mohm.Km |
Inner conductor resistance | 44 Ohm/Km |
Outer conductor resistance | 24 Ohm/Km |
Operating temperature range | -30 °C - +70 °C |
Copper weight | 12.4 Kg/Km |
Cable weight (approx.) | 34.4 Kg/Km |
Screening effectiveness | >50 dB |
Attenuation
Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100 ft) |
50 | 9.8 | 2.99 |
100 | 14.1 | 4.3 |
200 | 20.6 | 6.28 |
400 | 30.4 | 9.27 |
500 | 34.8 | 10.61 |
600 | 38.7 | 11.8 |
860 | 47.9 | 14.6 |
1000 | 52.8 | 16.1 |
Return Loss
30-300 MHz | >26dB |
300-600 MHz | >25dB |
600-900 MHz | >22dB |
