RG Series Coaxial Cables 50 Ω/75 Ω IEC60092

Application

These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission

Standards

MIL C 17 (RG)
IEC 60092-359
IEC 60332-1
IEC 60754-1/2
IEC 61034

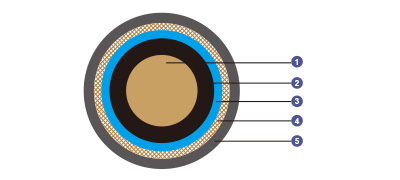

Construction

Conductors

Solid or stranded TC (Tinned copper), BC (Bare copper), BCW (Bare copperweld), SC (Silvered copper) and SPCCS (Silver plated copper on steel).

Insulation

Foam PE.

Fire Barriers

Aluminium foil.

Screen

Single or double braid. Bare, tinned or silvered copper.

Outer Sheath

LSOH (SHF1).

RG 178

RG 58

RG 174

RG 213

RG 214

RG 59

RG 223

RG 6

RG 11

Capacitance

pF/m

100

100

100

100

100

67

100

52

53

Impedance @200MHz

Ω

50 ± 2

50 ± 2

50 ± 2

50 ± 2

50 ± 2

75 ± 3

50 ± 2

75 ± 3

75 ± 3

Attenuation @50MHz

dB/100m

38

13

21

3

5

10

15

4.6

2.8

Attenuation @100MHz

dB/100m

52

21

32

7

8

14

21

6.4

4.1

Attenuation @200MHz

dB/100m

74

34

46

13

13

20

30

9.0

5.9

Attenuation @400MHz

dB/100m

108

55

82

15

22

29

39

12.8

8.5

Attenuation @1000MHz

dB/100m

170

91

147

29

39

52

68

20.8

14.3

Part No.

Cable Type

Conductor

Stranding

No.×mm

Conductor Diameter mm

Dielectric Diameter mm

Nominal Overall

Diameter mm

Nominal Weight kg/km

UE092-RG58C

RG 58 CU

19×0.18 TC

0.90

3.0

4.95

40

UE092-RG174A

RG 174 AU

7×0.16 BCW

0.48

1.55

2.8

10

UE092-RG213U

RG 213 U

7×0.75 BC

2.25

7.3

10.3

157

UE092-RG214U

RG 214 U

7×0.75 SC

2.25

7.3

10.8

195

UE092-RG178U

RG 178 U

7×0.10 SPCCS

0.30

0.9

1.8

7

UE092-RG223U

RG 223 U

1×0.90 SC

0.90

3.02

5.38

55

Part No.

Cable Type

Conductor

Stranding

No.×mm

Conductor Diameter mm

Dielectric Diameter mm

Nominal Overall

Diameter mm

Nominal Weight kg/km

UE092-RG6

RG 6

1 x 1.0 BC

1.0

4.5

7.1

80

UE092-RG59

RG 59

1 x 0.57 BCW

0.57

3.75

6.15

53

UE092-RG11

RG 11

1 x 1.6 BC

1.6

7.2

10.3

135
