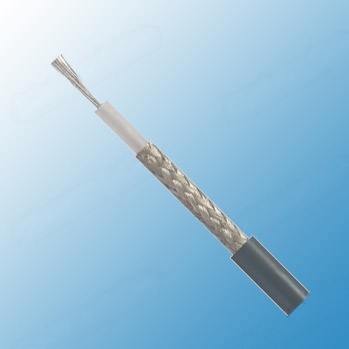

RGD179 Mini-Coax
Construction
Inner conductor | Silver plated copper | 7 x 0.10 mm |
Dielectric | Solid PTFE | Φ1.6 mm |
Outer conductor | Silver plated copper | 0.10 mm |
Sheath | FEP | Φ2.5 mm |
Electrical & Mechanical Characteristics
Impedance | 75±5 Ohm |
Nominal capacitance | 63 pF/m |
Velocity of propagation | 70% |
Insulation resistance | - Mohm.Km |
Inner conductor resistance | - Ohm/Km |
Outer conductor resistance | - Ohm/Km |
Operating temperature range | -55°C - +200 °C |
Cable weight (approx.) | 15 kg/km |
Attenuation
Frequency (MHz) | Attenuation (dB/100 m) | Max. Attenuation(dB/100ft) |
100 | 28 | 8.5 |
200 | 39 | 11.9 |
400 | 56 | 17.1 |
900 | 85 | 25.9 |
1200 | 98 | 29.9 |
1500 | 110 | 33.5 |
1800 | 121 | 36.9 |
2000 | 128 | 39 |
2500 | 144 | 43.9 |
