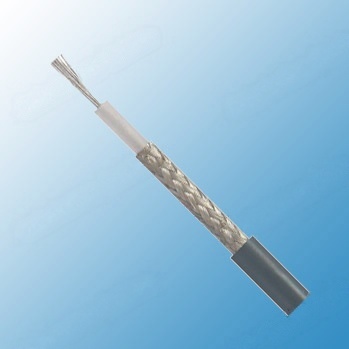

RGD316 Mini-Coax
Construction
Inner conductor | Silver plated copper | 7 x 0.18 mm |
Dielectric | Solid PTFE | Φ1.56 mm |
Outer conductor | Silver plated copper | 0.10 mm |
Sheath | FEP | Φ2.45 mm |
Electrical & Mechanical Characteristics
Impedance | 50±3 Ohm |
Nominal capacitance | 94 pF/m |
Velocity of propagation | 70% |
Insulation resistance | - Mohm.Km |
Inner conductor resistance | - Ohm/Km |
Outer conductor resistance | - Ohm/Km |
Operating temperature range | -55°C - +200 °C |
Cable weight (approx.) | 15 kg/km |
Attenuation
Frequency (MHz) | Attenuation (dB/100 m) | Max. Attenuation(dB/100ft) |
100 | 27 | 8.2 |
200 | 38 | 11.6 |
400 | 54 | 16.5 |
900 | 82 | 25 |
1200 | 95 | 29 |
1500 | 106 | 32.3 |
1800 | 117 | 35.7 |
2000 | 124 | 37.8 |
2500 | 139 | 42.4 |
