S-3GSHCOEU 0.6/1kV & UL 1000V 90°C
Application
These cables are designed for use at medium mechanical stresses in wind turbines.
Standards
UL 758
DIN VDE 0250

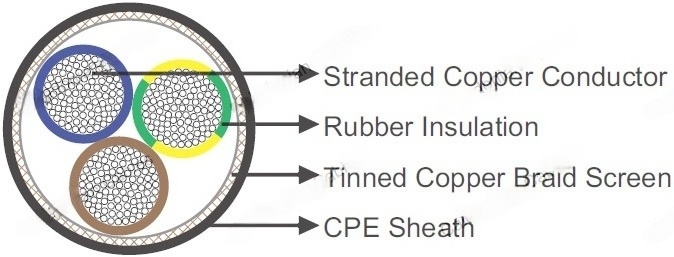

Construction
Conductor | Stranded bare copper, class 5 according to IEC 60228/DIN EN 60228 |
Insulation | Rubber compound |
Screen | Tinned copper wires. Mixed braid of tinned copper wires and polyester yarn can be offered upon request |
Sheath | CPE |
Technical Data
Rated Voltage Uo/U(Um) | 600/1000V (DIN VDE 0250)/1000V (AWM 758) |
Operating Temperatures | -40℃~+90℃ |
Maximum Permissible Tensile Load | 15 N/mm^2 |
Minimum Bending Radius | flexing: 10×OD; fixed: 6×OD |
Short-circuit Temperature | 250℃ |
Flame Retardant | IEC 60332-1 |
Oil Resistant | Yes |
Ozone Resistant | Yes |
UV Resistant | Yes |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×95 | 23.0 | 1120 |
1×120 | 26.0 | 1607 |
1×185 | 30.5 | 2341 |
1×240 | 34.0 | 2953 |
