SANS 1507-3 Steel Wired Armoured PVC-PVC 0.6/1KV Cable

Comprehensive Guide to SANS 1507-3 Steel Wired Armoured PVC-PVC 0.6/1kV Cable

                              SANS 1507-3 Steel Wired Armoured PVC-PVC 0.6/1KV Cable

APPLICATION:

Direct burial in free-draining soil conditions for fixed indoor and outdoor installations.

CHARACTERISTICS:

Voltage Rating Uo/U 0.6/1kV

Temperature Rating Operating

Temperature: -20 to +70 oC

Minimum Bending Radius: 1.5mm2 to 16mm2 -

Fixed: 6 x overall diameter 25mm2 and above -

Fixed: 8 x overall diameter

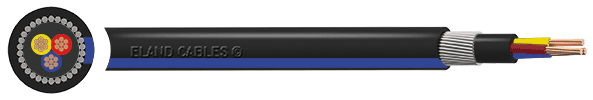

CONSTRUCTION:

Conductor Copper conductor

Insulation PVC (Polyvinyl Chloride)

Bedding PVC (Polyvinyl Chloride)

Armour SWA (Galvanized Steel Wire Armour)

Sheath PVC (Polyvinyl Chloride)

Core Identification

2 core: Red Yellow

3 core: Red Yellow Blue

4 core: Red Yellow Blue Black

Sheath Colour: Black with Blue Stripe

STANDARDS:

SANS 1507-3 Flame Retardant according to IEC 60332-1-2

In South Africa, where mining, power distribution, and heavy industry are central to economic growth, reliable low-voltage cabling solutions play an essential role in ensuring safe and efficient operations. Among the most widely used cable types is the SANS 1507-3 Steel Wired Armoured (SWA) PVC-PVC 0.6/1kV cable, specifically designed for direct burial, harsh environmental conditions, and high mechanical protection.

Cable Overview: What is the SANS 1507-3 SWA PVC-PVC 0.6/1kV Cable?

The SANS 1507-3 standard specifies requirements for armoured low-voltage cables that are widely used in South African electrical networks. The 0.6/1kV voltage rating makes this cable suitable for low-voltage power distribution, while its steel wire armour ensures excellent mechanical strength and protection.

Key applications include:

  • Direct burial in free-draining soil conditions.

  • Fixed installations in both indoor and outdoor environments.

  • Power supply to mining operations, construction projects, and industrial facilities.

Benefits of SANS 1507-3 SWA PVC-PVC Cables

  1. Mechanical Protection – SWA ensures safety in high-risk environments such as mining and construction.

  2. Cost Efficiency – Long service life reduces replacement costs.

  3. Environmental Resistance – PVC sheath resists UV, chemicals, and moisture.

  4. Safety – Flame retardant in compliance with IEC 60332-1-2.

  5. Versatility – Suitable for underground, indoor, and outdoor fixed installations.

  6. Regulatory Compliance – Meets SANS 1507-3, aligning with South African safety and performance standards.

Applications in South Africa

Mining Industry

South Africa’s mining sector demands robust cabling solutions. SWA PVC-PVC cables are commonly used for:

  • Powering conveyor belts, crushers, and ventilation systems.

  • Substation-to-facility power transmission.

  • Underground and open-pit mining environments, where cables face abrasion and mechanical stress.

Construction and Infrastructure

Used in:

  • Temporary site power for large construction projects.

  • Permanent low-voltage power distribution in housing, shopping centres, and industrial parks.

Heavy Industry and Utilities

  • Distribution in steel plants, refineries, and processing facilities.

  • Rural electrification projects supported by government programs.

Frequently Asked Questions (FAQ)

Q1: What does SWA stand for in SANS 1507-3 cables?
A: SWA means Steel Wire Armour, a protective layer that enhances mechanical strength.

Q2: Can these cables be used for overhead lines?
A: No. They are designed for direct burial and fixed installations, not aerial suspension.

Q3: What makes them suitable for mining applications?
A: The combination of mechanical protection, flame retardancy, and regulatory compliance.

Q4: Are they resistant to fire?
A: Yes, they are flame-retardant as per IEC 60332-1-2.

Q5: How do I choose the right cable size?
A: Select based on load current, installation conditions, and voltage drop calculations.

The SANS 1507-3 Steel Wired Armoured PVC-PVC 0.6/1kV cable is one of the most versatile and reliable low-voltage cables in South Africa. Its robust construction, flame-retardant properties, and compliance with SANS standards make it an essential choice for mining, construction, and industrial sectors.

In a country where mining and infrastructure drive economic progress, selecting the right cable type is critical for ensuring safety, efficiency, and sustainability. With proper installation and maintenance, these cables can provide decades of reliable performance in some of the harshest conditions.
