SF047

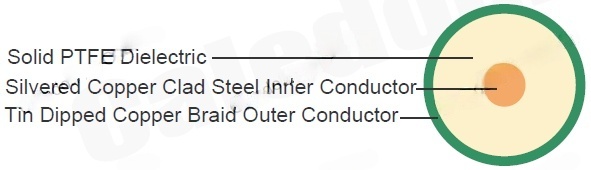

Construction
Inner conductor | Silver plated copper clad steel | Φ0.29 mm |
Dielectric | Solid PTFE | Φ0.94 ± 0.10 mm |
Outer conductor | Tin Dipped Copper Braid | Φ1.19 ± 0.10 mm |
Shield coverage |
| 100% |
Electrical & Mechanical Characteristics
Impedance | 50±3 Ohm |
Nominal capacitance | 95 pF/m |
Velocity of propagation | - |
Insulation resistance | - |
Inner conductor resistance | - |
Outer conductor resistance | - |
Max. operating voltage | 1.5KV |
Operating temperature range | -55°C - +155 °C |
Min.bending radius | 4 mm |
Attenuation
Frequency (GHz) | Max. Attenuation (dB/100m) | Max. Attenuation (dB/100ft) |
|---|---|---|
0.5 | 82 | 25 |
1 | 118 | 36 |
5 | 269 | 82 |
10 | 420 | 128 |
20 | 578 | 176 |
