SF086C-FEP

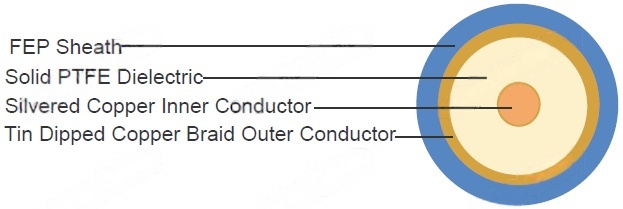

Construction
Inner conductor | Silver plated copper | Φ0.51 mm |
Dielectric | Solid PTFE | Φ1.68 ± 0.10 mm |
Outer conductor | Tin Dipped Copper Braid | Φ2.20 ± 0.10mm |
Shield coverage |
| 100% |
Sheath | FEP | Φ2.69 mm |
Electrical & Mechanical Characteristics
Impedance | 50±2 Ohm |
Nominal capacitance | 95 pF/m |
Velocity of propagation | - |
Insulation resistance | - |
Inner conductor resistance | - |
Outer conductor resistance | - |
Max. operating voltage | 1.5KV |
Operating temperature range | -55°C - +155 °C |
Min. bending radius | 4 mm |
Attenuation
Frequency (GHz) | Max. Attenuation (dB/100m) | Max. Attenuation (dB/100ft) |
|---|---|---|
0.5 | 49 | 15.0 |
1 | 67 | 20.0 |
5 | 164 | 50.0 |
10 | 246 | 75.0 |
20 | 360 | 110.0 |
