SF250 (Flexible RG 401)

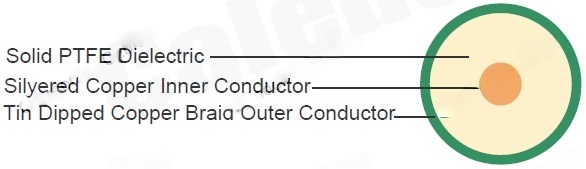

Construction
Inner conductor | Silver plated copper | Φ1.63 mm |
Dielectric | Solid PTFE | Φ5.30 ± 0.10 mm |
Outer conductor | Tin Dipped Copper Braid | Φ6.35± 0.10mm |
Shield coverage |
| 100% |
Electrical & Mechanical Characteristics
Impedance | 50±2 Ohm |
Nominal capacitance | 95.1 pF/m |
Velocity of propagation | - |
Insulation resistance | - |
Inner conductor resistance | - |
Outer conductor resistance | - |
Max. operating voltage | 3.5KV |
Operating temperature range | -55°C - +155 °C |
Min. bending radius | 30 mm |
Attenuation
Frequency (GHz) | Max. Attenuation (dB/100m) | Max. Attenuation (dB/100ft) |
|---|---|---|
0.5 | 17 | 5 |
1 | 25 | 8 |
5 | 63 | 19 |
10 | 103 | 31 |
20 | 154 | 47 |
