SIF

Product application

Suitable where PVC insulated cables become brittle due to high temperature variations. Silicone insulated single cores are preferably used in the metallurgical industry, steel works, hot rolling mills, coking plants, foundries etc. Insulation consists of silicone rubber. It is resistant to vegetable and animal fat, many types of oil and diluted acids. No decomposition occurs when exposed to alcohol, alkaline solutions, etc. The insulation is resistant to oxygen and ozone. Should the cable burn, an insulation silicone dioxide layer will remain on the conductor to render it short circuit proof.

Product characteristic

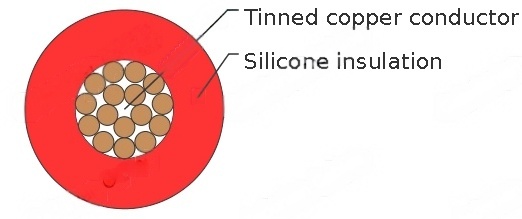

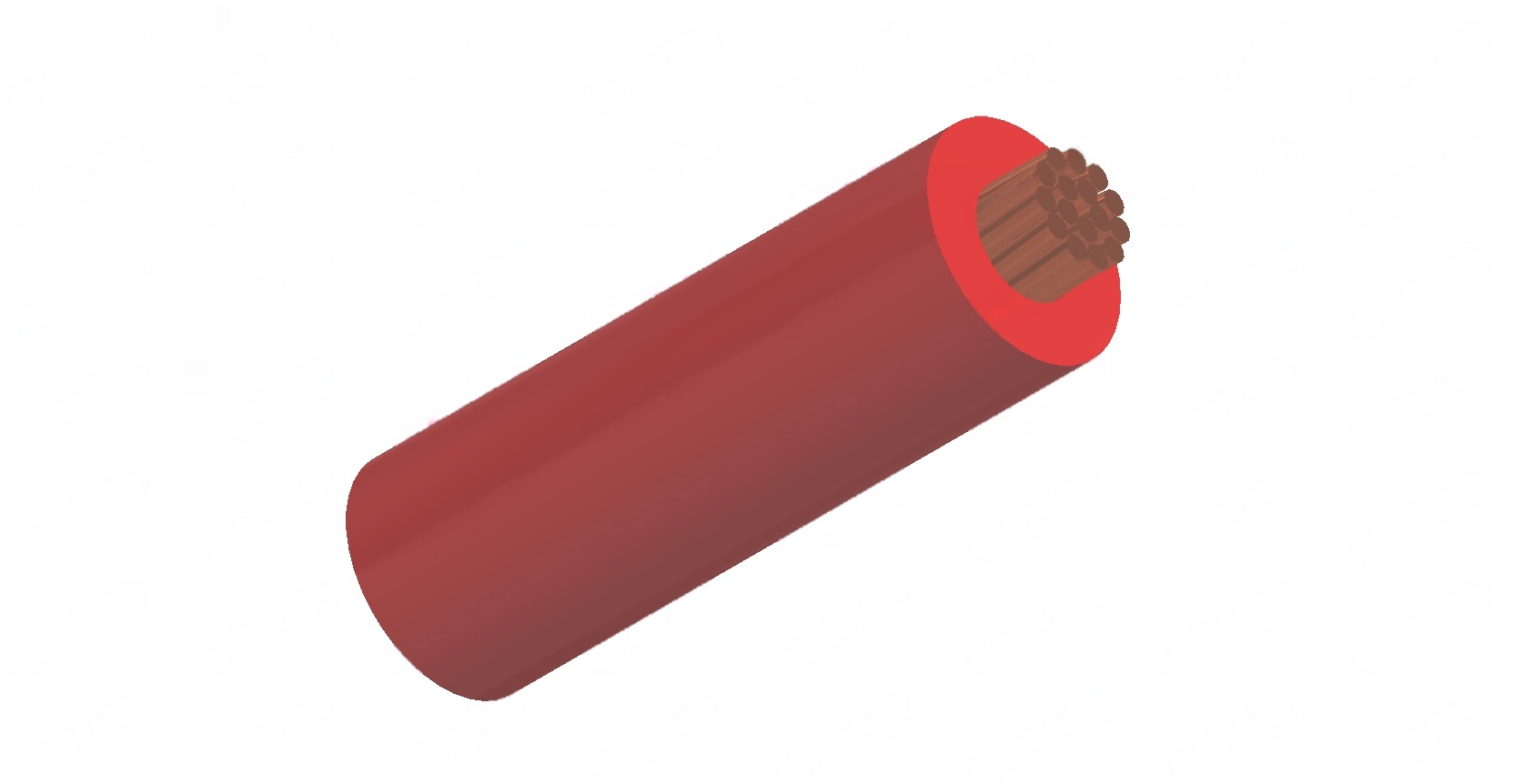

Construction

Fine tinned copper strands

Strands to VDE-0295 Class-5, IEC 60228 Cl-5

Silicone core insulation

Cores to VDE-0293 colors on chart

Technical

Working voltage : 300/500 volts

Test voltage : 2000 volts

Bending Radius : 15 x Ø

Temp range : -50°C to +180°C

Short time temp up to +220°C

Flame retardant : IEC 60332.1

Insulation resistance : 20 MΩ x km

Properties

Advantages

High ignition or flash point

Resistant to

High molecular oils, fats from vegetables and animals, alcohols, plasticizers and clophenes, diluted acids, lye and salt dissolution, oxidation substances, tropical influences and weather, lake water, oxygen

Halogen-free

According to DIN VDE 0482 part 267/ EN 50267-2-1/ IEC 60754-1 (equivalent DIN VDE 0472 part 815)

Behavior in fire

No flame propagation

Test according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)

For laying as a fixed installation only in open or ventilated pipe systems as well as in ducts. Otherwise the mechanical properties of the silicon are reduced by the enclosed air at temperatures exceeding 90°C.
