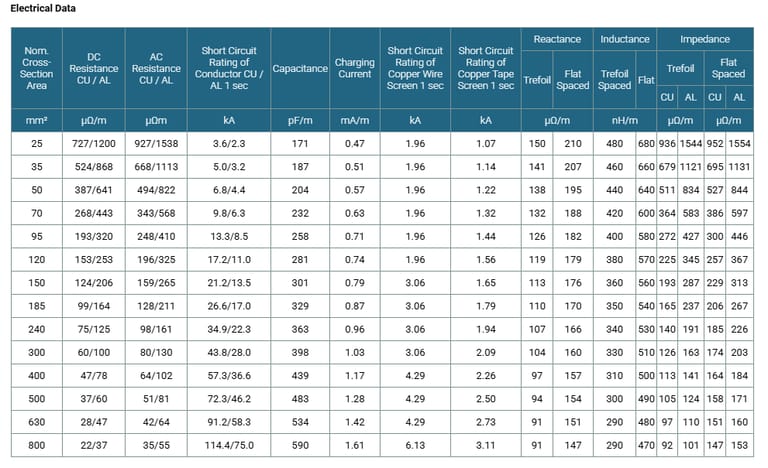

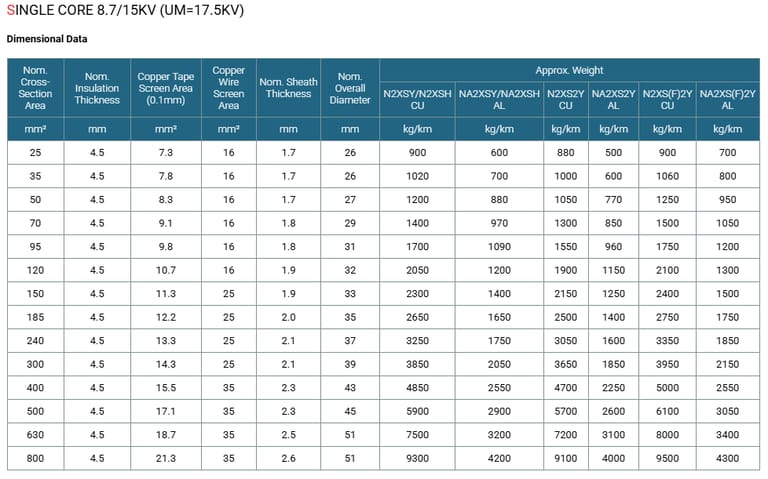

Single Core Cables to VDE 0276

Application

The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.6/6KV to 18/30KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Standards

DIN VDE 0276 Part 620-622

HD 620 S1

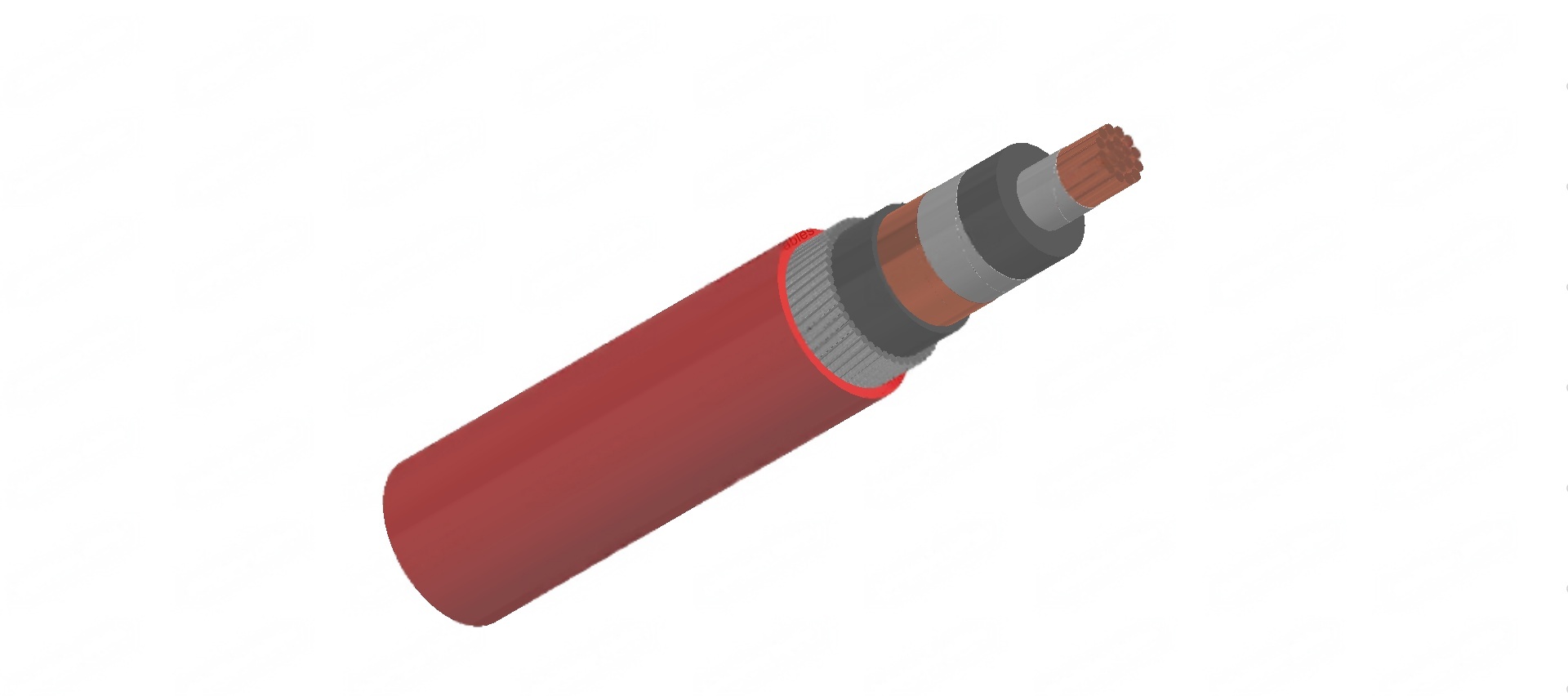

Construction

Conductor : Stranded compacted circular copper or aluminium conductors according to IEC 60228 class 2 / VDE 0276 class 2 / VDE 0295 HD 383. All internal interstices of the conductor are filled with water blocking compound to prevent ingress of water through conductor during storage, handing, installation and operation of the cable.

Conductor Screen : The conductor screen consists of an extruded layer of non metallic, semi-conducting compound firmly bonded to the insulation to exclude all air voids. The screen has a minimum thickness of 0.3mm and the maximum volume resistivity of 500 Ohm-m at 90°C.

Insulation : Insulation is of extruded XLPE compound type 2XI1 according to DIN VDE 0207 part 22 and HD 620.1 with high degree of cross-linking, free from contaminants, air voids and heat resistant by dry cured process.

The nominal insulation wall thickness is shown in table 1.

Table 1. Insulation Thickness

Nom. Cross Section Area of Conductor

Insulation Thickness at Nom. Voltage

3.6/6KV(Um=7.2KV)

6/10KV(Um=12KV)

8.7/15KV(Um=17.5KV)

12/20KV(Um=24KV)

18/30KV(Um=36KV)

mm²

mm

mm

mm

mm

mm

35

2.5

3.4

4.5

5.5

-

50

2.5

3.4

4.5

5.5

8.0

70

2.5

3.4

4.5

5.5

8.0

95

2.5

3.4

4.5

5.5

8.0

120

2.5

3.4

4.5

5.5

8.0

150

2.5

3.4

4.5

5.5

8.0

185

2.5

3.4

4.5

5.5

8.0

240

2.6

3.4

4.5

5.5

8.0

300

2.8

3.4

4.5

5.5

8.0

400

3.0

3.4

4.5

5.5

8.0

Insulation Screen : The insulation screen consists of extruded non metallic, semi-conducting compound extruded over the insulation. The extruded semi-conducting layer shall consist of bonded or cold strippable semi-conducting compound capable of removal for jointing or terminating.The minimum thickness is 0.3mm and the maximum volume resistivity of 500 Ohm-m at 90°C. The screen is tightly fitted to the insulation to exclude all air voids and can be easily hand stripped on site.

Conducting Water Blocking Layer : The insulation screen may be coverd by semiconductive water blocking tape which will swell up under the influence of moisture of water to ensure longitudinal watertightness.

Metallic Layer : The metallic layer shall consist of either copper tapes or a concentric layer of copper wires or a combination of tapes and wires. The metallic layer provides an earth fault current path, capable of withstanding fault current to earth of 1000A for one second at maximum temperature 160°C. Copper wires are applied over the conducting water blocking layer with a minimum diameter of 0.5mm. As an alternative, copper tape(s) with minimum thickness of 0.1mm can be applied with overlap. Total cross section of copper wire screen and copper tape screen layer are shown in Table 2a and 2b.

Table 2a. Total Cross Section and Max. DC Resistance of Copper Wire Screen

Nominal Cross-Section of Cables

Total Cross Section

Max. DC Resistance of Copper Wire Screen at 20℃

3.6/6KV (Um=7.2KV)

6/10KV (Um=12KV)

8.7/15KV (Um=17.5KV)

12/20KV (Um=24KV)

18/30KV (Um=36KV)

mm²

mm²

Ω

70

16

16

16

16

16

1.19

95

16

16

16

16

16

1.19

120

16

16

16

16

16

1.19

150

25

25

25

25

25

0.759

185

25

25

25

25

25

0.759

240

25

25

25

25

25

0.759

300

25

25

25

25

25

0.759

400

35

35

35

35

35

0.271

500

35

35

35

35

35

0.217

630

35

35

35

35

35

0.271

Table 2b. Total Cross Section and Max. DC Resistance of Copper Tape Screen (0.1mm)

Nominal Cross-Section of Cables

Total Cross Section & Max. DC Resistance

3.6/6KV (Um=7.2KV)

6/10KV (Um=12KV)

8.7/15KV (Um=17.5KV)

12/20KV (Um=24KV)

18/30KV (Um=36KV)

Total Cross Section

Max. DC Resistance at 20℃

Total Cross Section

Max. DC Resistance at 20℃

Total Cross Section

Max. DC Resistance at 20℃

Total Cross Section

Max. DC Resistance at 20℃

Total Cross Section

Max. DC Resistance at 20℃

mm²

mm²

Ω

mm²

Ω

mm²

Ω

mm²

Ω

mm²

Ω

70

7.4

2.314

8.2

2.106

9.1

1.897

9.9

1.740

11.9

1.442

95

8.2

2.095

8.9

1.923

9.8

1.748

10.7

1.614

12.7

1.354

120

9.0

1.905

9.8

1.761

10.7

1.613

11.5

1.498

13.5

1.272

150

9.7

1.781

10.4

1.655

11.3

1.523

12.1

1.420

14.2

1.215

185

10.6

1.626

11.2

1.540

12.2

1.407

12.9

1.335

14.9

1.153

240

11.7

1.465

12.4

1.388

13.3

1.294

14.1

1.219

16.2

1.065

300

12.9

1.334

13.4

1.285

14.3

1.204

15.1

1.139

17.1

1.003

400

14.3

1.205

14.6

1.178

15.5

1.110

16.3

1.054

18.4

0.937

500

15.7

1.094

16.2

1.061

17.1

1.005

17.5

0.982

20.0

0.861

630

17.3

0.992

18.9

0.912

18.7

0.918

19.5

0.880

21.6

0.797

Separator / Water Blocking Layer : The metallic screen may be covered by non-conducting water blocking tape which will swell up under the influence of moisture of water to ensure longitudinal watertightness.

Separation Sheath (for armoured cable) : The separation sheath comprises a layer of extruded PVC, PE or LSZH, applied under the armour. Thickness of separation sheath as shown in table 3.

Table 3. Separation Sheath Thickness

Core Diameter

Approx.Thickess of Inner Sheath

mm

mm

>

<



35

45

1.4

45

60

1.6

60

80

1.8

80

-

2.0

Armour (for armoured cable) : The armour consists of round aluminium wire armour applied helically over an extruded separation sheath.
