Single Core Double Insulated Flexible Power and Welding Cable, 0.6/1kV
Application
These cables are used for fixed power applications, can be used in power applications,such as switchboards, busbars, transformers, welding applications ,like E and electrode leads,and automotive applications for jumper leads, battery chargers.
Standard
AS/NZS 5000.1
AS1995
AS/NZS 1125
AS3808

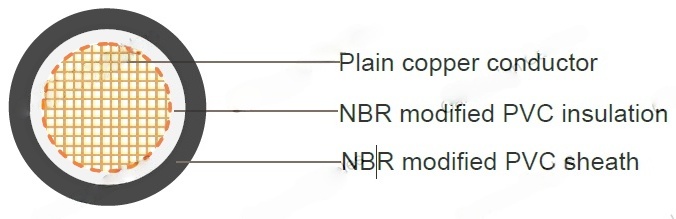

Construction
Conductor | Nominal 0.2mm stranded flexible plain copper wire to AS 1125 |
Insulation | Nitrile (NBR) Modified PVC to comply with AS3808 V90HT |
Insulation Colour: | White |
Sheath: | Nitrile (NBR) Modified PVC to comply with AS3808 V90HT |
Sheath Colours: | Orange, Black - other colours available by request |
Technical Characteristics
Conductor Size | Electrical | Current Ratìng' AMPS 2 single cores | Voltage Orop mV 1Am at Max operatíng Temperature | |
|---|---|---|---|---|
mm^2 | Ohm/km | Single Phase | Three Phase | |
10 | 1.910 | 69 | 4.45 | 3.86 |
16 | 1.210 | 92 | 2.80 | 2.43 |
25 | 0.780 | 125 | 1.78 | 1.54 |
35 | 0.554 | 155 | 1.29 | 1.12 |
50 | 0.386 | 185 | 0.96 | 0.83 |
70 | 0.272 | 240 | 0.62 | 0.59 |
95 | 0.206 | 295 | 0.51 | 0.44 |
120 | 0.161 | 345 | 0.41 | 0.36 |
Cable Parameter
Conductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|---|
mm^2 |
| mm | mm | mm | mm | kg/100m |
1.0 | 322/0.2 | 1.0 | 1.4 | 9.1 | 14.42 | |
1.0 | 511/0.2 | 1.0 | 1.4 | 10.1 | 20.16 | |
1.2 | 784/0.2 | 1.2 | 1.4 | 11.8 | 29.14 | |
1.2 | 1120/0.2 | 1.2 | 1.4 | 13.1 | 38.96 | |
1.4 | 1568/0.2 | 1.4 | 1.4 | 14.9 | 52.84 | |
1.4 | 2240/0.2 | 1.4 | 1.5 | 17.0 | 72.34 | |
1.6 | 3040/0.2 | 1.6 | 1.5 | 19.3 | 96.18 | |
1.6 | 3800/0.2 | 1.6 | 1.6 | 20.8 | 117.86 |
