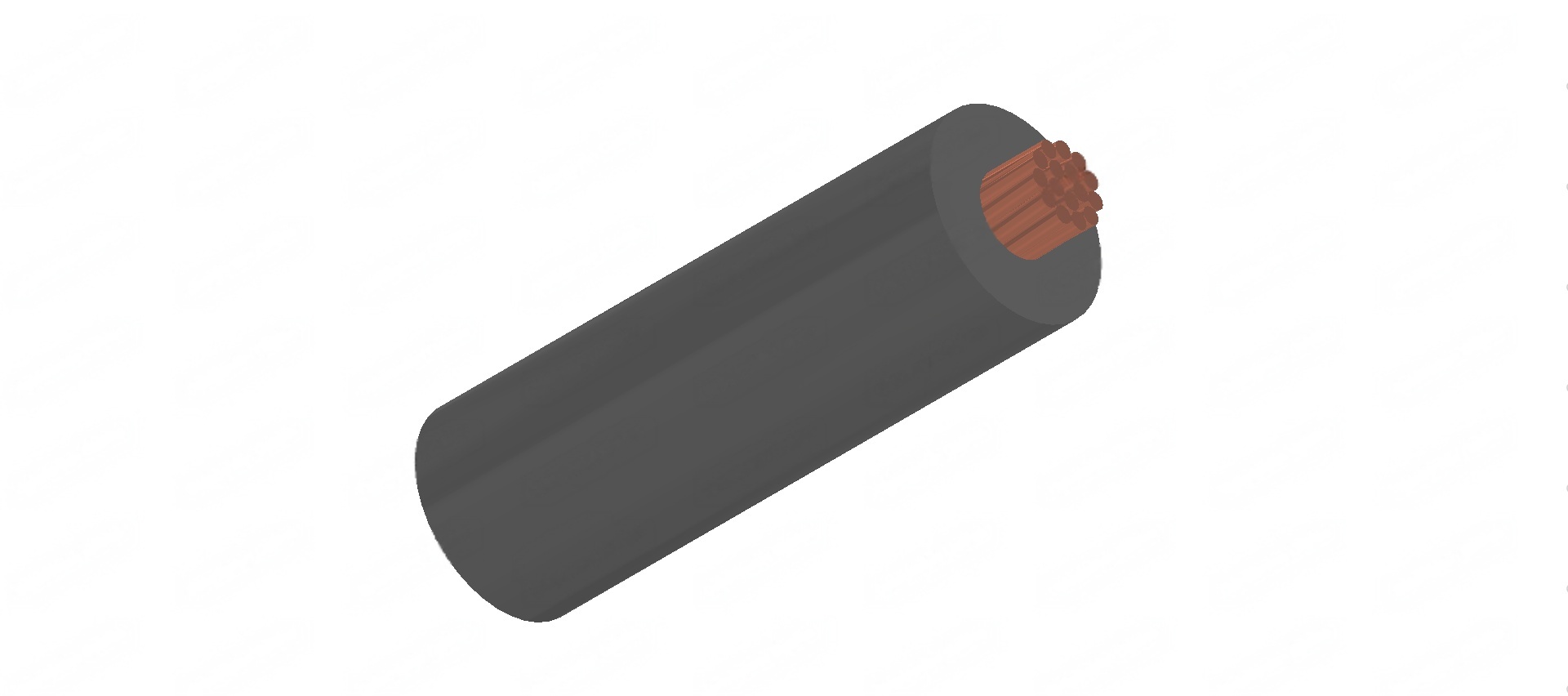

Single Core V90HT 0.6/1kV
Application
These cables are for electrical Interconnections.
Standard
AS 3191
AS1125
AS3808
Construction
Conductor | Tinned copper wire (TCW) or plain copper wire (PCW) to AS1125 |
Insulation | V90HT PVC AS3808 |
Colours: | Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Grey |
Technical Characteristics
Conductor Size | Electrical Resistance @20.C | Electrical Resistance @20.C | AMP Rating |
|---|---|---|---|
mm^2 | |||
0.5 | 40.1 | 39 | 3 |
0.75 | 26.7 | 26 | 7.5 |
1 | 20 | 19.5 | 10 |
1.5 | 13.7 | 13.3 | 15 |
2.5 | 8.2 | 8 | 20 |
4 | 5.1 | 5 | 25 |
Cable Parameter
Conductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|
mm^2 |
| mm | mm | mm | kg/100m |
1 | 16/0.2 | 0.8 | 2.6 | 1.1 | |
1 | 24/0.2 | 0.8 | 2.8 | 1.4 | |
1 | 32/0.2 | 0.8 | 3 | 1.7 | |
1 | 30/0.25 | 0.8 | 3.3 | 2.2 | |
1 | 50/0.25 | 0.9 | 3.95 | 3.5 | |
1 | 56/0.3 | 1 | 4.75 | 5.3 |
