Submersible Cable For Drinking Water (Round)
Application
These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water.
Standard
DIN VDE 0282, part 16
DIN VDE 0295
IEC 60228
DIN VDE 0298
DIN VDE 0472

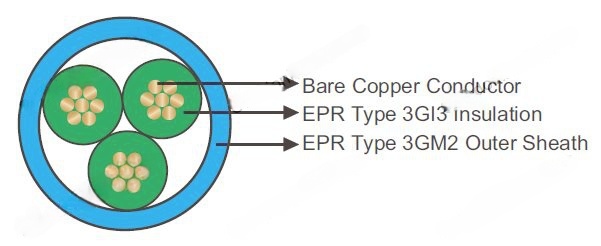

Construction
Conductor | Bare copper stranded class 5 to VDE0295, IEC 60228 |
|---|---|
Insulation | EPR type 3GI3 |
Outer Sheath | EPR type 3GM2, coloured blue. |
Technical data
Test Voltage | 50Hz, 5 min: 2500V |
|---|---|
Rated Voltage | 450/750V |
Maximum admissible conductor | 90°C |
Short Circuit Temperature | 250°C |
Temperature Range | -40°C~+60°C |
Dimension and Weight
No. of Cores × Cross | Outer Diameter | Net Weight | |
|---|---|---|---|
Min. Value mm | Max. Value mm | ||
1 x 1.5 | 5.8 | 7.2 | 54 |
1 x 2.5 | 6.4 | 8.0 | 76 |
1 x 4 | 7.4 | 9.0 | 105 |
1 x 6 | 8.0 | 11.0 | 135 |
1 x 10 | 9.8 | 12.5 | 200 |
1 x 16 | 11.0 | 14.5 | 290 |
1 x 25 | 12.5 | 16.5 | 410 |
1 x 35 | 14.0 | 18.5 | 560 |
1 x 50 | 16.5 | 21.0 | 740 |
1 x 70 | 18.5 | 23.5 | 1000 |
1 x 95 | 21.0 | 26.0 | 1300 |
1 x 120 | 23.5 | 28.5 | 1650 |
1 x 150 | 26.0 | 31.5 | 2000 |
1 x 185 | 27.5 | 34.5 | 2500 |
1 x 240 | 30.5 | 38.0 | 3100 |
1 x 300 | 33.5 | 41.5 | 3700 |
2 x 1.5 | 9.0 | 11.5 | 130 |
2 x 2.5 | 10.5 | 13.5 | 190 |
2 x 4 | 12.0 | 15.0 | 260 |
2 x 6 | 13.5 | 18.5 | 350 |
2 x 10 | 18.5 | 24.0 | 550 |
2 x 16 | 21.0 | 27.5 | 900 |
2 x 25 | 25.0 | 31.5 | 1300 |
3 x 1.5 | 9.6 | 12.5 | 150 |
3 x 2.5 | 11.5 | 14.5 | 220 |
3 x 4 | 13.0 | 16.0 | 340 |
3 x 6 | 14.5 | 20.0 | 480 |
3 x 10 | 20.0 | 25.5 | 750 |
3 x 16 | 22.5 | 29.5 | 1100 |
3 x 25 | 26.5 | 34.0 | 1450 |
3 x 35 | 29.5 | 38.0 | 2100 |
3 x 50 | 34.5 | 44.0 | 2800 |
3 x 70 | 39.0 | 49.5 | 3800 |
3 x 95 | 44.0 | 54.6 | 4600 |
3 x 120 | 47.5 | 59.0 | 5400 |
4G1.5 | 10.5 | 13.5 | 190 |
4G2.5 | 12.5 | 15.5 | 280 |
4G4 | 14.5 | 18.0 | 390 |
4G6 | 16.5 | 22.0 | 520 |
4G10 | 22.5 | 24.5 | 950 |
4G16 | 26.5 | 28.5 | 1400 |
4G25 | 32.0 | 34.0 | 1950 |
4G35 | 33.0 | 42.5 | 2700 |
4G50 | 38.0 | 48.5 | 3600 |
4G70 | 43.0 | 54.5 | 4900 |
4G95 | 50.0 | 60.5 | 6200 |
4G120 | 53.0 | 65.5 | 7200 |
5G1.5 | 11.5 | 15.0 | 230 |
5G2.5 | 13.5 | 17.0 | 340 |
5G4 | 16.0 | 19.5 | 470 |
5G6 | 18.0 | 24.5 | 640 |
5G10 | 24.0 | 30.5 | 1150 |
5G16 | 27.0 | 35.5 | 1700 |
7G1.5 | 16.5 | 17.5 | 370 |
10G1.5 | 18.6 | 19.6 | 460 |
7G2.5 | 18.9 | 19.4 | 510 |
10G2.5 | 21.4 | 21.9 | 650 |
