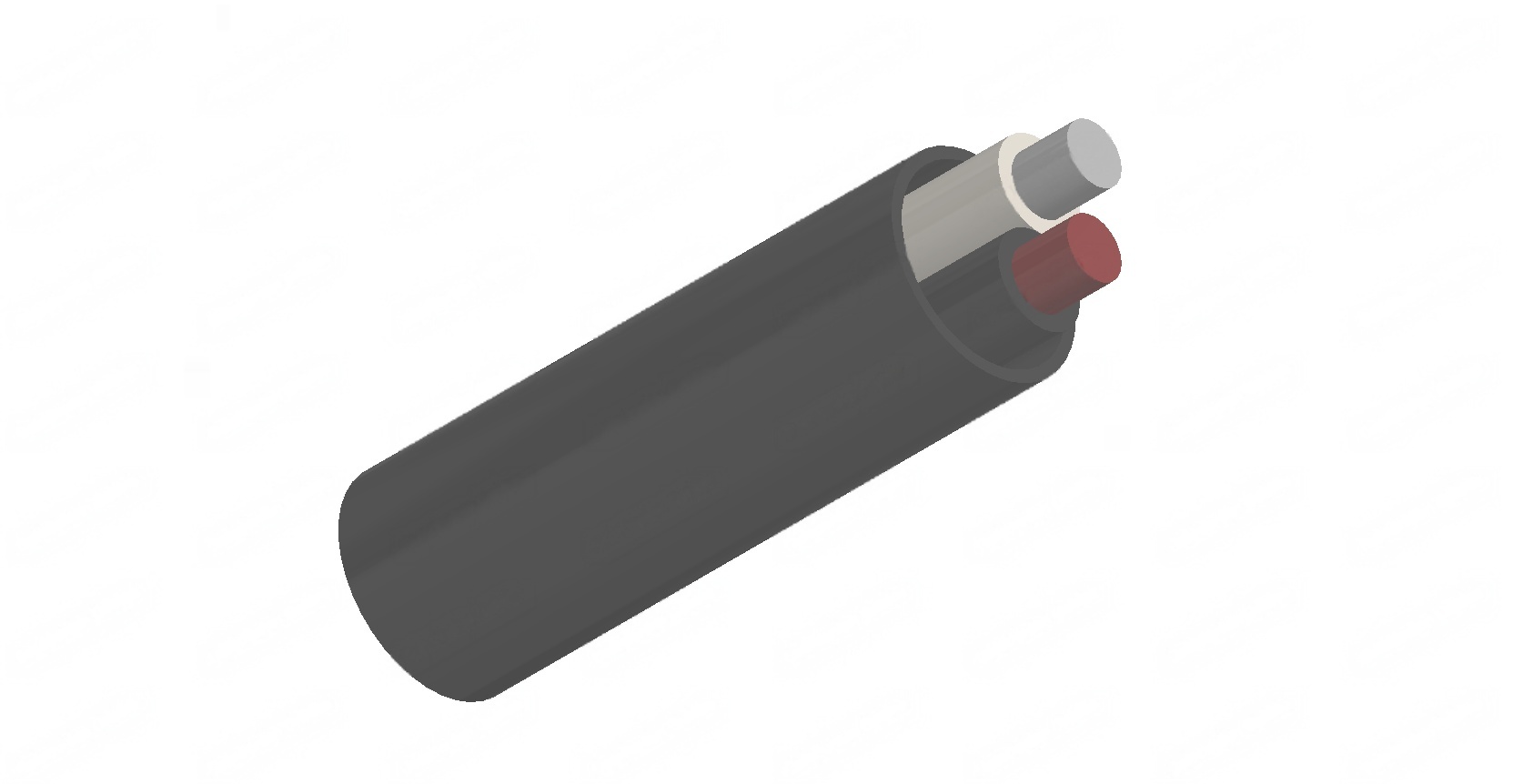

TFE Insulated Thermocouple Wire and Extension Wire

Product application

TFE Thermocouple Wire may be used for aircraft and petroleum processing.

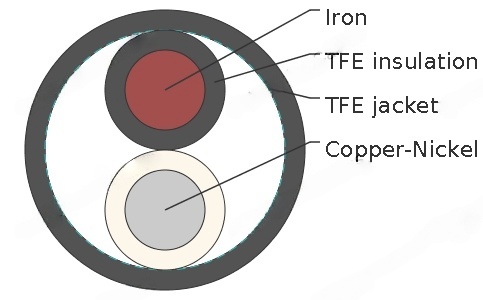

Construction

• Solid or stranded thermocouple wire

• Fused TFE tape insulation

• Parallel conductors

• Flame retardant extruded fluoropolymer TFE jacket

Technical

• Continuous temperature rating:260°C

• Minimum Bend Radius: insulation 3 x cable O

• Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1

• Color Code: Conforms to ANSI, IEC, JIS

Properties

• Excellent abrasion, chemical and moisture resistance

• Service temperature of 260 o C

• Low friction factor when pulled

• Flame retardant; non-propagating in fire conditions

Product specification

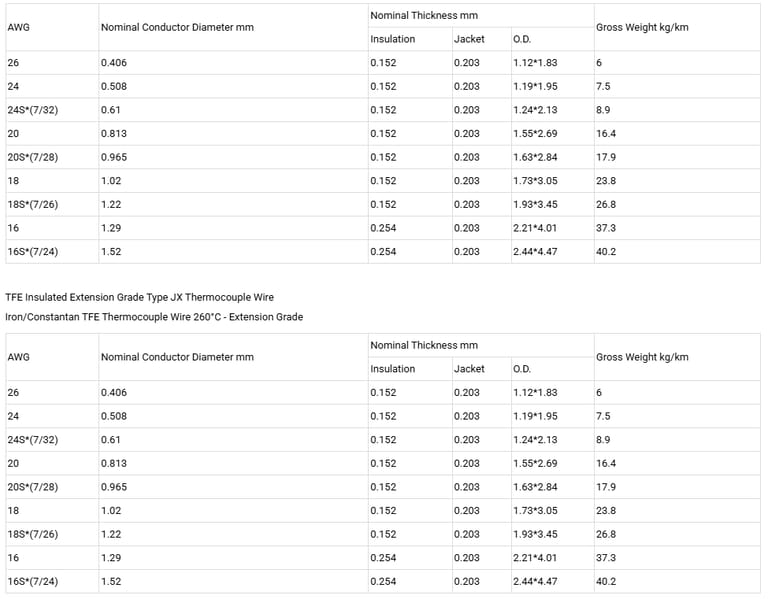

TFE Insulated Type J Thermocouple Wire

Iron/Constantan TFE Thermocouple Wire 260°C
