The Ultimate Guide to NTSKCGERLOEU Medium Voltage Coal Cutter Cables

Introduction

South Africa’s coal mining sector is one of the country’s most critical industrial backbones. Supplying energy for both domestic consumption and export, the mines of Mpumalanga, Limpopo, and KwaZulu-Natal operate deep underground, demanding robust, reliable equipment. In this context, mobile machinery such as coal-cutting machines plays a pivotal role in mechanized operations. Yet, powering these machines is no simple task. High-voltage electrical energy must traverse dynamic, confined underground spaces, often under extreme mechanical stress.

Enter the NTSKCGERLOEU Medium Voltage Coal Cutter Cable — a specialized solution designed to meet these exacting demands. Engineered to withstand the harsh underground mining environment, these cables provide not just electrical connectivity, but also safety, reliability, and compliance with both international and South African standards. For mine operators, selecting the right cable can mean the difference between continuous production and costly downtime.

This article delves deeply into the NTSKCGERLOEU cable: its construction, standards compliance, real-world South African deployments, and maintenance best practices. Whether you’re an electrical engineer, mining technician, or industry observer, this guide provides a detailed look at a cornerstone of modern coal mining operations.

Applications in Mining

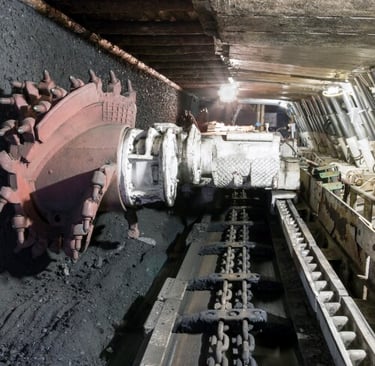

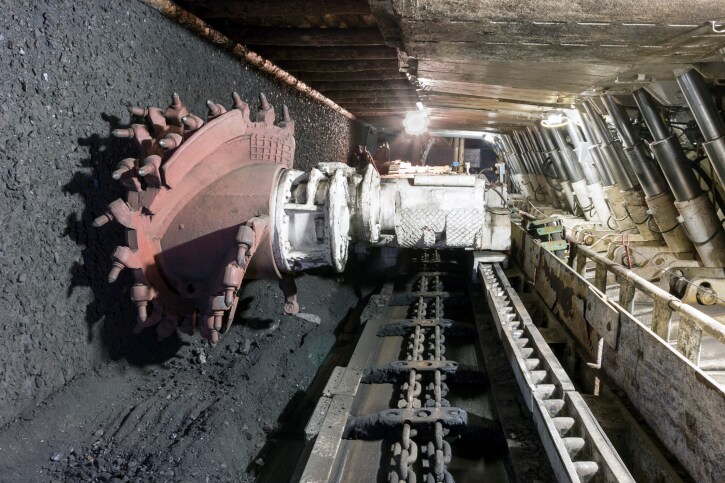

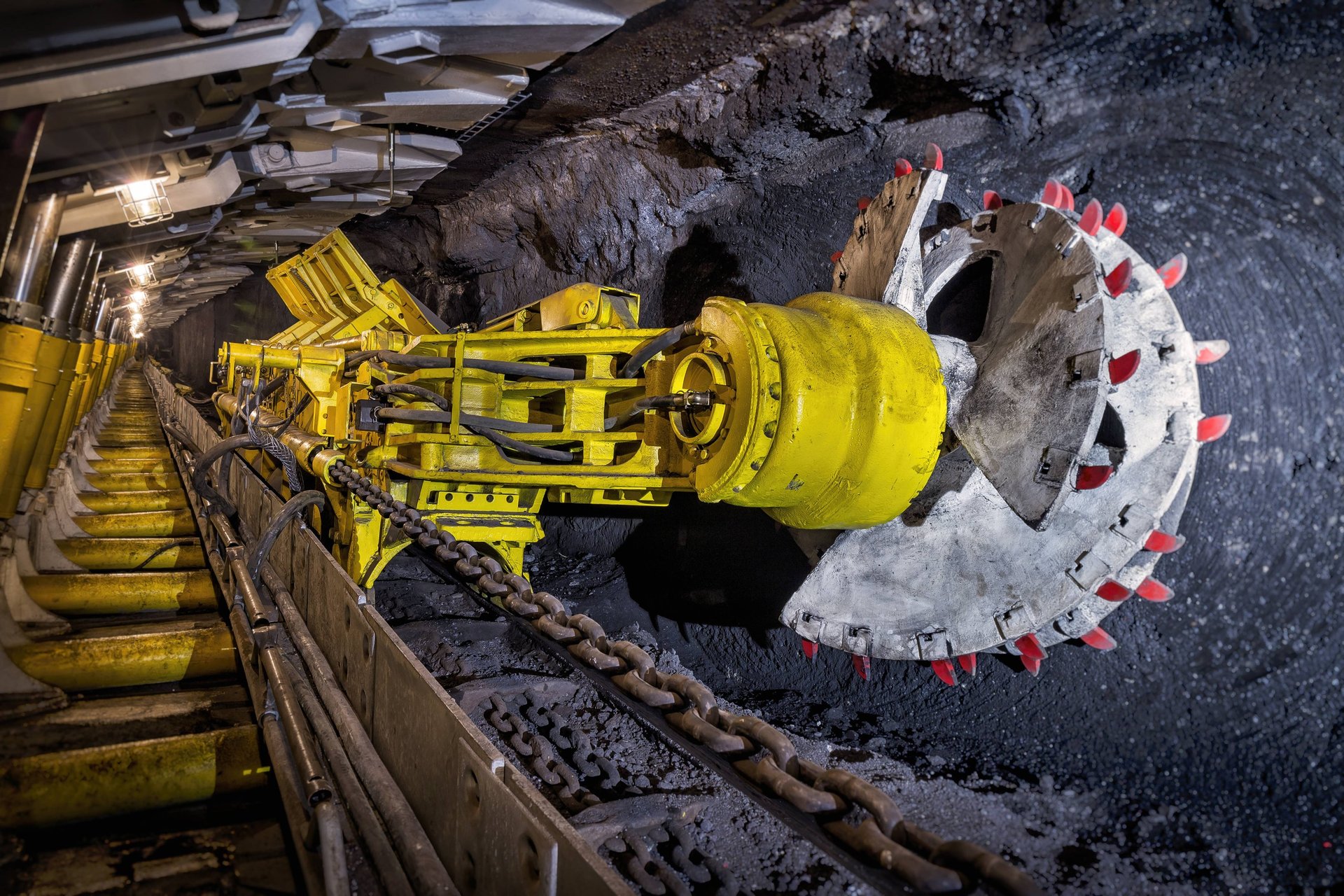

The NTSKCGERLOEU cable is specifically designed for mobile equipment in underground coal mines, most notably coal-cutting machines. These machines operate continuously along coal faces, powered via dynamic electrical connections. The cable must endure bretby chain operations, where extreme bending loads occur under low tensile stress. This means the cable constantly flexes and twists, yet must maintain electrical integrity and mechanical resilience.

Key Applications:

1. Coal-Cutting Machines – The primary application, powering machines that slice through coal seams while moving along tracks or bretby chains.

2. Bretby Chains – These cables handle continuous bending cycles while suspended or rolling along chain systems.

3. Mobile Power Equipment – Occasionally used for shuttle cars, conveyors, and other underground machinery requiring medium-voltage connections.

Case in Point: South African Mines

In the Mpumalanga coalfields, several underground mines rely on 3.6/6kV NTSKCGERLOEU cables for their coal-cutting operations. Engineers report that these cables significantly reduce downtime caused by conductor fatigue, thanks to their flexible stranded conductors and high-resilience insulation. Additionally, mine safety officers appreciate the flame-retardant outer sheath, which aligns with local safety protocols and regulatory expectations.

By providing reliable power delivery even under extreme bending, NTSKCGERLOEU cables enhance operational efficiency, reduce maintenance costs, and, most importantly, protect mine personnel from electrical hazards.

Standards and Compliance

Quality and compliance are non-negotiable in mining. Electrical cables must meet both international standards and local regulatory requirements. The NTSKCGERLOEU cable adheres to VDE 0250 Part 813, a globally recognized standard for medium-voltage mobile mining cables. Compliance with VDE ensures:

• Electrical reliability under continuous bending

• Resistance to heat, abrasion, and mechanical stress

• Long-term operational durability

In South Africa, NRCS (National Regulator for Compulsory Specifications) and SANS (South African National Standards) regulations govern underground electrical installations. NTSKCGERLOEU cables meet these standards, providing peace of mind to mine operators. By combining international best practices with local compliance, these cables offer a dual assurance of safety and performance.

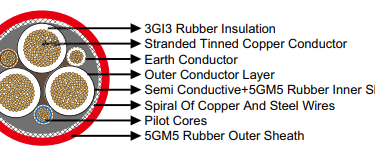

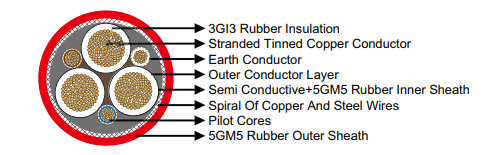

Construction and Design Features

The strength of NTSKCGERLOEU cables lies in their meticulous construction. Every layer is engineered for specific electrical, mechanical, and safety functions.

Conductors

The cable uses flexible stranded tinned copper conductors, chosen for:

• High conductivity

• Resistance to corrosion in moist underground environments

• Exceptional flexibility for repeated bending cycles

This flexibility is particularly important for bretby chain applications, where rigid conductors could fail prematurely.

Insulation

The insulation is heat-resistant 3GI3 rubber based on EPR (Ethylene Propylene Rubber). Key properties include:

• High thermal resistance for continuous medium-voltage operation

• Elasticity to accommodate bending without cracking

• Electrical insulation to prevent short circuits and leakage currents

EPR is a gold standard in medium-voltage mining cables, combining durability with safety.

Outer Conductor Layer (3.6/6kV only)

The easy-strippable conductive layer simplifies installation and maintenance. This layer ensures effective electrical contact while allowing technicians to terminate the cable quickly without compromising performance.

Pilot Cores

These small auxiliary cores, made from copper/steel conductors with EPR insulation, handle expansion and compression. They support monitoring, signaling, or control functions and maintain integrity under continuous bending.

Earth Conductor

A spiral of tinned copper wires with conductive tape ensures robust grounding. Underground mines are electrically hazardous environments; a reliable earth conductor is crucial to prevent electrocution and equipment damage.

Inner Sheath

The two-layer inner sheath combines semi-conductive rubber and Rubber type 5GM5, providing:

• Electrical stability

• Mechanical reinforcement

• Resistance to abrasion from internal components

This layer also stabilizes the cable’s internal geometry, preventing conductor movement under stress.

Armour

Spiral steel wires embedded in the outer sheath protect against mechanical damage, crushing, and abrasion. A fiberglass tape prevents sheath exchange, preserving structural integrity during repeated bending cycles.

Outer Sheath

The final protective layer, Rubber type 5GM5, is:

• Abrasion and tear-resistant

• Oil-resistant

• Flame-retardant

This ensures the cable survives harsh underground conditions while maintaining compliance with South African mining safety regulations.

Dimensions, Weight, and Electrical Specifications

NTSKCGERLOEU cables come in two main voltage ratings: 1.8/3kV and 3.6/6kV, with various cross-sectional sizes.

Impact on Operations: Choosing the right cross-sectional size is critical. A cable that is too small can overheat, while an oversized cable may be difficult to handle along bretby chains. South African mines often favor 3.6/6kV 3×95 mm² or 3×120 mm² cables for high-power coal cutters, balancing durability, weight, and flexibility.

Maintenance and Handling Tips

Proper handling and maintenance extend cable life and ensure safety. Key recommendations include:

• Minimum Bending Radius: Follow manufacturer specifications to avoid conductor or insulation damage.

• Regular Inspections: Check for cracks, abrasion, or deformation every three months.

• Cleaning and Storage: Keep cables free of dust, coal dust, and moisture when not in use.

• Installation Guidelines: Avoid sharp edges and excessive tension during deployment along bretby chains.

By integrating these practices, mines can maximize cable lifespan and reduce unexpected operational interruptions.

Common Questions (FAQ)

1. Can NTSKCGERLOEU cables handle extreme bending in tight underground spaces?


   Yes. Flexible stranded conductors and high-quality insulation allow repeated bending without compromising electrical performance.

2. What is the maximum operating voltage and temperature range?


   Voltage ratings are 1.8/3kV and 3.6/6kV, with heat-resistant insulation capable of handling typical underground mining temperatures.

3. How do these cables compare to other medium-voltage mining cables?


   NTSKCGERLOEU cables offer superior flexibility, abrasion resistance, and flame retardancy compared to older rubber-insulated or PVC cables.

4. How to identify wear, abrasion, or mechanical damage in the field?


   Look for cracks, cuts, exposed conductors, deformation, or discoloration. Regular inspections are critical.

5. Are these cables compatible with existing South African coal-cutting machines?


   Yes. They are designed to fit standard bretby chains and mobile coal-cutting equipment.

6. Can damaged sections be repaired or must the entire cable be replaced?


   Minor outer sheath damage can sometimes be repaired, but any conductor damage usually requires full replacement for safety.

Advantages and Industry Impact

Key Advantages:

• Superior Flexibility: Handles continuous bending and twisting without conductor breakage

• Mechanical Resilience: Steel wire armor protects against crushing and abrasion

• Safety: Flame-retardant, oil-resistant, and compliant with SANS/NRCS standards

• Durability: Long service life reduces downtime and maintenance costs

By combining these attributes, NTSKCGERLOEU cables support the productivity, safety, and efficiency of South Africa’s mechanized coal mining sector.

Conclusion

The NTSKCGERLOEU Medium Voltage Coal Cutter Cable is more than a power conductor—it is a vital lifeline for underground coal mines. Its advanced design, adherence to international standards, and proven performance in South African operations make it a trusted choice for coal-cutting machines operating in challenging environments.

Investing in high-quality medium-voltage cables like NTSKCGERLOEU ensures safety, operational efficiency, and long-term cost savings. As South Africa’s coal mining industry continues to mechanize and expand, the role of reliable, durable, and safe cables will only grow in importance. For engineers, mine operators, and safety managers, understanding and deploying these cables is a cornerstone of modern mining excellence.
