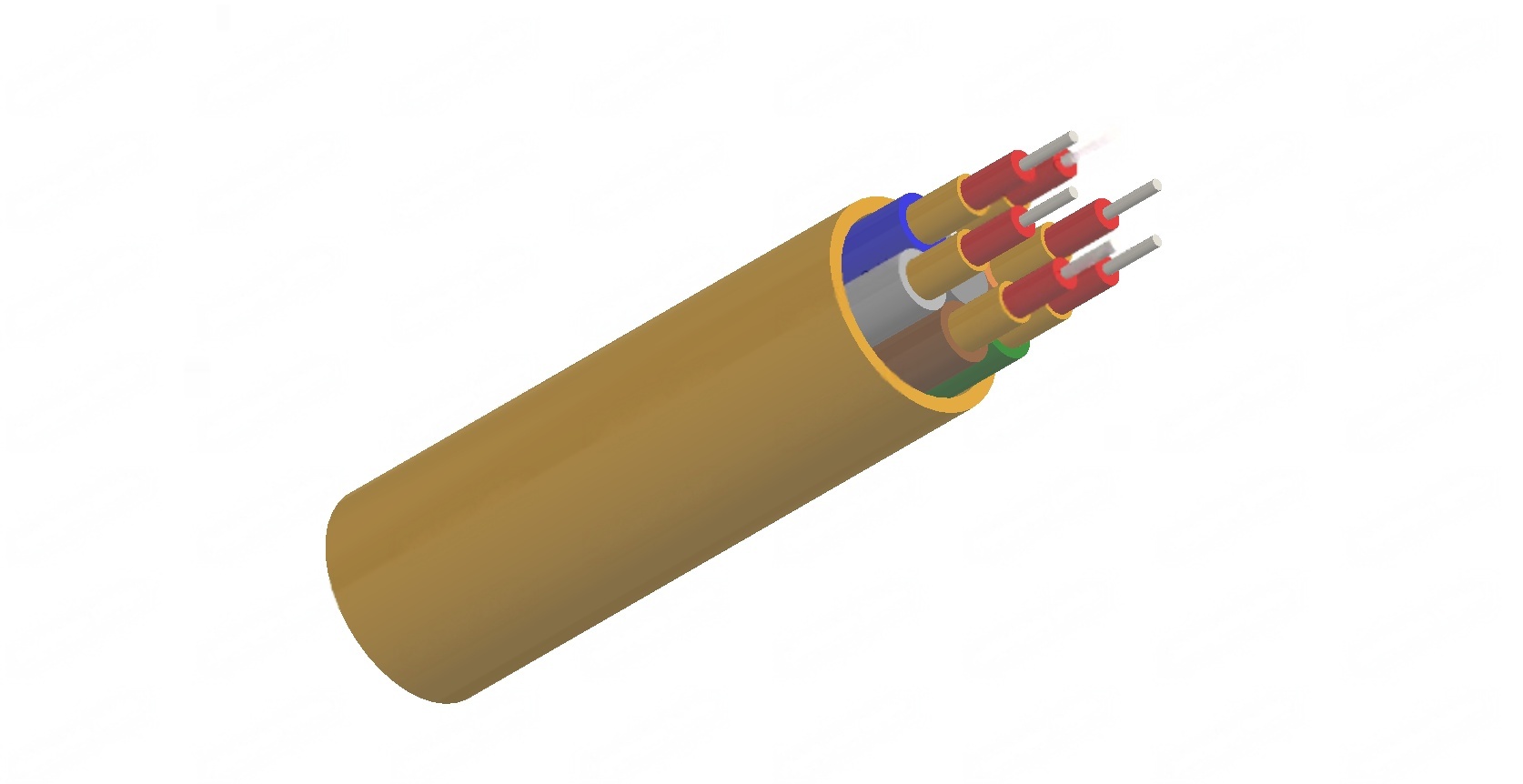

Tight Buffer Breakout PVC/LSZH Jacketed Cable
Application
Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
Description
The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.
Construction
Fiber Count | Nominal Weight(kg/km) | Nominal Weight(lb/kft) | Nominal Outer Diameter(mm) | Nominal Outer Diameter(in) | Maximum Pulling Load | |
Installation(N/Ib) | In Service(N/Ib) | |||||
50．0 | 33．56 | 5．5 | 0．217 | 1200/270 | 490/100 | |
110．0 | 73．83 | 12．5 | 0．493 | 2000/450 | 800/180 | |
160．0 | 107．38 | 13．0 | 0．512 | 3515/790 | 1200/270 | |
230．0 | 154．36 | 15．5 | 0．611 | 5470/1230 | 2000/450 | |
Physical Properties
Mechanical Properities
Minimum Bending Radius: |
| Maximum Compressive Load: | 3000N for unarmoured |
Under installation: | 20×OD |
| 5000N for armoured |
During operation | 10×OD for unarmoured cables | Repeated Impact: | 2.9 N.m (J) 3×2 impacts |
| 10×OD for unarmoured cables | Twist (Torsion): | 180×10 times, 125×OD |
Temperature Range: |
| Cyclic Flexing: | 25 cycles for armoured cables. |
Operating Temperature Range: | -40℃(-40℉) to +70℃(+158℉) |
| 100 cycles for unarmoured cables. |
Storage Temperature Range: | -50℃(-58℉) to +70℃(+158℉) | Crush Resistance: | 1750N/cm (1000lb/in) |
Fiber Compliance
Temperature Cycling | IEC60794-1-2-F2 |
Safety Compliance
General Purpose Grade | Flammability Test: OFN (UL1581) |
Riser Grade | Flammability Test: OFNR/FT4 (UL1666) |
Plenum Grade | Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grade | Flammability Test: IEC60332-1 |
LSZH Grade | Halogen Content Test: IEC 60754-1 |
LSFROH Grade | Halogen Content Test: IEC 60754-1 |
FR Grade | Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Standard Compliance
GR409-CORE TIA/EIA 568B.3 ICEA-S - 83-596
Features
Most rugged and "user friendly" cable design for Local Area Networks
For installations where ease of termination and termination costs are important factors
Short and moderate distance links between buildings or within a building, where multiple termination points are needed
Breakout cables are designed for direct termination with standard connectors
Cable ideal for direct pulling with wire mesh grips
Suitable for both indoor and outdoor use -- no need to for splicing at the building entrance
Flame-retardant or LSZH version for indoor installations
Fungus-resistant, water-resistant, and UV-resistant for outdoor use
High quality tight-buffered coating on each fi ber for environmental and mechanical protection
