Tight Buffer PVC/LSZH Jacketed Simplex/Duplex Cord
Application
This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.
Description
Simplex

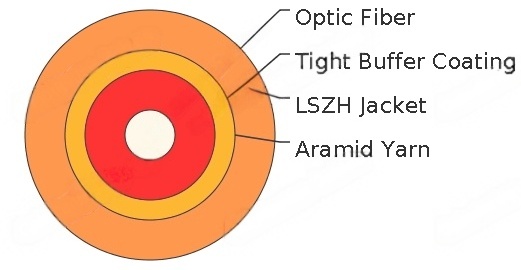

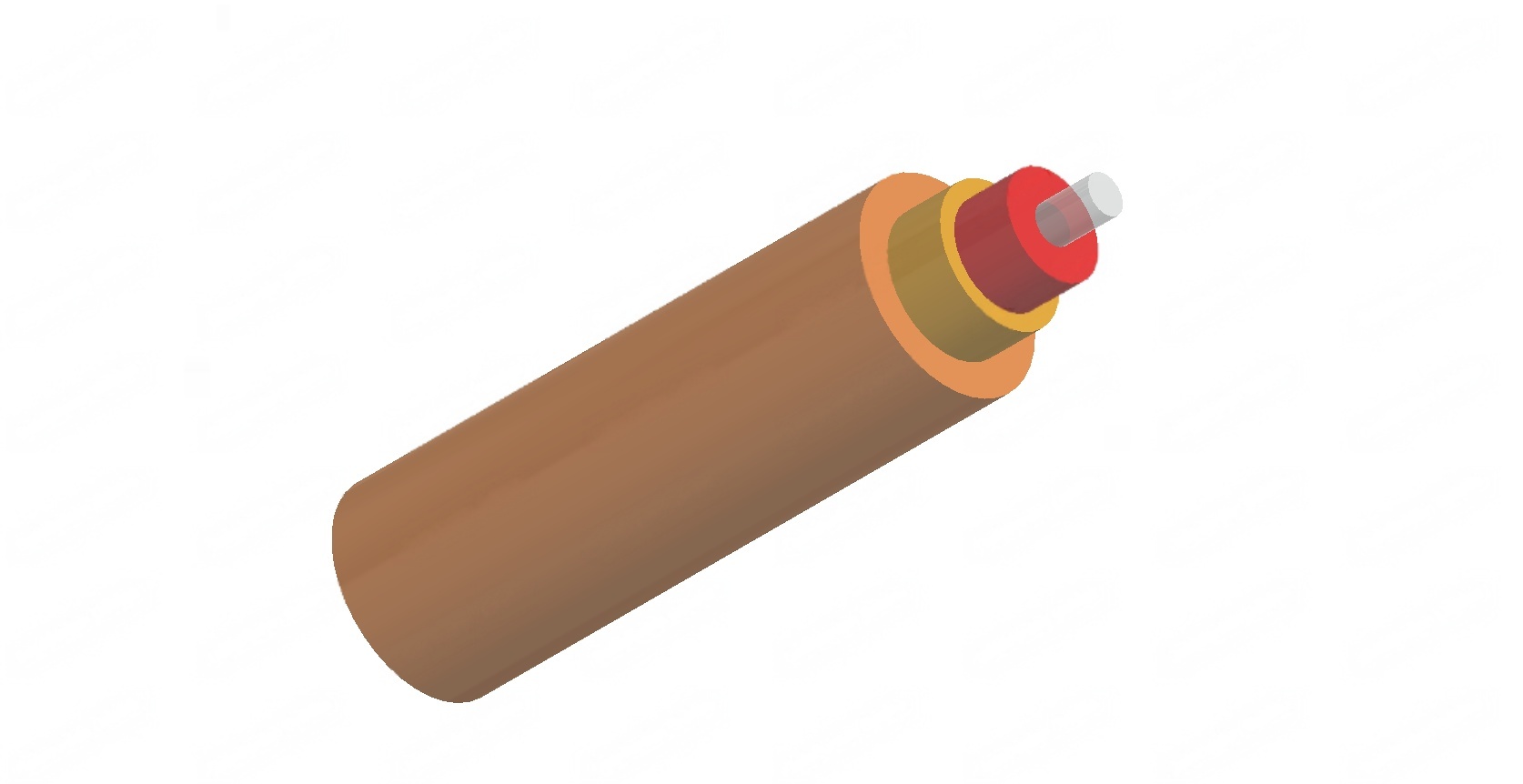

Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Flat
Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Round
Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Zip
Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a Āzipcordā construction. The cable is unconnectorized.
Physical Properties
Fiber Count | Cable Type | Nominal Weight | Nominal Weight | Nominal Outer Diameter | Nominal Outer Diameter | Maximum Pulling Load | |
|---|---|---|---|---|---|---|---|
Installation | In Service | ||||||
|
| kg/km | lb/kft | mm | in | N/Ib | N/Ib |
Simplex 2.0mm | 7.6 | 5.10 | 2.0 | 0.079 | 490/110 | 290/65 | |
Simplex 2.5mm | 7.8 | 5.23 | 2.5 | 0.098 | 490/110 | 290/65 | |
Simplex 2.8mm | 8.0 | 5.37 | 2.8 | 0.110 | 490/110 | 290/65 | |
Simplex 3.0mm | 8.2 | 5.50 | 3.0 | 0.118 | 490/110 | 290/65 | |
2 | Duplex Flat | 28.0 | 18.79 | 4.0X6.8 | 0.157X0.267 | 980/220 | 580/130 |
Duplex Round | 18.4 | 12.35 | 4.2 | 0.165 | 980/220 | 580/130 | |
2 | Duplex Zip | 15.0 | 10.07 | 2.4X4.8 | 0.094X0.188 | 980/220 | 580/130 |
Mechanical Properties
Minimum Bending Radius
Under installation : 20×OD
During operation : 10×OD.
Maximum Compressive Load
2000N
Repeated Impact
2.9 N.m (J) 3×2 impacts
Twist (Torsion)
180×10 times, 125×OD
Cyclic Flexing
25 cycles for armoured cables
100 cycles for unarmoured cables
Crush Resistance
875N/cm (500lb/in)
Temperature Range
Operating Temperature Range : -40℃(-40℉) to +70℃(+158℉)
Storage Temperature Range : -50℃(-58℉) to +70℃(+158℉)
Fiber Compliance
Temperature Cycling | IEC60794-1-2-F2 |
Tensile Strength | IEC60794-1-2-E17 |
Crush | IEC60794-1-2-E3 |
Impact | IEC60794-1-2-E4 |
Repeated Bending | IEC60794-1-2-E6 |
ATorsion | IEC60794-1-2-E |
Kink | IEC60794-1-2-E10 |
Cable Bend | IEC60794-1-2-E11 |
Cool Bend | IEC60794-1-2-E11 |
Safety Compliance
General Purpose Grade | Flammability Test: OFN (UL1581) |
Riser Grade | Flammability Test: OFNR/FT4 (UL1666) |
Plenum Grade | Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grade | Flammability Test: IEC60332-1 |
LSZH Grade | Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 |
LSFROH Grade | Halogen Content Test: IEC 60754-1 Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grade | Fire Resistance Test: IEC 60331 / BS 6387 CWZ |
Standard Compliance
GR409-CORE
TIA/EIA 568B.3
ICEA-S-83-596
Features
Suitable for indoor use, such as routing connections in patching systems
Short "patch cord" cables ideal for links between electronic equipment and fiber panels
Compatible with wide variety of fiber optic connectors
High quality tight-buffer coating on fiber for environmental and mechanical protection
Customized jacket colors available for matching connectors.
Private labeling on the cable outer jacket is also available.
