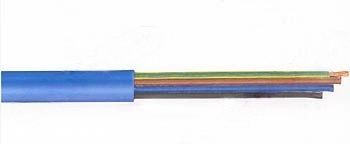

TML Cable Flat - Type A for Process Water, Type B for Drinking Water

Product application

As connection cable for submersible electric motors (pumps) for the permanent use in process and drinking water up to a temperature of 70°C.

Construction

• Fine stranded bare copper conductor

• EPR outer sheath

• EPR insulation

Technical

• Characteristics at 20oC:

• Rated voltage : 600/1000V

• Maximum admissible operating voltage:

• in 1 ph and 3 ph systems : 720 / 1200V

• in D C systems : 1800 V

• conductor resistance to DIN / VDE 0295

• Test voltage 50Hz, 5 min : 2500 V

• Temperature range:

• Maximum admissible conductor

• Temperature in operation 90°C

• Short circuit temperature 250°C

• Fixed : -40oC up to + 80°C

• In motion : -25oC up to + 80°C

• Tensile stress : maximum 15 N each sqmm conductor cross section

Properties

• Adapted to DIN VDE 0250 and DIN VDE 0282

• Excellent insulation properties in water

• Very low water absorption

• Preservation of the mechanical strength

Product specification
