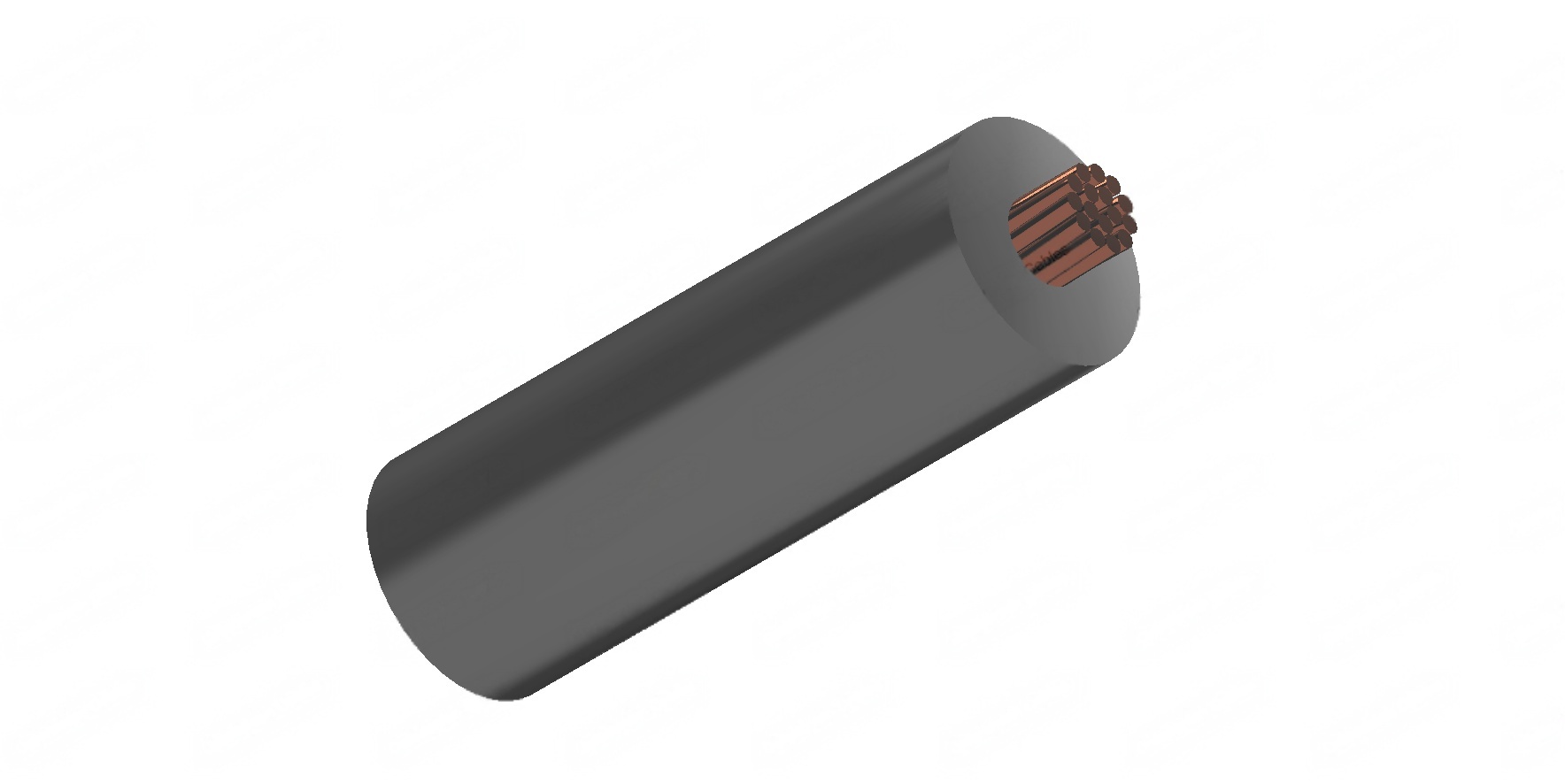

Tri-rated Cable to BS6231
Application and Description
Tri-rated Cable panel wiring is a high temperature, flame retardant cable designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers. Tri-rated Cable is sometimes referred to as BS6231 Cable or Panel Wire.
Cable Construction
- Fine bare copper strands
- Stranding to IEC 60228 CL-5
- PVC TI1(for type BK), TI3 (for type CK) core insulation
Core Identification
Black, Blue, Brown, Red, White, Yellow, Grey, Violet, Pink, Green/Yellow, Other colours are available on request
Technical Characteristics
- Working voltage: 600/1000v
- Minimum bending radius: 6xOverall diameter
- Operating temperature: 0o C to +70o C(for type BK); 0o C to +90o C(for type CK)
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩxkm
Cable Parameter
AWG | No. of Cores x | Nominal | Nominal | Nominal |
20(16/32) | 0.80 | 2.50 | 12 | |
18(24/32) | 0.80 | 2.70 | 15 | |
17(32/32) | 0.80 | 2.95 | 18 | |
16(30/30) | 0.80 | 3.20 | 23 | |
14(50/30) | 0.80 | 3.65 | 34 | |
12(56/28) | 0.80 | 4.20 | 48 | |
10(84/28) | 0.80 | 4.70 | 67 | |
8(80/26) | 1.14 | 6.50 | 119 | |
6(128/26) | 1.52 | 8.00 | 187 | |
4(200/26) | 1.52 | 9.40 | 291 | |
2(280/26) | 1.52 | 10.60 | 406 | |
1(400/26) | 2.02 | 12.90 | 580 | |
2/0(356/24) | 2.02 | 14.60 | 780 | |
3/0(485/24) | 2.02 | 16.10 | 1055 | |
4/0(614/24) | 2.02 | 17.90 | 1175 | |
300 MCM (765/24) | 2.41 | 20.20 | 1425 | |
350 MCM (944/24) | 2.41 | 22.85 | 1735 | |
500MCM(1225/24) | 2.41 | 24.40 | 2310 |
*Cables above 120mm^2 in size are referred to as Bi-rated since the CSA standard applies only to sizes up to and including 120mm^2
