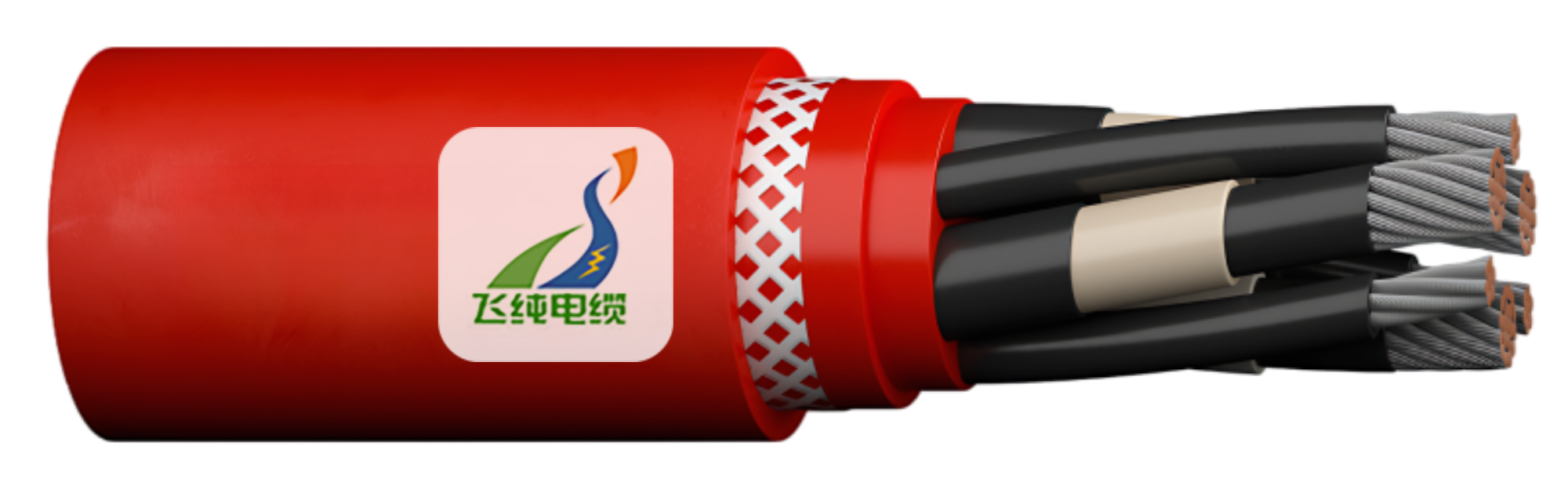

Type 241 1.1 to 11KV Mining Cable AS/NZS 1802
AS/NZS 1802 Type 241 Mining Cable Engineered For Efficiency And Performance In Mining Operations
Applications
These cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.
Standards
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

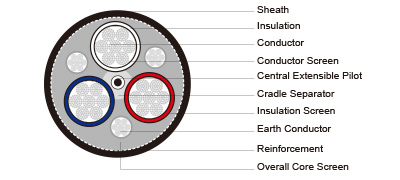

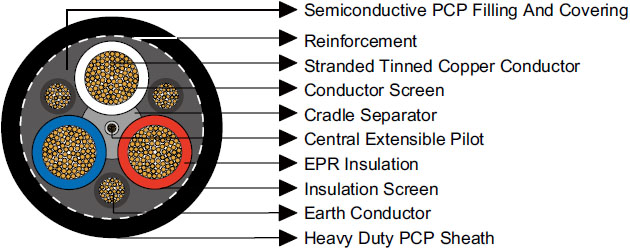

Construction
3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Cradle Separator: Semiconductive PCP.
Overall Core Screen: Semiconductive PCP filling and covering.
3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement: Open-weave braid reinforcement.
Sheath: Heavy duty PCP sheath.
Superior Conductivity
Constructed with high-quality copper conductors for minimal energy loss.
Ensures consistent power delivery to equipment, critical for efficient mining operations.
Enhances machinery performance, reducing downtime and boosting productivity.
Exceptional Durability
Features a robust, abrasion-resistant outer sheath to protect inner conductors.
Built to withstand harsh mining environments, including extreme heat and abrasive surfaces.
Designed for long-lasting performance, minimizing wear and tear in tough conditions.
Versatility Across Applications
Suitable for diverse mining operations, including open-pit mining.
Handles mechanical stress and exposure to elements in demanding environments.
Powers heavy machinery like shovels and drills, ensuring reliable and efficient performance.
