TYPE 241-LED: AS/NZS 1802 Certified Self-Powered Illuminated Mining Cable – The Ultimate Solution for Underground Coal Mining in South Africa

Introduction: The Backbone of Modern Underground Mining

In the complex ecosystem of underground coal mining, the reliability of every component determines the overall efficiency and safety of the operation. Among these critical components, trailing cables serve as the lifeline, delivering the essential electrical power required to drive massive machinery deep underground. As mining technologies evolve and operations extend further from the shaft, the demand for cables that can do more than just conduct electricity has grown significantly.

FeiChun Cable has long been recognized as a specialist in designing and manufacturing cables for the most demanding environments. The TYPE 241-LED represents the pinnacle of this engineering expertise. It is not merely a cable; it is an integrated system designed to address the specific challenges faced by modern mines. This article explores the technical specifications, innovative features, and practical applications that make the TYPE 241-LED the leading choice for mining operations, particularly within the South African context where safety standards and operational reliability are paramount.

The scope of application for this cable is exceptionally broad. It is engineered to handle "all other purposes" within the mining environment, covering a vast spectrum of equipment. This ranges from low-voltage applications such as 1.1 kV panel pumps to high-voltage connections, including the incoming power supplies for 22 kV mobile substations. Understanding why this specific design has become the industry benchmark requires a deep dive into its construction, certification, and the technology embedded within.

Why TYPE 241-LED is the Preferred Choice for South African Mines

South Africa’s mining industry operates under some of the world’s most stringent safety regulations and geological challenges. The conditions underground are harsh, characterized by high humidity, abrasive dust, and significant mechanical stress. In this environment, standard cables often fail prematurely or lack the features necessary to ensure operational safety.

The TYPE 241-LED has emerged as the preferred solution for several key reasons. Firstly, its versatility allows it to act as a universal solution. In many mines, different sections require different cable types, leading to inventory complexity and maintenance challenges. The TYPE 241-LED eliminates this issue by being robust enough to power everything from small auxiliary pumps to the main haulage systems. This "one cable fits many" approach simplifies procurement and stock management significantly.

Secondly, the integrated illumination system addresses a major safety concern. Visibility in underground workings is often limited, and identifying cable routes or detecting potential damage can be difficult. The self-illuminating feature ensures that the cable is clearly visible at all times, reducing the risk of accidental damage from heavy machinery and improving the overall situational awareness for workers.

Furthermore, the design takes into account the specific load profiles and voltage fluctuations common in long-distance power distribution. Whether it is supplying power to a 1.1 kV distribution panel or stepping up to 22 kV for primary distribution, the electrical characteristics of the cable remain stable. This reliability translates directly into increased uptime and reduced operational costs, factors that are critical in the current economic climate of the mining sector.

What Makes TYPE 241-LED Stand Out?

Being designated as a flagship product implies that the item represents the best of what a manufacturer can offer. For FeiChun, the TYPE 241-LED is indeed the showcase of innovation and quality. What sets this cable apart from conventional alternatives is the integration of multiple advanced technologies into a single, flexible unit.

Traditional trailing cables focus solely on power transmission. The TYPE 241-LED goes several steps further by incorporating energy harvesting, visual indication, and advanced protection mechanisms. This level of integration is the result of extensive research and development aimed at solving real-world problems faced by mine operators.

The market acceptance of this product further solidifies its flagship status. It has been deployed in various mining regions and has consistently demonstrated superior performance in terms of lifespan and resistance to fatigue. Engineers and maintenance managers prefer it because it reduces the frequency of replacements and associated downtime. When a product is designed to survive the toughest conditions while providing additional safety features, it naturally becomes the standard against which others are measured.

Compliance and Certification: The AS/NZS 1802 Standard

In the world of underground mining, certification is not just a paperwork requirement; it is a guarantee of safety and performance. The AS/NZS 1802 standard is widely recognized as one of the most rigorous specifications for electrical cables used in underground coal mines. It sets out requirements for construction, testing, and performance to ensure that cables can withstand fire, mechanical damage, and electrical stress without failing.

For South African mines and many other international operations, compliance with AS/NZS 1802 is effectively mandatory. Regulatory bodies and safety inspectors require this certification to ensure that the equipment used does not pose a risk of causing explosions or fires in gaseous or dusty environments.

The TYPE 241-LED is fully certified to AS/NZS 1802:2003. This means every aspect of the cable, from the conductor material to the outer sheath compound, has been tested and verified to meet or exceed these strict requirements. The certification covers aspects such as flame propagation resistance, impact resistance, and electrical insulation properties.

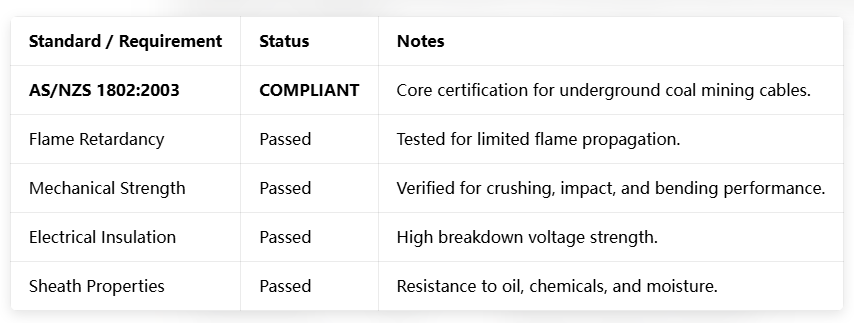

Standards Compliance Matrix

This matrix provides assurance that the TYPE 241-LED is not only fit for purpose but also legally compliant for use in hazardous areas where safety standards are strictly enforced.

Deep Dive: Construction and Layered Design

The performance of any cable is ultimately determined by its physical construction. The TYPE 241-LED utilizes a sophisticated layered structure specifically engineered to endure the dynamic stresses imposed by Continuous Miners and Longwall Shearers. These machines are constantly moving, twisting, and reeling the cable, meaning fatigue resistance is critical.

Layer-by-Layer Structure

Conductor

The core consists of high-conductivity copper strands, specially stranded to provide maximum flexibility. This construction allows the cable to bend repeatedly without causing structural fatigue or increasing electrical resistance.

Core Insulation

Surrounding the conductor is a high-grade insulation material designed to withstand the operating voltages and temperature rises encountered in mining applications. It provides excellent dielectric strength and remains stable over a wide temperature range.

Internal Sheath / Bedding

This layer binds the cores together and provides a smooth base for the reinforcing layers, ensuring that mechanical forces are distributed evenly across the cable cross-section.

Reinforcement

High-strength textile or synthetic yarns are applied to provide tensile strength. This is vital for trailing cables which must support their own weight and resist the pulling forces encountered during operation.

Integrated Optic/Electronic Elements

Embedded within the structure are the elements required for the LED illumination system. These are placed in positions where they are protected from mechanical damage but close enough to the surface to emit light effectively.

Outer Sheath

The final layer is a robust compound that provides the physical protection against abrasion, cuts, and chemical attack. The specific formulation used in TYPE 241-LED ensures that it remains flexible even in low temperatures and does not crack or harden over time.

This multi-layered approach ensures that while the cable remains flexible enough for reeling and trailing applications, it possesses the structural rigidity to survive in an environment where heavy machinery operates continuously.

Core Technologies and Innovations

What truly differentiates the TYPE 241-LED from standard cables are the proprietary technologies embedded within its design. FeiChun has developed specific systems to enhance performance, safety, and reliability.

FC-EMH™ Technology: Magnetic Transparency

One of the key innovations is the FC-EMH™ (Electro-Magnetic Harvesting) system. This technology allows the cable to harvest energy directly from the electromagnetic field generated by the current flowing through the main conductors.

The design incorporates a "Magnetic Transparent Screen" which minimizes energy loss while maximizing induction efficiency. Engineering analysis and field tests have demonstrated that this system achieves an induction efficiency increase of 15-20% compared to conventional methods. This higher efficiency means that the LED lighting system remains bright even when the cable is carrying lower loads, ensuring visibility is maintained across all operating conditions.

Dual Energy Harvesting System

To ensure compatibility across the entire voltage range used in mining, the TYPE 241-LED employs a dual-system approach:

• FC-CVD™ Technology: This system is specifically optimized for lower voltage networks, typically operating at 1.1 kV. It is tuned to extract power efficiently at these voltage levels where current flows are generally higher.

• FC-EMH™ Technology: For medium to high voltage applications ranging from 3.3 kV up to 22 kV, the FC-EMH™ system takes over. It is designed to work effectively with the field strengths generated at these voltages.

This dual configuration ensures that regardless of whether the cable is used on a Continuous Miner operating at 3.3kV or feeding a Longwall system at 11kV, the illumination system functions perfectly without the need for external power supplies or batteries.

FC-SPM™ Surge Protection

Electrical machinery, particularly large motors found on Continuous Miners and Shearers, generates significant electrical transients during start-up and switching operations. These voltage spikes can damage control systems and insulation over time.

The FC-SPM™ (Surge Protection Mechanism) features a sophisticated 4-layer protection structure. This system is designed to absorb and dissipate these energy spikes rapidly. By clamping voltage transients effectively, it protects not only the cable itself but also the sensitive electronics and motor windings connected to it. This feature significantly extends the operational life of the entire electrical system.

FC-TPU™ Series C Sheath

The outer sheath material is often the most critical component regarding longevity. The TYPE 241-LED uses the proprietary FC-TPU™ C-Series compound. This Thermoplastic Polyurethane formulation is specifically developed for the mining industry.

It offers an exceptional balance of properties. It is extremely resistant to compression, meaning it will not deform permanently when crushed by machinery or run over by vehicles. Simultaneously, it possesses high light transmittance diffusion properties. This allows the light from the internal LEDs to shine through brightly and evenly along the entire length of the cable, creating a luminous effect that clearly marks the cable route, while still maintaining a tough, protective outer skin.

Technical Specifications and Data

The TYPE 241-LED is available in a comprehensive range of variants to suit every possible application. With 45 distinct part numbers, the range covers the full spectrum of mining requirements.

Voltage Classes

The cable is manufactured and tested for the following standard mining voltage classes:

• 1.1 kV – Suitable for face conveyors, panel pumps, and auxiliary equipment.

• 3.3 kV – Common voltage for Continuous Miners and smaller shearers.

• 6.6 kV – Widely used for driving armoured face conveyors and stage loaders.

• 11 kV – Standard for Longwall Shearers and main power distribution.

• 22 kV – Used for primary power distribution and feeding mobile substations.

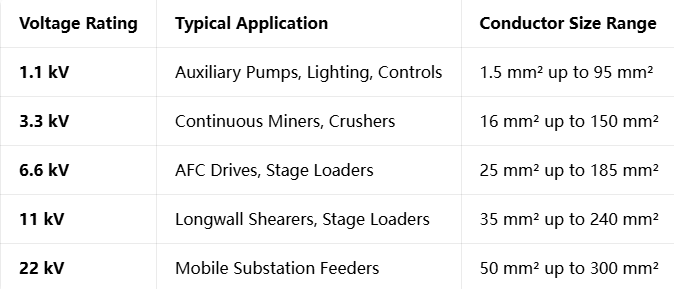

Selection Guide by Part Number

This extensive range ensures that engineers can select the exact current carrying capacity and voltage rating required for their specific project, ensuring optimal performance and safety margins.

Top Operational Advantages

The combination of advanced materials and innovative design results in a product that offers significant benefits over traditional trailing cables.

Enhanced Safety Through Visibility

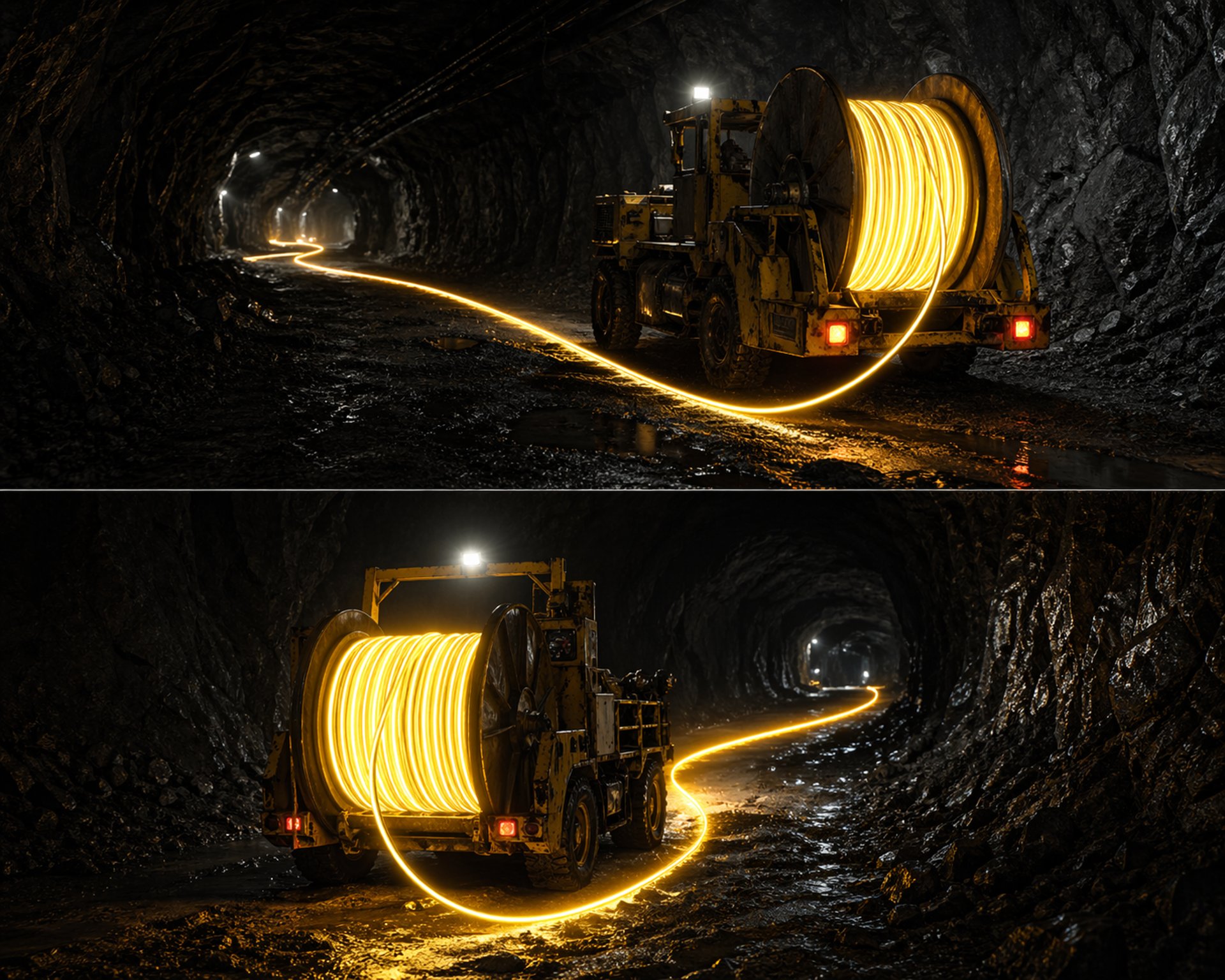

The most immediate advantage is the high visibility. The glowing cable creates a clear visual boundary, warning personnel of live electrical routes and preventing accidental contact.

Self-Sufficiency

Because the cable powers its own lights via energy harvesting, there is no need for additional wiring, external power supplies, or batteries. This reduces points of failure and simplifies installation.

Superior Mechanical Durability

The combination of high-strength reinforcement and the FC-TPU™ sheath means the cable resists cuts, abrasion, and crushing far better than standard rubber or PVC alternatives.

Energy Efficiency

The FC-EMH™ system is highly efficient, drawing minimal power from the system while providing maximum light output.

Transient Protection

The FC-SPM™ system protects valuable equipment from voltage spikes, reducing maintenance costs and machine downtime.

Certified Quality

Full AS/NZS 1802 compliance ensures acceptance by safety inspectors and reduces legal and insurance risks.

Wide Application Range

From 1.1kV to 22kV, one cable type covers almost all underground power distribution needs.

Ease of Handling

Despite its robust construction, the cable remains flexible and easy to handle during installation and maintenance.

Long Service Life

High-quality materials and construction result in a longer operational lifespan, lowering the total cost of ownership.

Environmental Resistance

Resistance to oils, acids, alkalines, and water ensures performance is maintained regardless of the underground environment.

Primary Applications and Use Cases

The versatility of the TYPE 241-LED allows it to be deployed across the entire mine layout.

Continuous Miners

These machines require cables that can withstand constant movement, reeling, and unreeling. The combination of flexibility, mechanical strength, and visible routing makes TYPE 241-LED ideal for this application. The surge protection is particularly valuable here due to the frequent starting and stopping of hydraulic and cutting motors.

Longwall Shearers

In longwall operations, the cable is subjected to tension, torsion, and compression as the shearer travels along the face. The high tensile strength and durable FC-TPU™ sheath ensure reliable operation over the long wall face, while the illumination helps maintenance crews locate faults or monitor drum positions quickly.

AFC and Drive Units

Armoured Face Conveyors operate in harsh conditions where material spillage is common. The robust sheath protects against abrasion from rock and coal, while the high visibility helps operators monitor the cable interaction with the conveyor structure.

Mobile Substations

When connecting to 22kV mobile substations, safety is paramount. The clear illumination indicates that the cable is live and energized, providing a clear visual warning even in dusty or smoky atmospheres.

Type 241-LED vs. Type 260-LED vs. Type 275-LED

FeiChun offers a family of illuminated mining cables, and selecting the right one depends on the specific application requirements.

TYPE 241-LED

This is the Flagship AS/NZS 1802 certified model. It offers the highest level of certification, the most advanced protection technologies (FC-SPM™ 4-layer), and the broadest voltage range up to 22kV. It is recommended for main production areas, longwall systems, and any application where full compliance with the strictest standards is required.

TYPE 260-LED

This variant is typically designed for slightly different mechanical profiles or standard applications. It still offers illumination and reliability but may differ in reinforcement layers or voltage class maximums. It is often chosen for secondary haulage or less demanding environments where full AS/NZS 1802 heavy-duty specification is not the primary requirement.

TYPE 275-LED

This model usually represents a different construction type, perhaps optimized for different flexing cycles or specific national standards. It may offer different properties regarding oil resistance or temperature ranges.

Decision Factors

When choosing between them, consider the voltage level, the intensity of mechanical stress, the required certification standards, and the specific environment. For the most demanding South African coal mines operating under high safety scrutiny, the TYPE 241-LED remains the definitive choice.

Frequently Asked Questions

Is the LED system safe in explosive atmospheres?

Yes. The system is designed to operate at very low safety extra-low voltage (SELV) derived intrinsically from the main field. The design and materials used comply with the safety requirements necessary for hazardous areas, and the cable holds full certification for use in these zones.

How does the self-powering technology actually work?

The technology utilizes electromagnetic induction principles. As power flows through the main conductors, it creates an electromagnetic field. The FC-EMH™ or FC-CVD™ elements capture this energy and convert it into electricity to power the LEDs, without drawing significant power or affecting the main supply.

Can these cables replace standard trailing cables directly?

Absolutely. They are designed as drop-in replacements. The electrical characteristics match standard requirements, and the physical dimensions are compatible with standard cable handlers, reels, and glanding systems.

What is the expected lifespan compared to standard cables?

Due to the superior materials like FC-TPU™ and the robust construction, the service life is typically significantly longer than standard rubber or PVC sheathed cables. The resistance to cutting, abrasion, and fatigue means that replacement cycles are extended, directly reducing operational expenditure over the long term.

How to maintain and inspect the cables properly?

Maintenance follows standard electrical safety procedures, with the added benefit that visual inspection is much easier. The uniform glow of the cable allows maintenance teams to instantly identify any dark spots or areas where light is interrupted, which often indicates internal damage or conductor breakage before a total failure occurs. Regular visual checks combined with standard insulation resistance testing form the basis of an effective maintenance routine.

Conclusion

The evolution of trailing cable technology has reached a significant milestone with the development of the TYPE 241-LED. By combining high-performance power transmission with integrated safety illumination and advanced protection mechanisms, it addresses many of the historical challenges faced in underground coal mining. Its ability to operate reliably across a vast voltage spectrum, from 1.1 kV auxiliary systems up to 22 kV primary distribution, makes it a truly versatile solution.

For the South African mining industry, where safety regulations are strict and operational efficiency is vital, this cable offers more than just compliance. It provides a pathway to improved safety standards, reduced maintenance costs, and increased operational uptime. The proprietary technologies such as FC-EMH™, FC-SPM™, and FC-TPU™ demonstrate how engineering innovation can directly translate into tangible benefits on the mine face.

Selecting the right cable is an investment in the future of any mining operation. The TYPE 241-LED stands as a benchmark product, engineered to perform under pressure and designed to protect both personnel and equipment.
