Understanding the Feichun SHD-GC Power Cable

What Is the SHD-GC Power Cable?

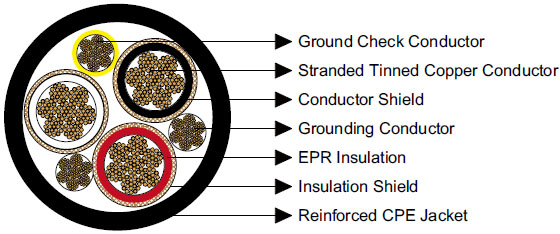

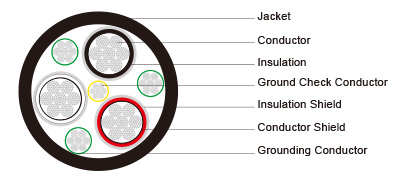

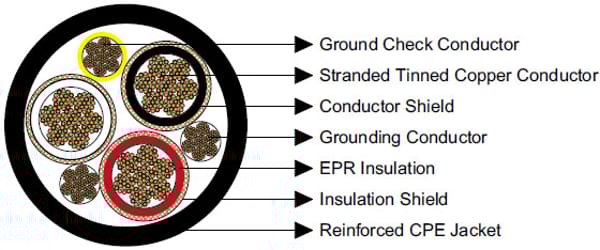

The Feichun SHD-GC Power Cable is a three-conductor, shielded round portable power cable designed for high-voltage applications up to 5000 volts. Its unique construction includes a ground-check conductor for enhanced safety monitoring, making it ideal for industries where electrical faults can have severe consequences. The cable features EPR insulation for superior electrical performance and a CPE jacket for exceptional mechanical and environmental resistance. Its rope-lay-stranded annealed copper conductors (compliant with ASTM B172) ensure flexibility and durability, even under frequent movement or extreme conditions.

Benefits of the Feichun SHD-GC Power Cable

The Feichun SHD-GC Power Cable offers a range of advantages that make it a preferred choice for heavy-duty applications:

Electrical Performance

• High Dielectric Strength: Prevents electrical breakdown, ensuring safe operation in high-voltage systems.

• Low Dielectric Loss: Enhances power transmission efficiency, reducing energy waste.

• Uniform Stress Elimination: The extruded strand shield (ESS) and insulation shield reduce uneven electrical stress, prolonging cable lifespan.

• Electrical Stability: Maintains consistent performance under fluctuating conditions, critical for mining equipment like longwall shearers and continuous miners.

Mechanical Durability

• Abrasion and Cut Resistance: Withstands rough handling and frequent movement in harsh environments like quarries.

• Impact and Flame Resistance: Operates safely in high-risk areas, such as fire-prone mining sites.

• Environmental Protection: Resists UV, chemicals, heat, steam, and moisture, ensuring long-term reliability in South Africa’s diverse climates.

Safety Features

• Ground-Check Conductor: Enables continuous monitoring for electrical faults, critical for underground mining safety.

• MSHA Approval: Certified for safe use in mining applications, adhering to strict regulatory standards.

Versatility

The cable’s design supports a wide range of applications, from trailing cables for mobile equipment to high-voltage distribution in industrial settings. Its flexibility and customizable options (e.g., jacket colors, custom lengths, or TPU jackets) make it adaptable to project-specific needs.

Applications in South Africa’s Mining and Heavy Industry Sectors

South Africa’s mining industry, a cornerstone of the nation’s economy, relies heavily on robust infrastructure to power equipment in challenging environments. The Feichun SHD-GC Power Cable is tailored for such conditions, with applications including:

• Underground Mining: Powers longwall shearers, continuous miners, and other equipment in gold, platinum, and coal mines. For instance, in South Africa’s Witwatersrand Basin, where deep-level gold mining is prevalent, the cable’s ground-check conductor ensures safety in high-risk electrical systems.

• Open-Pit Quarries: Supports mobile equipment like shovels and dredges in diamond and aggregate quarries, such as those in Kimberley, where dust and abrasion are constant challenges.

• Mobile Power Systems: Facilitates power distribution for gantry cranes and other equipment in ports and industrial facilities, such as those in Durban’s harbor.

• Heavy Industry: Used in slag reclaiming facilities and other industrial operations requiring high-voltage, durable cables.

Frequently Asked Questions (FAQs)

Q1: What makes the Feichun SHD-GC Power Cable suitable for mining applications?
A: Its ground-check conductor ensures real-time fault detection, while the EPR insulation and CPE jacket provide durability against abrasion, chemicals, and extreme temperatures, making it ideal for South African mines.

Q2: Can the cable be customized for specific projects?
A: Yes, Feichun offers custom lengths, jacket colors, and optional TPU jackets to meet project-specific requirements, such as color-coding for easy identification in complex mining setups.

Q3: What standards does the cable comply with?
A: It meets ICEA S-75-381, MSHA, and CSA C22.2 No. 96, ensuring compliance with global and South African safety and performance standards.

Q4: How does the cable perform in South Africa’s climate?
A: The cable’s CPE jacket resists UV, heat, and moisture, making it suitable for South Africa’s diverse climates, from the humid coastal regions to the arid interior.

Q5: What is the typical lifespan of the Feichun SHD-GC Power Cable?
A: With proper installation and maintenance, the cable can last over 10 years in demanding environments, reducing replacement costs and downtime.

Feichun SHD-GC Power Cable is a game-changer for South Africa’s mining and heavy industry sectors, offering unmatched durability, safety, and performance. Its 5000-volt rating, EPR/CPE construction, and ground-check conductor make it ideal for powering critical equipment in underground mines, open-pit quarries, and mobile power systems. By meeting stringent standards and providing customizable options, this cable addresses the unique challenges of South Africa’s industrial landscape, from the platinum mines of the Bushveld to the diamond quarries of Kimberley. For businesses seeking reliable, high-performance power solutions, the Feichun SHD-GC is the ultimate choice.
