Type W Two-Conductor Flat Portable Power Cable 2kV

Applications

These flat parallel cables are designed for use on DCmining equipment, such as D.C. shuttle cars, drills, cutting and loading machines.

Standards

ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

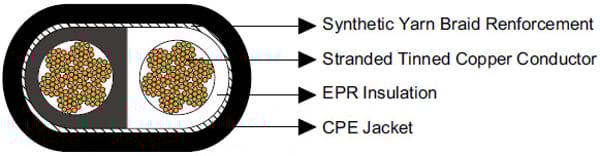

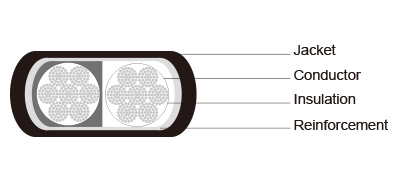

Construction

Conductors

Stranded annealed tinned copper conductor.

Insulation

Ethylene Propylene Rubber (EPR).

Reinforcement

Synthetic yarn.

Jacket

Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD
Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction

No. of Strands

Nominal Insulation Thickness

Nominal Jacket

Thickness

Nominal Overall Diameter

Height×Width

Nominal Weight

Ampacity

No. of cores×AWG/kcmil



inch

mm

inch

mm

inch

mm

lbs/kft

kg/km

A

2×8

133

0.06

1.5

0.080

2.0

0.51×0.84

13.0×21.3

340

506

72

2×6

133

0.06

1.5

0.080

2.0

0.56×0.93

14.2×23.6

440

655

95

2×4

259

0.06

1.5

0.095

2.4

0.61×1.05

15.5×26.7

550

818

127

2×3

259

0.06

1.5

0.095

2.4

0.68×1.14

17.3×29.0

675

1005

145

2×2

259

0.06

1.5

0.095

2.4

0.73×1.24

18.5×31.5

810

1205

167

2×1

259

0.08

2.0

0.110

2.8

0.81×1.40

20.6×35.6

1020

1520

191

2×1/0

259

0.08

2.0

0.125

3.2

0.93×1.51

23.6×38.2

1265

1880

217

2×2/0

329

0.08

2.0

0.125

3.2

0.99×1.63

25.1×41.4

1515

2255

250

2×3/0

413

0.08

2.0

0.140

3.6

1.03×1.77

26.2×45.0

1810

2694

286

2×4/0

532

0.08

2.0

0.140

3.6

1.10×1.89

27.9×48.0

2175

3237

328


What Is the Type W Two-Conductor Flat Portable Power Cable 2kV?

The Type W 2kV flat portable cable is a specialized electrical cable designed for direct current (DC) mining equipment, including shuttle cars, continuous miners, drills, and cutting machinery. Its flat construction makes it ideal for confined spaces and environments where round cables may be prone to tangling or mechanical strain.

Benefits of Type W Two-Conductor Flat Portable Cable

The advantages of this cable type are directly tied to its construction and material properties:

  1. Flexibility in Confined Spaces:
    Flat parallel design reduces tangling and makes it easier to manage in narrow mine passages.

  2. High Mechanical Strength:
    Reinforced synthetic yarn and heavy-duty jackets resist tearing and crushing under heavy machinery.

  3. Thermal Stability:
    EPR insulation ensures performance at continuous operating temperatures up to 90℃.

  4. Chemical and Oil Resistance:
    CPE or alternative jackets protect against oils, fuels, solvents, and corrosive mine environments.

  5. Long Service Life:
    Durability reduces cable replacement frequency, lowering operational costs.

  6. Compliance with Global Standards:
    Meets ICEA, ASTM, and CSA requirements, ensuring safety and reliability.


Installation and Maintenance Recommendations

Installation Best Practices

  • Bending Radius: Maintain at least 6× the cable’s OD to prevent conductor or insulation damage.

  • Support Systems: Use rollers or cable hangers to avoid sharp bends and excessive mechanical stress.

  • Environmental Protection: Ensure the jacket is appropriate for exposure to oils, chemicals, or UV radiation.

  • Termination: Use proper cable terminations and glands rated for 2kV applications.

Maintenance Guidelines

  • Regular Inspections: Check for jacket abrasion, cuts, or thermal damage.

  • Testing: Conduct periodic insulation resistance and continuity tests.

  • Cleaning: Keep cables free from debris, corrosive substances, or sharp metal contact points.

  • Rotation: Where possible, rotate cables in high-movement applications to distribute wear evenly.


Usage Scenarios

Type W flat portable power cables are versatile and widely applied in mining and heavy industry, particularly in scenarios where flexibility and durability are essential:

  1. Underground Mining

    • Shuttle cars, drills, and loaders in deep-level gold and platinum mines.

    • Their flat profile prevents rolling or snagging along mine floors.

  2. Open-Cast Mining

    • Portable conveyors, crushers, and drills requiring frequent relocation.

  3. Industrial Settings

    • Steel mills, shipyards, and construction sites where portable high-voltage power is needed.


Case Study: South Africa’s Gold Mining Sector

South Africa remains one of the world’s largest gold producers, though production has declined in recent years. Mines are increasingly deep, with many extending beyond 3 km underground. At these depths, reliable portable power delivery is critical to ensure safety and productivity.

A major gold mining operator in Gauteng recently upgraded its shuttle car power systems using Type W Two-Conductor Flat Portable Power Cables. The decision was driven by:

  • The need for cables that could withstand mechanical abrasion from sharp rocks.

  • Improved heat resistance in high ambient underground conditions.

  • Reduced downtime from frequent cable replacement.

The switch to Type W resulted in a 30% decrease in cable-related downtime within the first year, highlighting its cost-effectiveness despite higher initial investment.


Frequently Asked Questions (FAQ)

Q1: What makes Type W cables different from Type G or Type G-GC mining cables?
A: Type W is specifically designed for two-conductor DC power applications, while Type G/G-GC typically involve multiple conductors and are more common in AC applications.

Q2: Can Type W flat cables be used in wet environments?
A: Yes, their heavy-duty jackets provide excellent moisture resistance. However, users should ensure proper termination to prevent water ingress.

Q3: How do I choose the correct size?
A: Selection depends on the equipment’s ampacity requirement and installation conditions. Engineers should consult the manufacturer’s datasheet.

Q4: Are these cables flame-retardant?
A: Yes, the CPE jackets offer flame resistance, and additional fire-resistant materials can be specified.

Q5: What is the expected service life of Type W cables in mining applications?
A: Depending on mechanical stresses, service life typically ranges from 3 to 5 years, but proper maintenance can extend this period.


The Type W Two-Conductor Flat Portable Power Cable 2kV is a robust, versatile, and compliant solution for powering heavy-duty mining and industrial equipment. With its flat profile, reinforced design, and resistance to heat, chemicals, and mechanical wear, it is particularly suited to South Africa’s demanding mining conditions.

By understanding its construction, specifications, benefits, and installation practices, mining operators and engineers can make informed decisions that improve safety, reduce downtime, and ensure compliance with both local and international standards.

As South Africa’s mining industry continues to modernize and face challenges such as energy constraints and deep-level mining conditions, high-performance cables like Type W will remain indispensable for safe, reliable, and efficient operations.
