UKOOA TYPE LA 600/1000V Flame retardant Cables
Application and Description
These cables are designed for fixed installation for power, control and lighting in both and safe areas, emergency and critical offshore applications where cable protection is required.
Standards
BS 6883/BS 7917/UKOOA
IEC 60332-3-22 CAT. A
IEC 60332-1
IEC 60754-1 & IEC 60754-2
IEC 61034-1 & IEC 61034-2

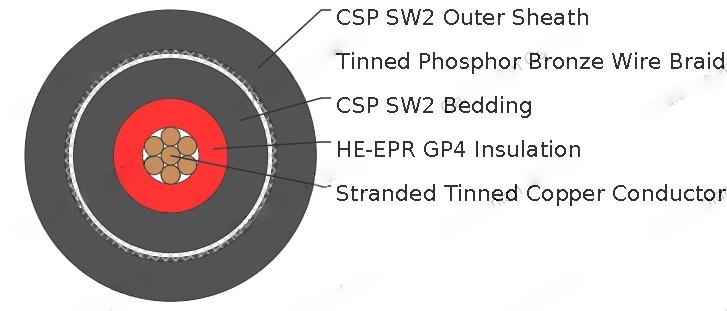

Construction
Conductor: Stranded class 2 or flexible class 5 tinned annealed copper conductors to BS 6360/IEC 60228.
Insulation: EPR complying with BS7655 GP4.
Bedding: CSP – SW2 compound complying with BS 7655.
Armour: Tinned Phosphor Bronze Wire Braid to BS2873-PB102 (now BS EN 12166).
Outer Sheath: CSP – SW2 compound complying with BS 7655.
Dimensions and Weight
Construction No. of cores × Cross section(mm^2) | Nominal Insulation Thickness | Nominal Thickness of Inner Sheath | Nominal Thickness of Outer Sheath | Nominal Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
mm | mm | mm | mm | kg/km | |
1×1.0 | 0.8 | 1.1 | 1.2 | 9.5 | 150 |
1×1.5 | 0.8 | 1.1 | 1.2 | 9.8 | 170 |
1×2.5 | 0.8 | 1.1 | 1.2 | 10.2 | 190 |
1×4 | 1.0 | 1.1 | 1.2 | 11.3 | 260 |
1×6 | 1.0 | 1.1 | 1.2 | 11.8 | 340 |
1×10 | 1.0 | 1.1 | 1.2 | 13.0 | 390 |
1×16 | 1.0 | 1.1 | 1.2 | 14.2 | 480 |
1×25 | 1.2 | 1.1 | 1.2 | 16.8 | 565 |
1×35 | 1.2 | 1.1 | 1.3 | 17.9 | 740 |
1×50 | 1.4 | 1.1 | 1.4 | 19.7 | 940 |
1×70 | 1.4 | 1.0 | 1.4 | 21.9 | 1270 |
1×95 | 1.6 | 1.2 | 1.4 | 24.5 | 1500 |
1×120 | 1.6 | 1.4 | 1.6 | 26.6 | 1750 |
1×150 | 1.8 | 1.6 | 1.8 | 29.0 | 2200 |
1×185 | 2.0 | 1.8 | 2.1 | 32.6 | 2700 |
1×240 | 2.2 | 1.3 | 1.5 | 36.0 | 3400 |
1×300 | 2.4 | 1.5 | 1.7 | 39.2 | 4200 |
1×400 | 2.6 | 1.7 | 2.0 | 43.7 | 5700 |
1×500 | 2.8 | 1.2 | 1.3 | 48.1 | 7200 |
1×630 | 2.8 | 1.0 | 1.2 | 52.3 | 8840 |
