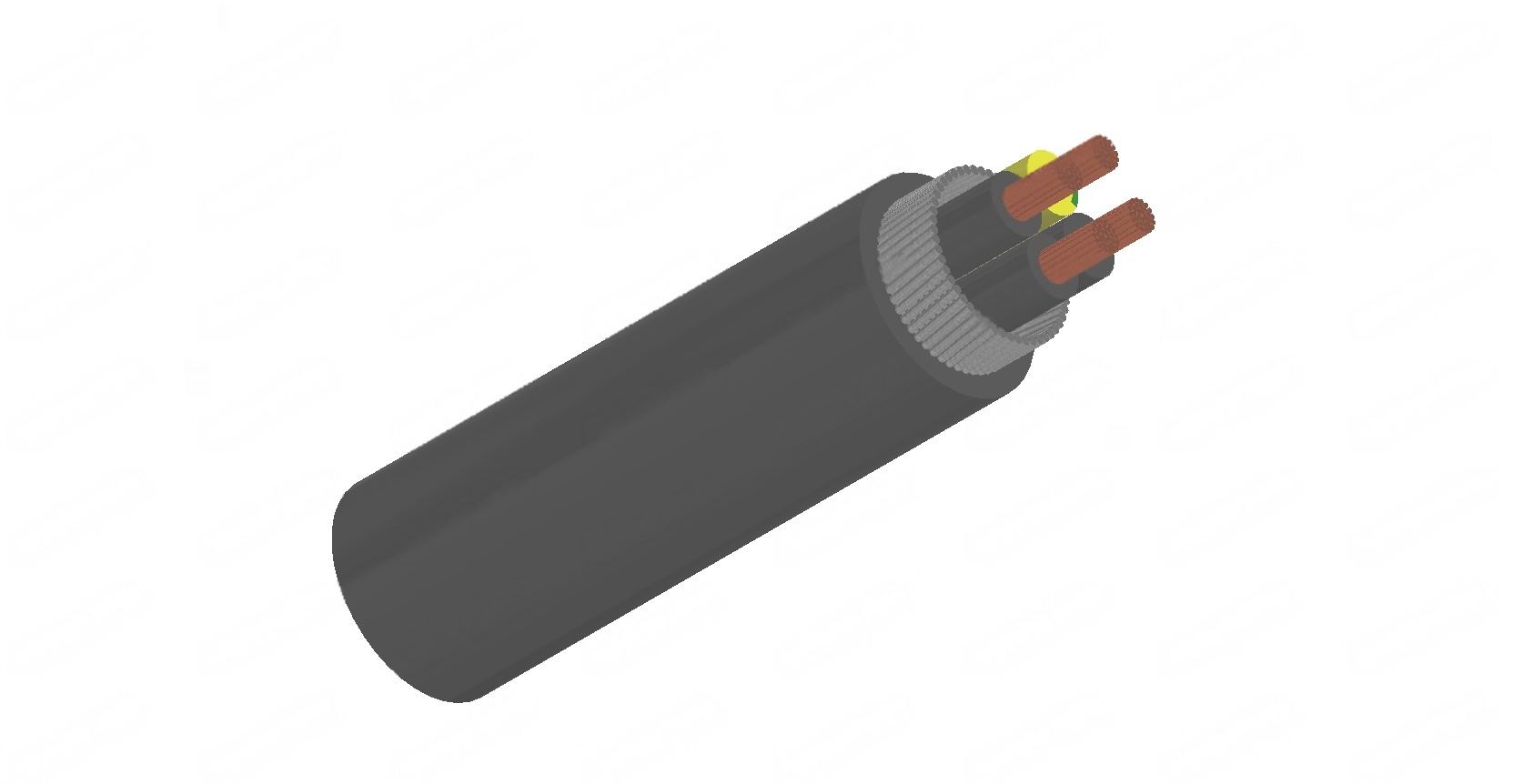

UL/CSA 1000V PVC/PVC Screened Torsion Resistant Cable 90°C
Application
These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.
Standards
UL 758
Construction
Conductor | Stranded bare copper according to DIN VDE 0295. |
Insulation | Special heat resistant PVC. |
Screen | Tinned copper wire wrapped. |
Sheath | Special heat resistant PVC. |
Technical Data
RATED VOLTAGE U0/U (UM) | 1000V |
|---|---|
OPERATING TEMPERATURES | flexing: -35℃~+90℃; fixed: -40℃~+90℃ |
MINIMUM BENDING RADIUS | 10×OD |
TORSION APPLICATION | +/-90°/m |
FLAME RETARDANT | FT1 |
OIL RESISTANT | Yes |
UV RESISTANT | Yes |
Dimensions and Weight
CONSTRUCTION | AWG /MCM | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|
NO. OF CORES×MM^2 | - | MM | KG/KM |
2×2×0.25 | 24 | 8.9 | 90 |
4×2×0.25 | 24 | 9.9 | 115 |
5×2×0.25 | 24 | 11.1 | 130 |
4×0.34 | 22 | 7.7 | 91 |
2×2×0.34 | 22 | 9.6 | 110 |
4×2×0.34 | 22 | 11.0 | 130 |
4×0.5 | 20 | 8.0 | 105 |
6×0.5 | 20 | 9.2 | 130 |
10×0.5 | 20 | 11.4 | 170 |
12×0.5 | 20 | 11.7 | 220 |
2×2×0.5 | 20 | 9.8 | 115 |
4×2×0.5 | 20 | 11.3 | 150 |
3×0.75 | 19 | 7.7 | 97 |
4×0.75 | 19 | 8.3 | 122 |
5×0.75 | 19 | 9.0 | 145 |
7×0.75 | 19 | 9.7 | 200 |
8×0.75 | 19 | 10.7 | 220 |
12×0.75 | 19 | 12.2 | 258 |
18×0.75 | 19 | 14.4 | 400 |
25×0.75 | 19 | 17.8 | 552 |
32×0.75 | 19 | 18.8 | 610 |
40×0.75 | 19 | 21.2 | 805 |
41×0.75 | 19 | 21.2 | 795 |
50×0.75 | 19 | 23.5 | 900 |
2×2×0.75 | 19 | 10.4 | 130 |
3×2×0.75 | 19 | 11.5 | 172 |
4×2×0.75 | 19 | 12.7 | 211 |
8×2×0.75 | 19 | 17.1 | 410 |
12×2×0.75 | 19 | 17.6 | 520 |
4×1.0 | 18 | 8.7 | 110 |
6×1.0 | 18 | 10.2 | 150 |
8×1.0 | 18 | 11.7 | 210 |
12×1.0 | 18 | 13.3 | 280 |
2×1.5 | 16 | 6.8 | 86 |
3×1.5 | 16 | 8.8 | 133 |
4×1.5 | 16 | 9.4 | 159 |
5×1.5 | 16 | 10.3 | 195 |
7×1.5 | 16 | 11.9 | 247 |
12×1.5 | 16 | 14.7 | 410 |
2×2×1.5 | 16 | 12.1 | 180 |
3×2×1.5 | 16 | 14.0 | 210 |
4×2×1.5 | 16 | 14.6 | 235 |
3×2.5 | 14 | 10.4 | 210 |
4×2.5 | 14 | 10.6 | 264 |
5×2.5 | 14 | 12.3 | 288 |
7×2.5 | 14 | 14.8 | 411 |
12×2.5 | 14 | 18.2 | 638 |
5×4 | 12 | 13.6 | 382 |
7×4 | 12 | 16.3 | 582 |
12×4 | 12 | 20.0 | 806 |
5×6 | 10 | 17.4 | 640 |
4×10 | 8 | 17.8 | 727 |
5×10 | 8 | 19.8 | 935 |
4×16 | 6 | 21.1 | 1072 |
5×16 | 6 | 26.2 | 1330 |
4×25 | 4 | 26.0 | 1664 |
5×25 | 4 | 28.6 | 2014 |
4×50 | 1 | 37.0 | 3200 |
1×70 | 2/0 | 19.8 | 950 |
1×95 | 3/0 | 22.5 | 1280 |
1×120 | 4/0 | 25.0 | 1570 |
1×150 | 300 | 24.9 | 2000 |
1×185 | 350 | 27.8 | 2340 |
1×240 | 500 | 33.0 | 3150 |
1×300 | 600 | 39.0 | 3920 |
1×400 | 750 | 43.0 | 5100 |
1×500 | 1000 | 46.5 | 6200 |
