Unearthing Power: The Type 61A Mining Cable Fueling South Africa’s Mining Industry

Introduction

South Africa’s mining industry is the heartbeat of its economy, extracting gold, platinum, coal, and diamonds that drive global markets. From the deep, dark tunnels of the Witwatersrand to the sun-baked open-pit mines of the Northern Cape, this sector operates in some of the toughest conditions on Earth. At the core of these operations are mining cables, the lifelines that power heavy machinery, ensuring productivity and safety in environments where reliability is non-negotiable.

Enter the SANS Type 61A mining cable, rated at 0.64/1.1KV, a robust and versatile solution designed for semi-mobile equipment like shuttle cars, drilling rigs, and continuous miners. Engineered to withstand the mechanical and environmental stresses of South African mines, this cable is a cornerstone of safe and efficient operations. Compliant with the South African National Standard (SANS) 1520-1 and approved by the National Regulator for Compulsory Specifications (NRCS), the Type 61A meets rigorous safety and performance standards. This article dives into its design, materials, technical parameters, applications, and solutions to common challenges, offering a detailed guide for miners, engineers, and industry stakeholders across South Africa.

The 0.64/1.1KV voltage rating makes the Type 61 A ideal for low to medium-voltage equipment, striking a balance between power delivery and safety. Whether navigating the cramped confines of an underground coal mine or enduring the abrasive terrain of an open-pit diamond operation, the Type 61A ensures consistent performance. Let’s explore how this cable powers South Africa’s mines and why it’s a game-changer in this demanding industry.

Structure and Design of Type 61A Cable

The Type 61A mining cable is a masterpiece of engineering, crafted to deliver reliable power and control signals while enduring the brutal conditions of mining environments. Its construction combines carefully selected materials and components, each designed to enhance durability, flexibility, and safety.

Cable Construction：

• Conductor Material: The Type 61A features tinned annealed copper conductors, classified as Class 5 per SANS 1411-1. The tinning process coats the copper strands to prevent corrosion, critical in humid underground mines or chemically aggressive settings with acidic mine water, such as those in Mpumalanga’s coalfields. The Class 5 stranding, with fine, flexible copper wires, ensures the cable can bend and twist without breaking, ideal for semi-mobile applications.

• Insulation: The cable uses Ethylene Propylene Rubber (EPR, type RD 3 as per SANS 1411-3) for insulation. EPR is renowned for its excellent dielectric strength, flexibility, and resistance to heat, chemicals, and moisture. A triple-extruded semi-conducting core screen is applied over the insulation to reduce electrical faults and electromagnetic interference (EMI), ensuring operator safety and equipment reliability.

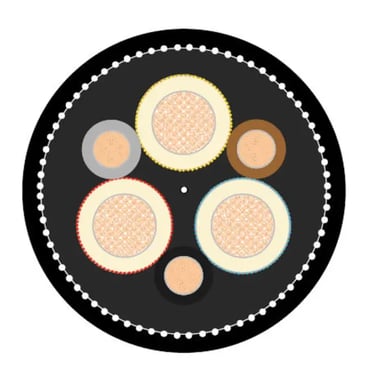

• Core Arrangement and Earth Conductor: The Type 61A consists of three tinned copper-braided screened power cores and three unscreened pilot cores, positioned in the interstices, laid up in a right-hand lay around a semi-conductive cradle centre (or rubber filler for 16 mm² cables). An earth conductor, also made of tinned copper, provides grounding to prevent electrical shocks, a critical safety feature in mining.

• Inner Sheath and Separator: A polychloroprene thermosetting compound (type RS 6, SANS 1411-3) forms the inner sheath, offering mechanical protection and flexibility. A semi-conductive tape separator prevents adhesion between the inner sheath and cores, simplifying maintenance and inspection.

• Reinforcement: An open nylon braid with at least 16 strings reinforces the cable, providing tensile strength and resistance to tearing or cutting during dragging or repositioning, common in semi-mobile applications.

• Outer Sheath: The outer sheath, typically polychloroprene or thermoplastic polyurethane (TPU), is flame-retardant, UV-resistant, and resistant to abrasion and chemicals. This ensures durability in both underground and open-pit mines, where cables face constant exposure to harsh conditions.

Physical Characteristics：

• Flexibility and Toughness: Designed for non-reeling applications, the Type 61A balances flexibility and mechanical strength, allowing it to withstand dragging, bending, and twisting during equipment repositioning. Its flexibility is sufficient for navigating tight spaces, yet its robust construction prevents damage from rough handling.

• Resistance to Abrasion and Chemicals: The outer sheath protects against wear from rocky mine surfaces and exposure to oils, greases, and acidic water, prevalent in South African mines like those in the Free State’s goldfields.

• Flame-Retardant and UV-Resistant Features: The flame-retardant sheath reduces fire risks in confined underground spaces, while UV resistance ensures longevity in open-pit mines under South Africa’s intense sunlight, such as in the Northern Cape’s iron ore operations.

Electrical and Mechanical Performance

The Type 61A cable is engineered to deliver exceptional electrical and mechanical performance, tailored to the demanding conditions of South African mining.

Voltage Rating: The 0.64/1.1kV rating indicates the cable’s suitability for low to medium-voltage applications. The “0.64kV” refers to the phase-to-earth voltage, while “1.1kV” is the phase-to-phase voltage. This rating is perfect for equipment like shuttle cars, drilling rigs, and continuous miners, which require reliable power without the complexity of higher-voltage systems.

Current-Carrying Capacit: The current-carrying capacity depends on the conductor size and ambient conditions. For example, a 16 mm² Type 61A cable can handle approximately 90–100 amps at 30°C, while a 25 mm² cable can manage 120–140 amps. This ensures sufficient power for heavy machinery, preventing overheating during continuous operation in mines.

Thermal Performance: The cable operates reliably within a temperature range of -35°C to +90°C, accommodating South Africa’s diverse mining environments. From the chilly depths of underground platinum mines in Rustenburg to the scorching open-pit diamond mines in Kimberley, the EPR insulation and polychloroprene/TPU sheath maintain performance under extreme thermal conditions.

Short-Circuit Resistance and Durability: The Type 61A is designed to withstand short-circuit conditions, with its robust insulation and screening preventing electrical faults. Its durable construction resists mechanical damage from abrasion, impact, or crushing, common when cables are dragged over rocky terrain or run over by heavy equipment in mines.

Application Scenarios

The Type 61A cable is a versatile workhorse in South Africa’s mining industry, powering critical equipment in both underground and open-pit operations.

Underground Mining: In underground mines, such as those in the Witwatersrand goldfields or Mpumalanga’s coalfields, the Type 61A powers shuttle cars, which transport coal or ore to conveyor belts, and continuous miners, which extract minerals in a continuous process. Its flexibility allows it to navigate tight, winding tunnels, while its abrasion-resistant sheath protects against rocky surfaces and exposure to mine water.

Open-Pit Mining: In open-pit operations, like iron ore mines in the Northern Cape or diamond mines in Limpopo, the Type 61A is used for semi-mobile equipment such as drilling rigs and pumps. Its UV-resistant sheath ensures durability under prolonged sun exposure, and its flame-retardant properties enhance safety in dusty environments prone to fire hazards.

Specific Equipment Applications:

• Shuttle Cars: These vehicles rely on the Type 61A for power and control signals, with its flexibility accommodating constant movement and turning in confined underground spaces.

• Drilling Equipment: Drilling rigs in both underground and surface mines use the Type 61A to power motors and control systems, with its durability ensuring reliability during repetitive operations.

• Continuous Miners: Critical for coal extraction, these machines require cables that handle high power demands and frequent repositioning. The Type 61A’s robust design meets these needs without compromising safety.

• Semi-Mobile Machinery: Equipment like pumps or conveyors, which are periodically repositioned, benefits from the cable’s ability to withstand dragging and bending without damage.

Cable Layout and Mobility: In South African mines, cables are typically laid along mine floors or suspended on insulators to avoid damage from machinery. The Type 61A’s flexibility allows routing through tight spaces or around corners, but it must be de-energized during repositioning to prevent electrical hazards. Proper cable management, using cleats or hangers, ensures safe and efficient operation, minimizing wear and extending service life.

Compliance with Standards

The Type 61A cable complies with SANS 1520-1, a South African standard governing low and medium-voltage cables for mining applications. This ensures the cable meets stringent safety, electrical, and mechanical performance criteria. NRCS approval is critical, confirming adherence to South African regulatory requirements for safe and legal operation. The cable also aligns with international standards, such as those from the International Electrotechnical Commission (IEC) and the South African Bureau of Standards (SABS), ensuring compatibility with global mining equipment, which is vital for South Africa’s import-heavy mining sector.

Safety and Operational Benefits

Safety is paramount in mining, where electrical faults or fires can lead to catastrophic consequences. The Type 61A offers several safety and operational advantages:

• Enhanced Operator Safety: The EPR insulation and semi-conducting screens prevent electrical faults, reducing the risk of shocks or arc burns. Tinned copper conductors resist corrosion, ensuring consistent performance in humid or chemically aggressive environments.

• Prevention of Electrical Hazards: The flame-retardant sheath minimizes fire risks in confined underground spaces, while robust screening reduces EMI, preventing malfunctions in sensitive equipment.

• Long Service Life: The durable sheath and reinforcement reduce wear, lowering maintenance costs and downtime, critical for cost-conscious South African mines.

• Suitability for Harsh Environments: Resistance to chemicals, moisture, and UV radiation makes the Type 61A ideal for South Africa’s diverse mining conditions, from wet underground tunnels to sun-exposed open pits.

Common Technical Questions and Answers

Q: Why choose a 0.64/1.1kV cable instead of a higher voltage?

A: The 0.64/1.1kV rating is tailored for low to medium-power equipment like shuttle cars and drilling rigs, common in South African mines. Higher-voltage cables, like Type 66 (3.8/6.6kV), are used for larger machinery but require thicker insulation and more complex safety systems, increasing costs. The Type 61A offers a cost-effective, safe solution for smaller equipment.

Q: How can wear or damage on Type 61A cables be identified?

A: Regular inspections are essential. Look for cuts, abrasions, or exposed conductors in the outer sheath, discoloration from overheating, or reduced flexibility. Use a multimeter to check continuity and insulation resistance for internal damage. Replace damaged cables immediately to prevent electrical hazards.

Q: What are the best practices for installation and termination?

A: Installation: De-energize cables during installation to avoid shocks. Secure cables with cleats or hangers, adhering to SANS 1520-1 guidelines for minimum bending radii (typically 6 times the cable diameter). Termination: Use mining-specific cable glands and connectors for secure, waterproof connections. Avoid sharp bends at termination points to prevent insulation damage.

Q: How should Type 61A cables be handled in tight spaces or flexible routing?

A: The cable’s flexibility allows routing in confined areas, but excessive bending or twisting can damage conductors. Use cable chains or guides to manage routing, ensuring the cable stays within its bending radius. Regular inspections prevent wear in tight spaces.

Q: How can chemical exposure be managed in aggressive mine environments?

A: The polychloroprene/TPU sheath resists oils, greases, and acidic water. Regular cleaning removes chemical residues, and tinned conductors prevent corrosion. Store spare cables in dry, shaded areas to avoid degradation.

Conclusion:

The SANS Type 61A mining cable (0.64/1.1kV) is a vital cog in the machinery of South Africa’s mining industry, powering semi-mobile equipment like shuttle cars, drilling rigs, and continuous miners with unmatched reliability. Its tinned copper conductors, EPR insulation, and polychloroprene/TPU sheath ensure durability in the face of abrasive surfaces, chemical exposure, and extreme temperatures. Compliant with SANS 1520-1 and NRCS standards, it guarantees safety and performance in both underground and open-pit operations.

By addressing challenges like wear, chemical exposure, and tight-space routing, the Type 61A minimizes downtime and enhances worker safety, making it a trusted choice for South African mines. As the industry evolves with increasing automation and stricter safety regulations, choosing certified, durable cables like the Type 61A is essential for powering the machinery that unearths South Africa’s mineral wealth, ensuring the nation’s mines continue to thrive.
