What Are Crane Cables and Why Are They Essential for Heavy Industry?

Introduction

Crane cables are the backbone of heavy-duty lifting and handling systems, enabling the seamless operation of cranes, hoists, and other machinery across industries such as construction, manufacturing, mining, and marine operations. These specialized cables are designed to deliver power and control signals under demanding mechanical and environmental conditions, ensuring reliability and safety in dynamic industrial settings.

The evolution of crane cable technology reflects advancements in materials science and engineering. From early hemp-reinforced ropes to modern cables with robust sheathing and electromagnetic compatibility (EMC) screening, crane cables have adapted to meet the rigorous demands of modern industries. This article provides a comprehensive analysis of crane cables, exploring their types, features, applications, and challenges, offering valuable insights for engineers, industry professionals, and decision-makers seeking reliable electrical solutions for heavy machinery.

What Are Crane Cables?

Crane cables are specialized electrical cables engineered to power and control lifting and handling equipment, such as cranes, hoists, festoons, conveyors, and gantries. Unlike standard power cables, crane cables are designed to withstand extreme mechanical stresses, including traction, compression, abrasion, bending, and torsion, while maintaining flexibility and electrical integrity in harsh environments.

Core Components

Crane cables consist of several critical components:

• Conductors: Typically made of copper or tinned copper for high conductivity and corrosion resistance.

• Insulation: Materials like polyethylene (PUR), polyvinyl chloride (PVC), or rubber provide electrical isolation and protection.

• Sheathing: Robust outer layers, such as rubber, PUR, or neoprene, shield against mechanical wear, oils, chemicals, and environmental factors.

• Shielding: EMC screening protects against electromagnetic interference, ensuring stable signal transmission in environments with heavy machinery.

Comparison with Standard Cables

Standard power cables lack the durability and flexibility required for dynamic applications. Crane cables are engineered for repetitive motion, high tensile stress, and exposure to harsh conditions, making them ideal for mobile equipment like cranes and hoists. Their ability to handle simultaneous torsional and tensile stresses sets them apart, ensuring longevity and reliability in demanding industrial settings.

Types of Crane Cables

Crane cables are categorized by shape, voltage, and specialized applications, each tailored to specific operational needs.

By Shape: Flat Cables vs. Round Cables

• Flat Cables:

  • Advantages: Flat cables are space-efficient, ideal for applications with continuous bending, such as festoon systems or drag chains. Their design allows for compact stacking and reduced wear during repetitive motion.

  • Applications: Overhead cranes, conveyors, and material handling systems in factories and warehouses.

• Round Cables:

  • Advantages: Round cables are suited for vertical movements, offering robust tensile strength and flexibility for reeling applications.

  • Applications: Reel equipment, vertical cable movements in tower cranes, and mining operations.

By Voltage

• Low-Voltage Cables: Used for control signals and small-scale lifting equipment.

• Medium-Voltage Cables: Power medium-sized cranes and hoists in industrial settings.

• High-Voltage Cables: Designed for heavy-duty applications, such as large port cranes and stackers.

Specialized Types

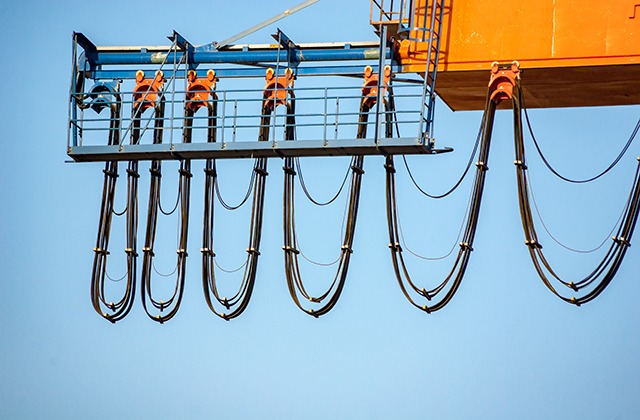

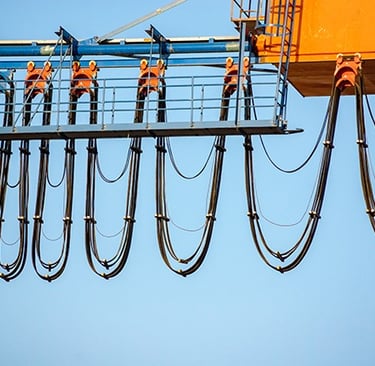

• Festoon Cables: Used in overhead cranes and suspension systems, festoon cables are designed for continuous bending and are often flat for space efficiency. They provide power and control signals in track-mounted systems.

• Spreader Cables: Tailored for port and container handling, these cables withstand high tensile stresses and harsh coastal environments.

• Pendant Cables: Used in control pendants for hoists, offering flexibility and durability for operator-controlled systems.

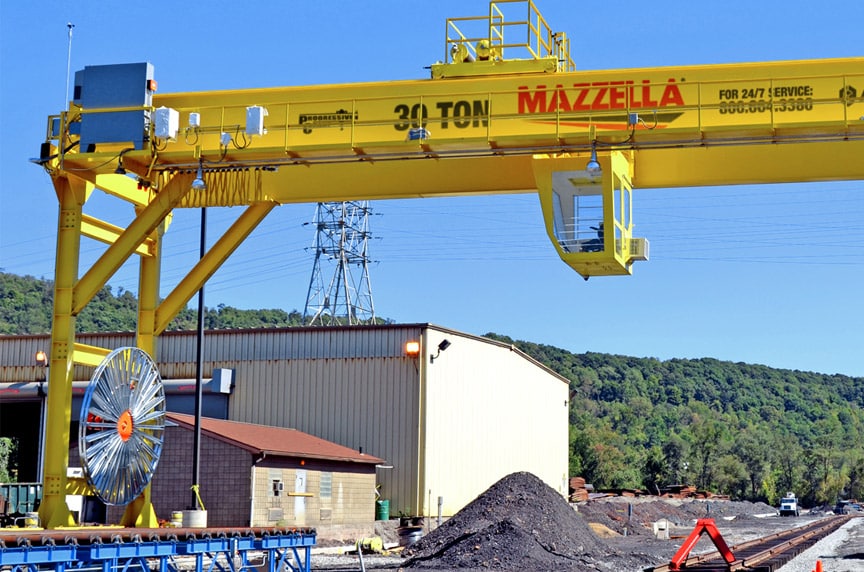

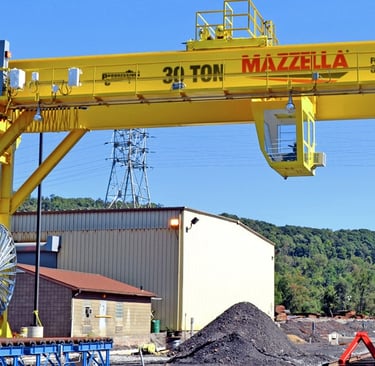

• Reel Cables: Engineered for winding and unwinding in mobile equipment, such as fast-running container cranes and reel systems.

• Other Variants: Include drag chain cables for automated systems, encoder cables for precise positioning, and bus cables for data transmission in networked machinery.

Key Features and Requirements

Crane cables are designed to meet stringent mechanical, environmental, and electrical requirements, ensuring reliable performance in challenging conditions.

Mechanical Properties

Crane cables endure significant mechanical stresses:

• Traction and Compression: Cables must withstand pulling and compressive forces during lifting and handling operations.

• Abrasion Resistance: Robust sheathing protects against wear from constant movement and contact with equipment.

• Bending and Torsion: Flexible conductors and stranding allow cables to endure repetitive bending and twisting without breaking.

• High Tensile Strength: Essential for supporting heavy loads and resisting splitting in vertical applications like crane baskets.

Environmental Resistance

Crane cables are built to withstand harsh environmental conditions:

• UV Protection: UV-resistant sheathing prevents degradation from prolonged sun exposure, critical for outdoor applications like tower cranes and port gantries.

• Moisture and Waterproofing: Cables are designed to resist water ingress, making them suitable for humid coastal areas and wet environments.

• Temperature Tolerance: Operable between -20°C and +70°C, with specialized materials like neoprene for high-temperature areas.

• Chemical and Oil Resistance: Sheathing materials like PUR and rubber protect against oils, greases, and aggressive chemicals common in industrial settings.

Electrical and Safety Features

• EMC Screening: Shields cables from electromagnetic interference, ensuring stable power and signal transmission in environments with heavy machinery.

• Flexibility: Highly versatile stranding (three to five times the cable diameter) supports continuous bending without compromising performance.

• Compliance with Standards: Crane cables meet industry standards for splitting resistance, tensile strength, and safety, ensuring reliability in critical applications.

Material Innovations

Modern crane cables incorporate advanced materials and designs:

• Neoprene: Used in high-temperature environments for enhanced durability.

• Strength Supports: Integrated into flat festoon cables to handle high tensile loads.

• Optic Fibers and Twisted Pairs: Enable data transmission and precise control in advanced systems.

• Custom Sheathing: PUR, PVC, or rubber sheathing tailored to specific environmental and operational needs.

Applications of Crane Cables

Crane cables are indispensable across a wide range of industries, powering and controlling heavy machinery in demanding environments.

Industrial Sectors

• Construction Sites: Tower cranes and overhead cranes rely on crane cables for lifting heavy materials.

• Factories and Warehouses: Overhead and bridge cranes use festoon and drag chain cables for material handling.

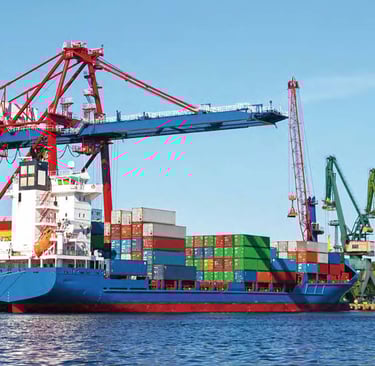

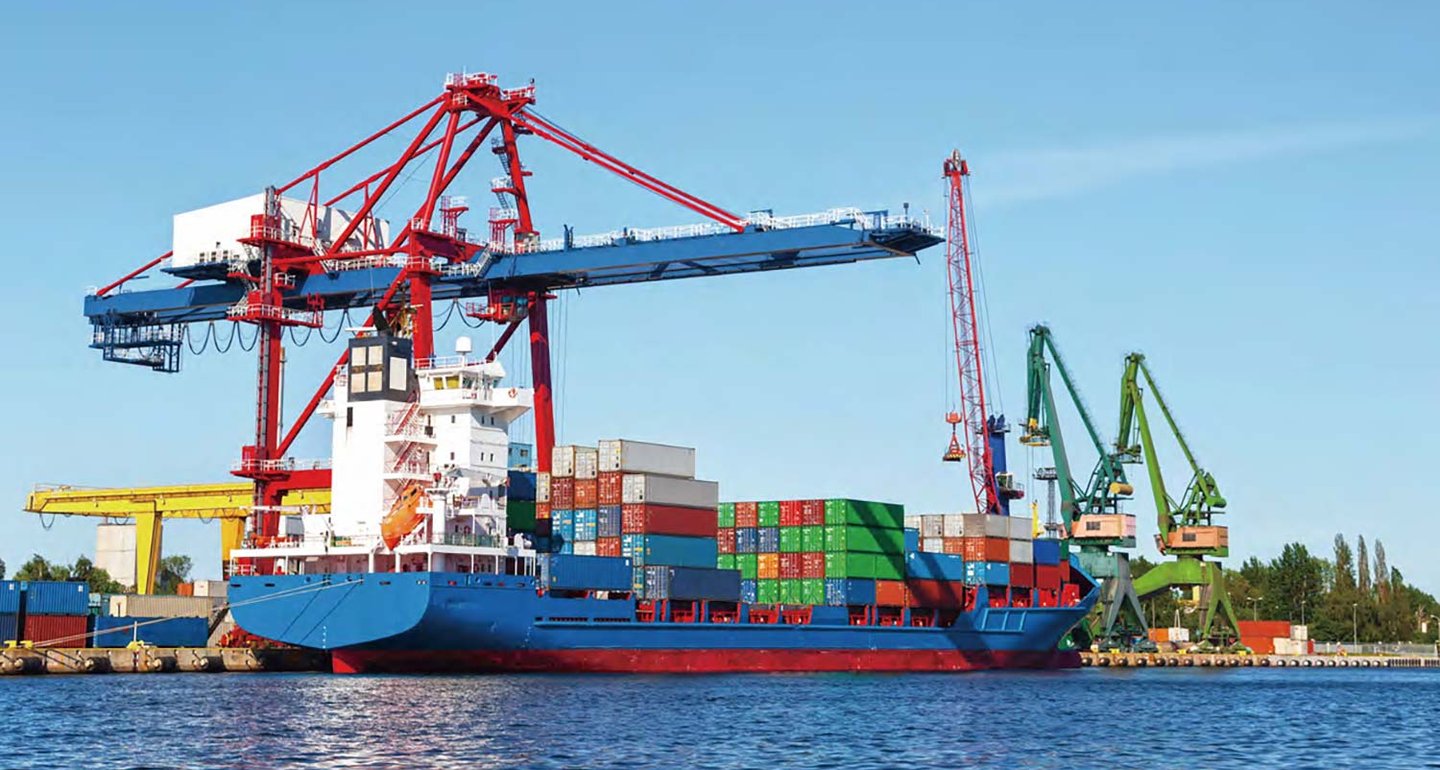

• Shipyards and Ports: Gantry cranes and spreader systems depend on robust cables for container handling.

• Mining: Reel cables and drag chain systems support heavy-duty equipment in harsh underground conditions.

• Other Sectors: Automotive manufacturing, robotics, lumber mills, and airport jetway systems utilize crane cables for precise and reliable operations.

Specific Use Cases

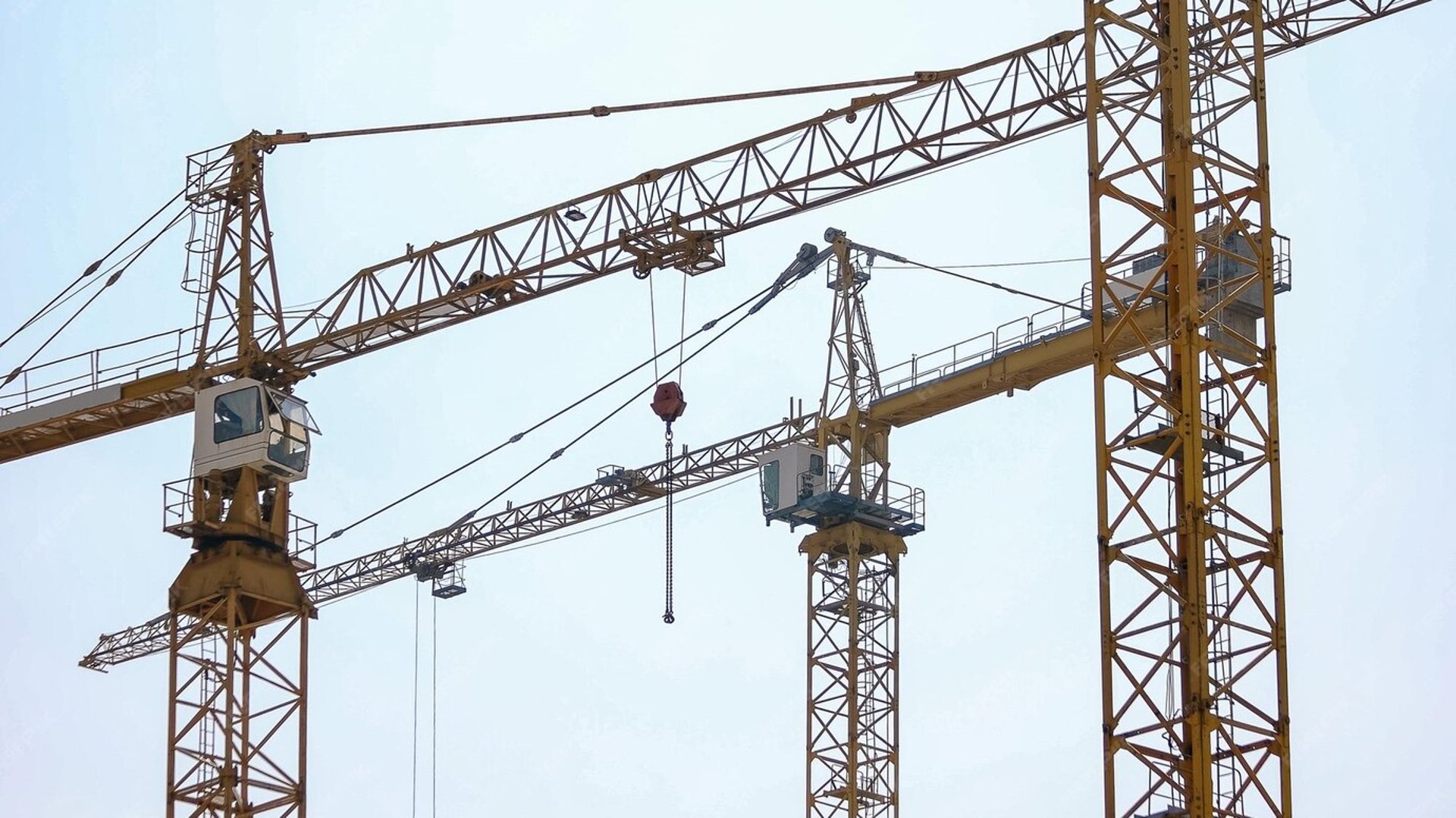

• Tower Cranes: Flat festoon cables provide power and control signals in construction cranes, handling continuous bending and outdoor exposure.

• Container Cranes: Spreader cables endure high tensile stresses and coastal humidity in port operations.

• Automotive Manufacturing: Drag chain cables support robotic arms and conveyors, ensuring flexibility and durability.

• Lumber Mills: Flat cables power material transport systems, resisting abrasion and environmental wear.

• Airport Jetway Systems: Pendant and festoon cables enable smooth operation of passenger boarding bridges.

Harsh Environments

Crane cables excel in challenging conditions:

• Humid Coastal Areas: Waterproof and UV-resistant cables withstand salty, moist environments in ports and shipyards.

• Extreme Weather: Temperature-tolerant cables perform reliably in freezing winters or scorching summers.

• Chemical Exposure: Oil- and chemical-resistant sheathing ensures longevity in factories and workshops.

Challenges in Crane Cable Usage and Solutions

Crane cables face significant challenges due to their demanding applications, but advanced engineering solutions address these issues effectively.

Common Challenges

• Mechanical Wear: Daily stresses from traction, bending, and abrasion can degrade cables over time.

• Environmental Degradation: Exposure to UV radiation, moisture, and chemicals can compromise cable integrity.

• Electromagnetic Interference: Nearby machinery can disrupt signal transmission, affecting performance.

• Installation Complexities: Integrating cables into dynamic systems like drag chains or festoon setups requires precision.

Engineering Solutions

• Tailor-Made Designs: Manufacturers like Feichun offer customized cables to meet specific mechanical and environmental requirements.

• Pre-Assembled Systems: Ready-to-use drag chain and festoon systems simplify installation and reduce downtime.

• Complete System Solutions: Integrated solutions combine cables, connectors, and accessories for seamless operation.

• Material Innovations: Advanced sheathing and stranding enhance durability and flexibility.

Maintenance and Longevity

To maximize crane cable lifespan:

• Regular Inspections: Check for signs of wear, such as abrasions, cuts, or insulation damage.

• Proper Storage: Store cables away from harsh conditions when not in use to prevent degradation.

• Timely Replacement: Replace worn cables promptly to avoid operational failures.

• Lubrication: Use compatible lubricants to reduce friction in reeling systems.

Case Studies

• Mining Operations: A South African mining company implemented Feichun’s reel cables, designed for high tensile strength and chemical resistance, reducing downtime by 30% in harsh underground conditions.

• Port Container Handling: A Durban port upgraded to Feichun’s spreader cables, which withstood coastal humidity and heavy loads, improving operational efficiency by 25%.

Leading Suppliers and Product Innovations

Feichun is a leading supplier of crane cables, offering a comprehensive portfolio tailored to heavy industry needs.

Product Portfolio

• Windable Cables: Designed for repetitive winding and unwinding in reel systems.

• Festoon Systems: Flat and round cables for overhead cranes and suspension systems.

• Control & Connection Cables: Support precise control in hoist and crane operations.

• Motor, Servo, and Encoder Cables: Enable accurate positioning and automation.

• Data, Network, and Bus Cables: Facilitate advanced communication in networked machinery.

Customization and System Integration

Feichun provides tailor-made solutions, including:

• Pre-Installed Drag Chain Systems: Ready-to-use setups for automated equipment.

• Custom Sheathing: Materials like PUR, PVC, or neoprene for specific environments.

• Integrated Strength Supports: Enhance cable durability in high-stress applications.

Quality Assurance

Feichun’s cables comply with international standards for tensile strength, splitting resistance, and environmental durability. Their engineering expertise ensures solutions are tailored to meet unique industrial challenges, from coastal ports to high-temperature manufacturing units.

Frequently Asked Questions (FAQ)

1. What makes crane cables different from regular power cables?
   Crane cables are engineered for dynamic applications, offering enhanced flexibility, tensile strength, and resistance to mechanical and environmental stresses, unlike standard cables designed for static use.

2. How do I choose between flat and round crane cables for my application?
   Flat cables are ideal for space-constrained systems with continuous bending, such as festoon setups. Round cables suit vertical movements and reeling applications requiring high tensile strength.

3. What temperature range can crane cables typically withstand?
   Most crane cables operate reliably between -20°C and +70°C, with specialized options like neoprene for higher temperatures.

4. Are crane cables suitable for outdoor use in harsh weather?
   Yes, crane cables are UV-resistant, waterproof, and temperature-tolerant, making them ideal for outdoor applications like tower cranes and port gantries.

5. How resistant are crane cables to oils, chemicals, and UV radiation?
   Sheathing materials like PUR, rubber, and neoprene provide excellent resistance to oils, chemicals, and UV radiation, ensuring durability in harsh environments.

6. What are festoon cables, and where are they commonly used?
   Festoon cables are flat or round cables used in overhead cranes and suspension systems, providing power and control signals in track-mounted setups, common in factories and warehouses.

7. Can crane cables be customized for specific industrial needs?
   Yes, manufacturers like Feichun offer tailored solutions, including custom sheathing, strength supports, and integrated systems for specific applications.

8. What maintenance is required for crane cables to ensure longevity?
   Regular inspections, proper storage, timely replacement, and lubrication of reeling systems are key to extending cable lifespan.

9. Are there EMC-screened options for crane cables, and why are they important?
   EMC-screened cables protect against electromagnetic interference, ensuring stable signal transmission in environments with heavy machinery.

10. How do crane cables handle repetitive winding and unwinding motions?
    Flexible stranding and robust sheathing allow crane cables to endure repetitive bending and torsion without compromising performance.

Conclusion

Crane cables are critical components in heavy industry, enabling the reliable operation of cranes, hoists, and material handling systems. Their ability to withstand mechanical stresses, harsh environments, and electromagnetic interference makes them indispensable in sectors like construction, mining, ports, and manufacturing. With advanced materials like neoprene, PUR, and rubber, and innovations like EMC screening and strength supports, crane cables offer unmatched durability and flexibility.

Looking ahead, the crane cable industry is poised for further advancements. Smart integration, such as IoT-enabled cables for real-time monitoring, and sustainable materials will enhance performance and environmental impact. For optimal solutions, consulting specialists like Feichun ensures access to tailor-made cables and systems that meet specific industrial challenges, delivering efficiency, safety, and reliability.
