What Are SANS Type 611 and 611-ECC Cables, and Why Are They Crucial for Open-Cast Mining?

Introduction

South Africa's mining industry forms the backbone of the nation's economy, with open-cast operations extracting precious minerals from the earth's surface across the country. From the gold mines of the Witwatersrand to the platinum operations in the Bushveld Complex, these massive undertakings require robust electrical infrastructure to power heavy machinery and ensure safe operations. At the heart of this electrical network are specialised medium-voltage cables designed to withstand the harsh conditions of mining environments.

Medium-voltage cables serve as the lifeline for mining operations, delivering power to critical equipment whilst maintaining safety standards in potentially hazardous areas. In South Africa, the SANS 1520-2 standards govern the specifications for these cables, ensuring they meet the rigorous demands of the mining sector. These standards are particularly crucial given the country's unique mining conditions, where cables must endure extreme temperatures, dust, moisture, and constant mechanical stress.

The purpose of this article is to provide a comprehensive understanding of SANS Type 611 and 611-ECC cables, exploring their construction, applications, and vital role in maintaining the efficiency and safety of open-cast mining operations throughout South Africa.

What Are SANS Type 611 and 611-ECC Cables?

Cable Structure and Components

SANS Type 611 and 611-ECC cables represent sophisticated engineering solutions specifically designed for the demanding requirements of mining applications. These cables feature a multi-layered construction that ensures both electrical performance and mechanical durability.

The conductor consists of Class 5 flexible stranded tinned annealed copper wires, providing excellent conductivity whilst maintaining flexibility essential for portable mining equipment. The conductors are manufactured with a left-hand lay configuration and incorporate a semi-conducting rubber screen that ensures even electrical field distribution around the conductor.

The insulation system utilises Ethylene Propylene Rubber (EPR) thermosetting compound, classified as type RD 3 according to SANS 1411-3 standards. This triple-extruded insulation includes a strippable semi-conducting core screen, which simplifies installation and maintenance whilst providing excellent electrical properties. The insulation screen comprises a braid of tinned copper wires that provides effective screening against electrical interference.

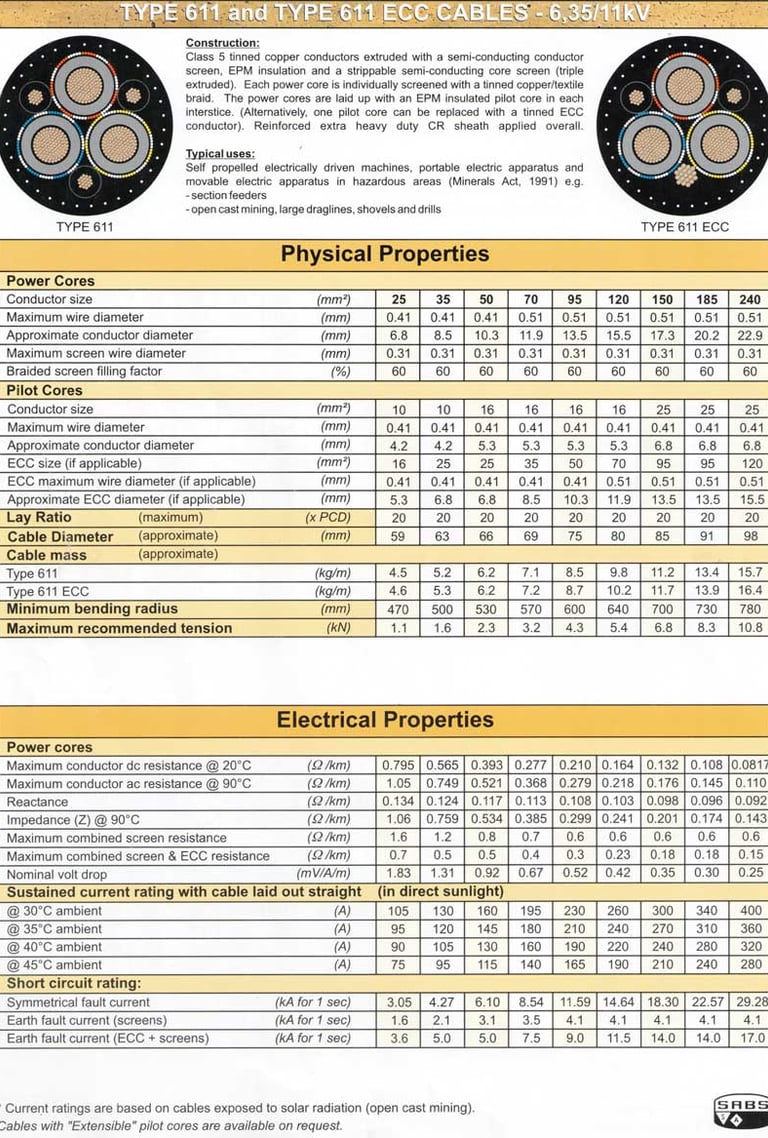

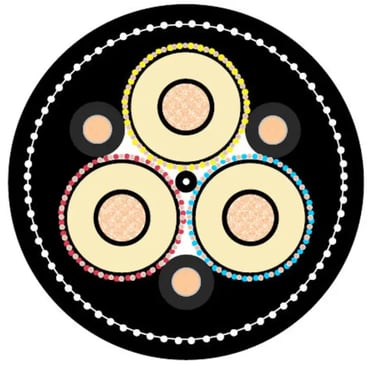

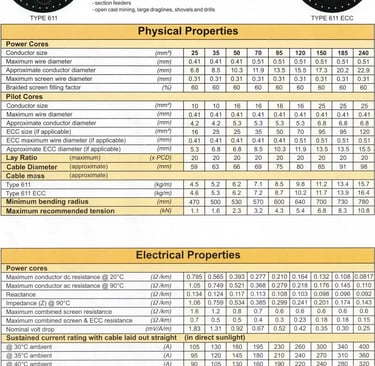

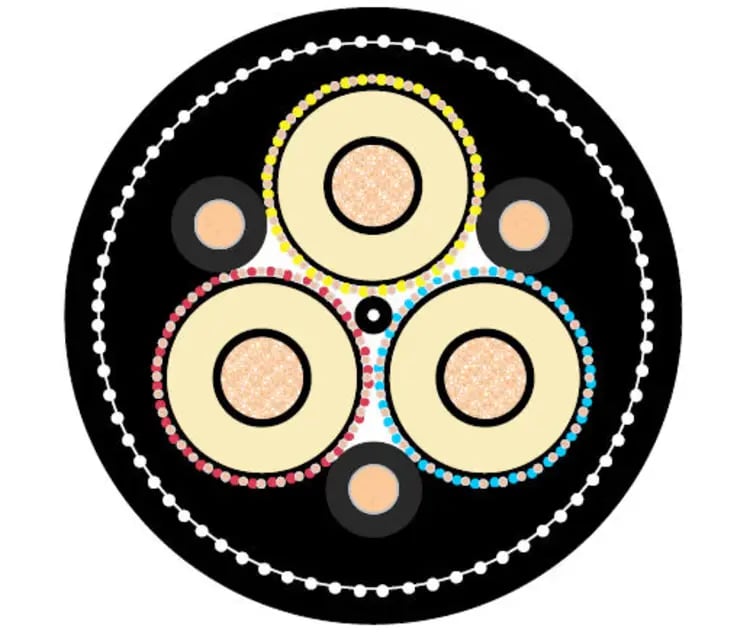

The cable assembly features three tinned copper/nylon braid screened power cores along with three unscreened pilot cores positioned in each interstice. These components are laid up in a right-hand configuration around a semiconductive filler centre, creating a balanced and robust cable structure.

Both inner and outer sheaths are manufactured from polychloroprene thermosetting compound (type RS 6), providing excellent resistance to oil, ozone, and UV radiation. The sheaths are bonded together to deliver proper torsional protection, crucial for cables that may be subjected to twisting forces during operation. A reinforcing braid made from open nylon construction with a minimum of 16 nylon strings provides additional mechanical protection.

Differences Between Type 611 and 611-ECC

The primary distinction between Type 611 and 611-ECC cables lies in the "ECC" designation, which stands for "Earth Continuity Conductor." In the 611-ECC variant, one of the pilot cores is replaced with a tinned conductor that serves as an additional earth continuity path.

This ECC conductor provides enhanced safety by ensuring continuous earth connection even if the primary earthing system fails. This feature is particularly valuable in hazardous mining environments where maintaining proper earthing is critical for personnel safety and equipment protection. The ECC conductor is sized appropriately to handle earth fault currents effectively, with sizes ranging from 16mm² to 120mm² depending on the power conductor size.

Voltage Rating and Application

Both cable types are rated for 6.35/11 kV operation, making them suitable for medium-voltage distribution systems commonly found in mining operations. The voltage rating of 6.35/11 kV indicates the cable can operate at 6.35 kV between conductor and earth, and 11 kV between conductors, providing flexibility in system design.

These cables are specifically designed for operation in temperatures ranging from -25°C to +90°C, accommodating the extreme temperature variations experienced in South African mining environments. The minimum bending radius is specified as 9 times the overall diameter, ensuring the cables can be routed through tight spaces without compromising their electrical or mechanical properties.

Applications in Open-Cast Mining and Hazardous Areas

Key Equipment Powered by These Cables

Open-cast mining operations rely heavily on massive mobile equipment that requires reliable power supply systems. SANS Type 611 and 611-ECC cables serve as the electrical lifeline for numerous critical pieces of equipment across mining sites.

Section feeders represent one of the most common applications for these cables. These feeders distribute power from main substations to various sections of the mine, ensuring that operations can continue efficiently across large mining areas. The cables must handle high currents whilst maintaining reliability in dusty, humid conditions typical of South African mining environments.

Medium-sized draglines, essential for overburden removal and ore extraction, depend on these cables for their power supply. These massive machines require consistent electrical power to operate their complex hydraulic and mechanical systems. The flexibility of Type 611 cables allows them to move with the dragline as it repositions around the mining area, whilst the robust construction ensures uninterrupted power delivery.

Electric shovels, used extensively in open-cast operations for loading ore and waste material, require cables that can withstand constant flexing and mechanical stress. The reinforced construction of Type 611 cables makes them ideal for this application, providing reliable power whilst accommodating the shovel's operational movements.

Mining drills, whether used for blasting preparation or exploration activities, often operate in remote areas of the mine site. The portability and durability of these cables make them perfect for supplying power to drilling equipment that must be repositioned frequently throughout the operation.

Specific Challenges of Open-Cast Mining

Open-cast mining presents unique challenges that standard industrial cables cannot address effectively. The scale of operations means that cables must often span considerable distances whilst maintaining voltage levels and power quality.

High voltage requirements are essential for powering the large motors and drive systems found in mining equipment. The 6.35/11 kV rating of Type 611 cables provides the necessary voltage levels whilst ensuring safe operation in accordance with South African electrical standards.

Environmental conditions in open-cast mines are particularly harsh. Dust levels can be extreme, particularly in dry conditions common in many South African mining regions. The polychloroprene outer sheath provides excellent protection against dust ingress, whilst the sealed construction prevents contamination of internal components.

Moisture presents another significant challenge, particularly during the rainy season. The cable's construction includes moisture barriers that prevent water ingress, whilst the materials used are resistant to humidity and condensation that can occur in mining environments.

Physical stress from equipment movement, vibration, and handling requires cables with exceptional mechanical properties. The flexible conductor construction combined with reinforced sheathing ensures these cables can withstand the constant physical demands of mining operations.

Importance of Safety in Hazardous Areas

Mining operations often involve hazardous areas where the risk of explosion or fire is elevated due to the presence of flammable gases, dust, or other dangerous substances. SANS Type 611 and 611-ECC cables are designed to operate safely in these environments.

The flame-retardant properties of the cable materials help prevent the spread of fire, whilst the robust construction minimises the risk of electrical faults that could serve as ignition sources. The ECC variant provides additional safety through enhanced earthing capabilities, ensuring that fault currents are safely conducted away from personnel and equipment.

Design Features and Benefits

Compliance with SANS 1520-2

Compliance with SANS 1520-2 standards ensures that Type 611 and 611-ECC cables meet the specific requirements of South African mining operations. These standards address the unique challenges faced by mining cables, including mechanical stress, environmental conditions, and safety requirements.

The standards specify requirements for conductor flexibility, insulation properties, screening effectiveness, and mechanical protection. By adhering to these standards, manufacturers ensure that their cables will perform reliably in the demanding conditions encountered in South African mines.

Testing requirements under SANS 1520-2 include electrical tests such as insulation resistance, voltage withstand, and conductor resistance measurements. Mechanical tests verify the cable's ability to withstand bending, impact, and tensile forces. Environmental tests confirm performance under temperature extremes, humidity, and chemical exposure.

Enhanced Durability and Safety

The design of Type 611 and 611-ECC cables incorporates multiple features that enhance their durability and safety in mining applications. The tinned copper conductors provide excellent corrosion resistance, crucial in the harsh chemical environment of mining operations.

The EPR insulation system offers superior electrical properties and maintains its characteristics over a wide temperature range. This ensures consistent performance whether the cable is operating in the hot conditions of a crusher station or the cooler environment of an underground conveyor system.

Fire resistance is achieved through the use of flame-retardant materials throughout the cable construction. The polychloroprene sheathing naturally resists ignition and self-extinguishes if exposed to flame, helping to prevent the spread of fire in mining facilities.

The screening system provides effective protection against electrical interference, ensuring that sensitive control systems and communication equipment can operate reliably even in the electromagnetically noisy environment of a mining operation.

Flexibility and Portability

The flexible construction of Type 611 cables makes them ideal for applications where portability is essential. The Class 5 conductor construction provides excellent flexibility whilst maintaining current-carrying capacity, allowing the cables to be coiled, moved, and repositioned as required.

The relatively small bending radius requirement means these cables can be routed through tight spaces and around obstacles commonly found in mining operations. This flexibility simplifies installation and maintenance whilst reducing the risk of cable damage during handling.

For reeling applications, where cables must be wound onto drums or reels for storage or transport, the flexible construction prevents damage to the conductor and insulation system. This capability is particularly valuable for portable mining equipment that must be moved frequently between different areas of the mine site.

Common Applications in Mining Operations

Powering Heavy Equipment

The primary application of SANS Type 611 and 611-ECC cables lies in powering the heavy mobile equipment that forms the backbone of open-cast mining operations. These cables must deliver substantial amounts of electrical power whilst maintaining flexibility and durability.

Draglines, some of the largest mobile equipment used in mining, require power ratings that can exceed several megawatts. The current-carrying capacity of Type 611 cables, ranging from 105A for 25mm² conductors to 400A for 240mm² conductors, ensures adequate power delivery for these massive machines. The flexible construction allows the cables to follow the dragline's movement patterns without restricting operation.

Electric rope shovels, used for loading ore and waste material, present similar power requirements but with additional demands for cable flexibility. These machines operate in a repetitive cycle that places constant stress on electrical connections. The reinforced construction of Type 611 cables ensures reliable power delivery throughout the shovel's operational life.

Conveyor systems, whilst not mobile, require cables that can handle the continuous operation and environmental exposure typical of mining applications. The UV resistance and mechanical protection provided by Type 611 cables make them suitable for conveyor installations, particularly in areas where standard industrial cables might fail prematurely.

Feeder Systems

Section feeders represent a critical application for Type 611 cables in mining operations. These systems distribute power from main substations to various sections of the mine, often spanning considerable distances across challenging terrain.

The medium-voltage rating of 6.35/11 kV allows efficient power transmission over these distances whilst minimising power losses. The screening system ensures that power quality remains high, even in the electrically noisy environment of a mining operation where large motors and switching equipment can create significant interference.

Feeder systems must often be reconfigured as mining operations progress and new areas are developed. The flexibility and durability of Type 611 cables facilitate these reconfigurations, allowing mining companies to adapt their electrical infrastructure to changing operational requirements without extensive cable replacement.

In many South African mining operations, feeder systems must operate continuously to maintain production schedules. The reliability of Type 611 cables, demonstrated through compliance with SANS 1520-2 standards, ensures that these critical power distribution systems can operate with minimal interruption.

Frequently Asked Questions

Q1: Why are SANS Type 611 and 611-ECC cables preferred in open-cast mining?

SANS Type 611 and 611-ECC cables are specifically designed to meet the unique challenges of open-cast mining operations. Their construction incorporates features that address the harsh environmental conditions, mechanical stress, and safety requirements encountered in mining environments.

The flexible conductor construction allows these cables to move with mobile equipment whilst maintaining electrical integrity. The robust sheathing system provides protection against dust, moisture, chemicals, and mechanical damage that would quickly degrade standard industrial cables.

Compliance with SANS 1520-2 standards ensures that these cables meet the specific requirements of South African mining operations, including performance under extreme temperature conditions and resistance to the chemicals commonly encountered in mining environments.

The voltage rating of 6.35/11 kV provides the necessary power levels for large mining equipment whilst ensuring safe operation in accordance with South African electrical standards. This combination of performance and safety makes Type 611 cables the preferred choice for mining applications.

Q2: What's the difference between Type 611 and Type 611-ECC cables?

The primary difference between Type 611 and Type 611-ECC cables lies in the earth continuity conductor (ECC) feature. In Type 611-ECC cables, one of the pilot cores is replaced with a tinned conductor that provides an additional earth path.

This ECC conductor enhances safety by ensuring continuous earth connection even if the primary earthing system fails. In mining environments where safety is paramount, this additional earthing capability provides an extra layer of protection for personnel and equipment.

The ECC conductor is sized appropriately to handle earth fault currents, with the size varying according to the power conductor size. For example, a 25mm² power conductor is paired with a 16mm² ECC conductor, whilst a 240mm² power conductor uses a 120mm² ECC conductor.

Both cable types share the same construction features, including flexible conductors, EPR insulation, and polychloroprene sheathing. The choice between Type 611 and Type 611-ECC depends on the specific safety requirements of the installation and local electrical code requirements.

Q3: Can these cables be used in other industries outside of mining?

Whilst SANS Type 611 and 611-ECC cables are specifically designed for mining applications, their robust construction and performance characteristics make them suitable for other demanding industrial applications.

Industries that involve heavy machinery, harsh environmental conditions, or hazardous areas can benefit from the durability and safety features of these cables. Examples include steel mills, chemical processing plants, port facilities, and heavy manufacturing operations.

The flexible construction makes these cables suitable for applications involving portable equipment or installations where cables must be moved or reconfigured regularly. The resistance to oil, chemicals, and UV radiation extends their applicability to outdoor installations and industrial environments where standard cables might fail.

However, it's important to note that the specific requirements of each application should be carefully evaluated to ensure that Type 611 cables are appropriate. Factors such as voltage requirements, current ratings, environmental conditions, and safety standards must all be considered when selecting cables for non-mining applications.

Q4: How do these cables withstand harsh conditions in hazardous areas?

SANS Type 611 and 611-ECC cables incorporate multiple design features that enable them to operate safely in hazardous areas commonly found in mining operations. The flame-retardant properties of the cable materials help prevent ignition and limit fire spread.

The polychloroprene sheathing provides excellent resistance to chemicals, oils, and solvents that might be present in mining environments. This chemical resistance prevents degradation of the cable sheath that could lead to electrical faults or safety hazards.

The screening system provides effective protection against electrical interference whilst also containing any electrical fields that might serve as ignition sources in explosive atmospheres. The continuous screening ensures that electrical energy is properly contained within the cable structure.

The robust mechanical construction prevents damage that could expose internal components to the environment. The reinforced sheathing and protective braiding ensure that the cable maintains its integrity even when subjected to the mechanical stresses common in mining operations.

Temperature resistance allows these cables to operate in extreme conditions, from the sub-zero temperatures of high-altitude mining operations to the high temperatures found near processing equipment. This temperature range ensures reliable operation across the diverse conditions encountered in South African mining operations.

Q5: What maintenance is required for these cables to ensure their longevity?

Regular maintenance of SANS Type 611 and 611-ECC cables is essential to ensure their continued performance and safety in mining operations. A comprehensive maintenance programme should include visual inspections, electrical testing, and mechanical assessments.

Visual inspections should be conducted regularly to check for signs of mechanical damage, chemical attack, or excessive wear. Particular attention should be paid to areas where cables are subject to movement or potential damage from mining equipment. Any damage to the outer sheath should be promptly repaired to prevent moisture ingress or further degradation.

Electrical testing should include insulation resistance measurements, conductor resistance checks, and continuity testing of screening systems. These tests should be performed using calibrated equipment and compared to baseline measurements taken when the cables were first installed.

Mechanical assessments should evaluate the flexibility and integrity of the cable construction, particularly for cables used in mobile applications. Any signs of conductor fatigue or insulation degradation should be investigated and addressed promptly.

Proper storage and handling practices are crucial for maintaining cable integrity. Cables should be stored in clean, dry conditions and protected from direct sunlight and extreme temperatures. When handling cables, care should be taken to avoid exceeding the minimum bending radius and to prevent damage from sharp objects or heavy equipment.

Conclusion

SANS Type 611 and 611-ECC cables represent the pinnacle of engineering design for mining applications, combining advanced materials technology with robust construction to meet the demanding requirements of open-cast mining operations. Their sophisticated multi-layered construction, featuring flexible tinned copper conductors, EPR insulation, and reinforced polychloroprene sheathing, ensures reliable performance in the harsh conditions encountered in South African mining environments.

The compliance with SANS 1520-2 standards demonstrates their suitability for the unique challenges of mining operations, from powering massive draglines and electric shovels to providing reliable section feeder services across extensive mining sites. The enhanced safety features, particularly the earth continuity conductor in the ECC variant, provide additional protection in hazardous areas where safety is paramount.

The flexibility and portability of these cables make them ideal for the mobile equipment that forms the backbone of modern mining operations, whilst their durability ensures long-term reliability in applications where cable failure can result in significant operational disruption and safety hazards.

As South Africa's mining industry continues to evolve and modernise, the role of reliable electrical infrastructure becomes increasingly critical. SANS Type 611 and 611-ECC cables provide the foundation for safe, efficient mining operations, enabling the extraction of valuable resources whilst maintaining the highest standards of safety and reliability.

The investment in quality cables designed specifically for mining applications pays dividends through reduced maintenance costs, improved safety performance, and enhanced operational reliability. For mining companies seeking to optimise their electrical infrastructure, these cables represent a proven solution that has been tested and refined through decades of use in some of the world's most challenging mining environments.

Call to Action

Selecting the right cables for mining operations requires careful consideration of numerous factors, including power requirements, environmental conditions, safety standards, and operational demands. The complexity of modern mining operations means that cable selection should not be undertaken without expert guidance.

We encourage mining operators, electrical engineers, and maintenance professionals to consult with qualified cable specialists who understand the specific requirements of South African mining operations. These experts can provide detailed technical support, helping to ensure that cable selections meet both current operational needs and future expansion requirements.

For specific recommendations regarding SANS Type 611 and 611-ECC cables for your mining operation, contact certified cable suppliers who can provide detailed technical specifications, installation guidance, and ongoing support. Professional consultation ensures that your electrical infrastructure provides the reliability, safety, and performance that modern mining operations demand.

The investment in proper cable selection and installation pays dividends through improved operational efficiency, enhanced safety performance, and reduced maintenance costs. Don't compromise on the electrical infrastructure that powers your mining operation – consult with experts to ensure you have the right cables for your specific application.
