What Are the Key Differences Between H07RN-F and SANS Mining Cables?

Introduction: Why the Right Cable Matters in South Africa

When it comes to electrical installations in South Africa's mining industry, choosing the right cable can mean the difference between operational success and catastrophic failure. The tragic incidents that have plagued our mining sector over the years often stem from inadequate electrical infrastructure, making cable selection a critical safety consideration.

Two cable types frequently discussed in industrial circles are H07RN-F cables and SANS mining cables. While both serve electrical applications, they're designed for vastly different environments and regulatory requirements. Understanding these differences isn't just about technical specifications—it's about ensuring worker safety, regulatory compliance, and operational efficiency in one of South Africa's most demanding industries.

The choice between H07RN-F and SANS mining cables affects everything from initial installation costs to long-term maintenance, safety records, and legal compliance. With South Africa's mining industry contributing significantly to the economy, particularly in gold and platinum production, making informed cable choices has never been more crucial.

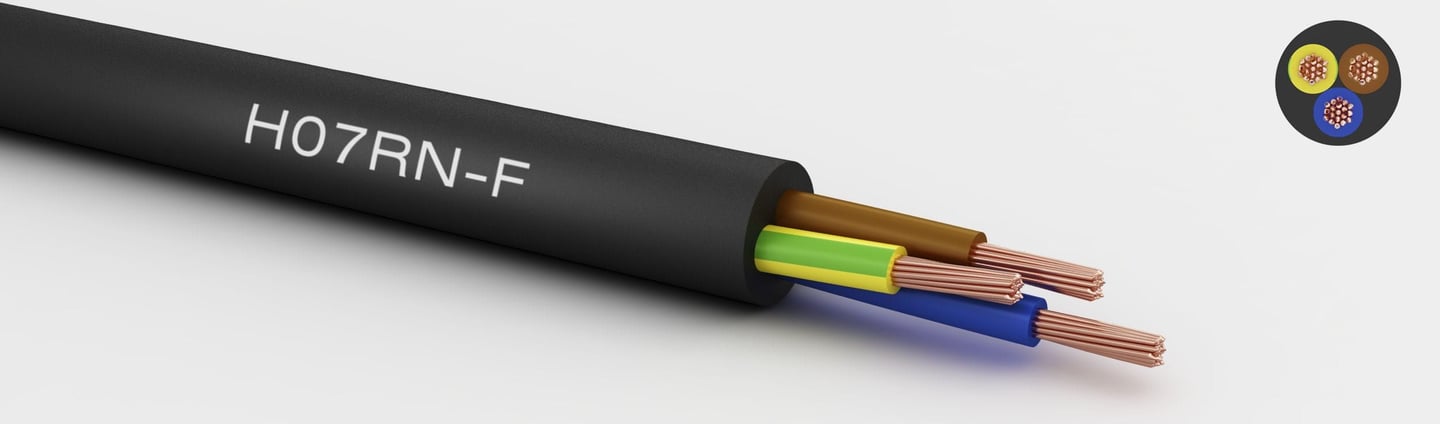

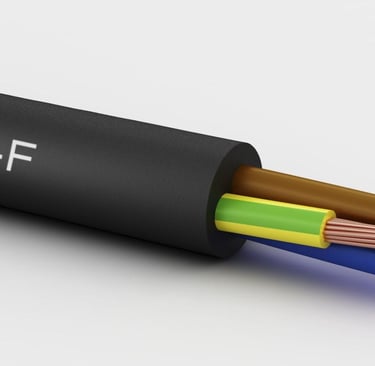

What Is H07RN-F Cable?

H07RN-F cable represents a standard European flexible cable design that complies with IEC 60245 and EN 50525 standards. The designation itself tells a story: "H07" indicates a harmonised European cable rated for 450/750V, whilst "RN-F" specifies rubber insulation with a neoprene sheath in flexible construction.

This cable type was originally designed for portable tools, light industrial applications, and temporary installations. Common applications include powering construction equipment, generators, workshop tools, and temporary lighting systems. The cable's primary strengths lie in its flexibility, affordability, and ease of installation, making it popular for above-ground applications where mobility is required.

H07RN-F cables typically feature stranded copper conductors with rubber insulation (often ethylene propylene rubber) and a polychloroprene (neoprene) outer sheath. This construction provides reasonable protection against moisture, oils, and moderate mechanical stress, making it suitable for many industrial applications.

However, when considering mining applications, H07RN-F cables face significant limitations. They're not designed to withstand the extreme mechanical stress, continuous abrasion, and harsh environmental conditions typical of mining operations. The voltage rating of 450/750V may also be insufficient for high-power mining equipment, and the cable lacks the specialised fire resistance and water blocking properties required in underground environments.

What Are SANS Mining Cables?

SANS mining cables represent a specialised category of electrical cables designed specifically for South Africa's mining industry. These cables must comply with SANS 1520-1 standards and meet National Regulator for Compulsory Specifications (NRCS) requirements, ensuring they can withstand the unique challenges of mining environments.

The SANS 1520-1 standard defines various cable types, including Type 41 (flexible multicore cables), Type 61A (trailing cables for mobile equipment), Type 611 (reeling cables), and Type 63 (high-voltage cables). Each type is engineered for specific mining applications, from underground installations to mobile equipment and high-voltage distribution systems.

SANS mining cables are designed with robust construction featuring enhanced mechanical strength, superior fire resistance, and advanced water blocking capabilities. Many incorporate steel wire armouring or enhanced sheath materials to resist crushing, impact, and continuous flexing. The insulation systems often include cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) compounds specifically formulated for mining conditions.

These cables offer significant advantages over general-purpose cables. Their mechanical strength allows them to withstand the weight of heavy mining equipment and continuous movement. Fire resistance properties meet strict underground safety requirements, whilst water blocking technology prevents moisture ingress that could cause electrical failures. Various armouring options provide additional protection against mechanical damage and electromagnetic interference.

Crucially, SANS mining cables are a legal requirement for registered mining operations in South Africa. This isn't merely a recommendation—it's a mandatory specification that ensures compliance with mining safety regulations and worker protection standards.

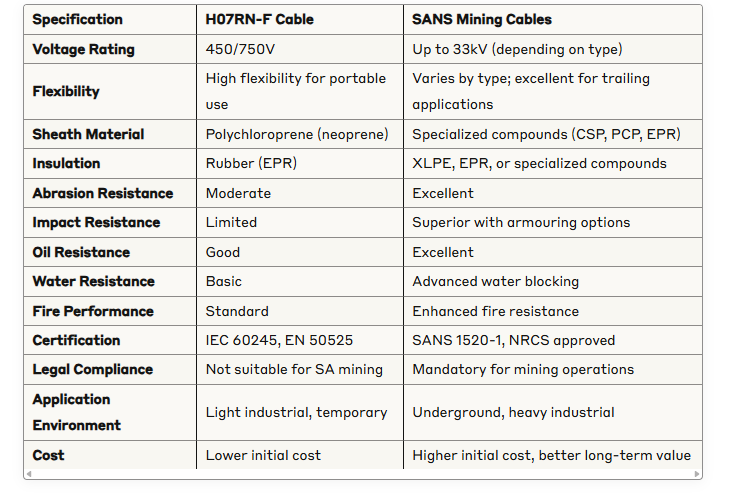

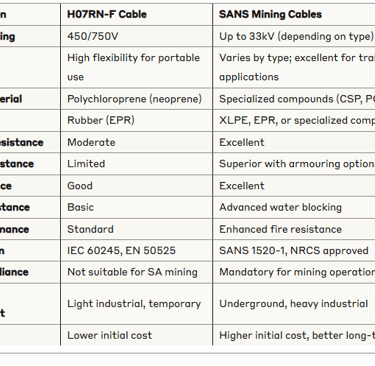

Side-by-Side Comparison Table

Real-World Applications: What Works Best Where?

Understanding where each cable type excels helps clarify the practical implications of your choice. H07RN-F cables perform excellently in applications such as small compressors, portable welders, temporary site lighting, and construction equipment. Their flexibility and cost-effectiveness make them ideal for above-ground applications where mobility is required but extreme conditions aren't encountered.

SANS mining cables, however, are specifically engineered for demanding applications including mobile mining equipment, reeling systems for continuous miners, high-capacity pumps, and underground installations. Their robust construction handles the mechanical stress of heavy machinery whilst providing the electrical performance needed for high-power operations.

South African gold and platinum mines present particularly challenging environments. The deep underground conditions, high temperatures, moisture, and continuous mechanical stress make SANS cables essential. A recent case study from a platinum mine in Limpopo province illustrates this perfectly. The mine initially used H07RN-F cables for trailing applications on mobile equipment, experiencing frequent failures due to mechanical damage and moisture ingress.

After replacing these with SANS Type 61A trailing cables, the mine reported a 75% reduction in electrical failures and significantly improved safety records. The Type 61A cables' enhanced mechanical strength and water blocking capabilities proved crucial in the challenging underground environment. This real-world example demonstrates why SANS cables aren't just recommended—they're essential for reliable mining operations.

The economic impact extended beyond reduced failures. Fewer cable replacements meant less downtime, improved productivity, and enhanced worker safety. The mine's electrical engineer noted that whilst the initial investment was higher, the total cost of ownership proved significantly lower due to reduced maintenance and replacement requirements.

Legal and Safety Considerations in South Africa

The National Regulator for Compulsory Specifications (NRCS) plays a crucial role in ensuring electrical safety in South African mining operations. NRCS regulations specifically require that cables used in mining applications meet SANS standards, making this more than just a technical preference—it's a legal requirement.

IEC cables like H07RN-F, whilst meeting international standards, may not pass South African mining inspections. This creates significant compliance risks for mining operations. Using non-compliant cables can result in regulatory penalties, operational shutdowns, and serious safety risks.

Insurance and liability considerations add another layer of complexity. Many insurance policies specifically exclude coverage for incidents involving non-compliant electrical equipment. Using H07RN-F cables in mining applications could void insurance coverage, leaving operators financially exposed to accidents and equipment failures.

The Department of Mineral Resources and Energy (DMRE) regularly conducts inspections of mining operations, focusing heavily on electrical safety systems. Non-compliant cables represent a serious violation that can result in immediate shutdown orders and substantial penalties. Recent enforcement actions have emphasised the importance of proper cable selection in maintaining operating licences.

Cost vs. Risk: Which Is the Smarter Investment?

When evaluating cable options, the initial purchase price represents only a fraction of the total cost of ownership. H07RN-F cables typically cost 30-50% less than equivalent SANS mining cables, making them attractive for budget-conscious operations. However, this apparent savings often proves illusory when considering the full operational picture.

Maintenance costs in mining environments heavily favour SANS cables. The harsh conditions that quickly degrade H07RN-F cables have minimal impact on properly specified SANS cables. A typical H07RN-F cable might require replacement every 6-12 months in demanding mining applications, whilst SANS cables often operate reliably for 5-10 years or more.

Downtime costs represent the most significant factor in cable selection decisions. Mining operations generate substantial revenue per hour, making unplanned electrical failures extremely expensive. A single cable failure can cost thousands of rands in lost production, far exceeding any initial savings from choosing cheaper cables.

The long-term performance and replacement cycle heavily favour SANS cables. Their superior construction provides consistent performance over extended periods, reducing maintenance requirements and improving operational reliability. This translates to lower total operating costs and improved productivity.

Safety considerations add another dimension to cost analysis. Electrical incidents in mining operations can result in injuries, fatalities, and massive legal liability. The enhanced safety features of SANS cables—including superior fire resistance and mechanical protection—provide crucial risk mitigation that cannot be quantified purely in monetary terms.

Frequently Asked Questions (FAQ)

1. Can I use H07RN-F in a South African mine? No, H07RN-F cables are not compliant with SANS 1520-1 standards required for South African mining operations. Using these cables in mining applications violates NRCS regulations and creates serious safety and legal risks.

2. What's the voltage limit for H07RN-F vs. SANS cables? H07RN-F cables are rated for 450/750V, whilst SANS mining cables can handle voltages up to 33kV depending on the specific type. This makes SANS cables suitable for high-power mining equipment that H07RN-F cannot support.

3. Are SANS mining cables more expensive? Yes, SANS mining cables typically cost 30-50% more initially than H07RN-F cables. However, their superior durability and longer service life often result in lower total cost of ownership over time.

4. What happens if I use non-certified cables in mining? Using non-certified cables in mining operations can result in regulatory penalties, operational shutdowns, voided insurance coverage, and serious safety risks. DMRE inspections specifically check for compliance with SANS standards.

5. Where can I buy SANS-approved cables in South Africa? SANS-approved cables are available through specialised electrical distributors and mining equipment suppliers. Always verify NRCS certification and ensure cables meet the specific SANS 1520-1 type requirements for your application.

Conclusion: Making the Right Cable Choice for Your Operation

The choice between H07RN-F and SANS mining cables ultimately depends on your specific application requirements, regulatory obligations, and risk tolerance. For general industrial applications outside mining, H07RN-F cables offer excellent value and performance. However, for mining operations, SANS cables are not just preferable—they're mandatory.

The key considerations include operational environment, safety requirements, regulatory compliance, and long-term cost implications. Mining operations must prioritise SANS-compliant cables to ensure worker safety, regulatory compliance, and operational reliability. The initial cost premium is quickly offset by improved performance, reduced maintenance, and enhanced safety.

When selecting cables for your operation, consider the specific environmental conditions, electrical requirements, and regulatory obligations. Mining environments demand the superior mechanical protection, fire resistance, and water blocking capabilities that only SANS cables provide.

For any doubt about cable selection, always consult SANS standards and work with certified suppliers who understand the specific requirements of your application. The investment in proper cable selection pays dividends in safety, reliability, and operational efficiency—making it one of the most important decisions in electrical system design.

Remember that electrical safety in mining operations isn't just about compliance—it's about protecting lives and ensuring sustainable operations. Choose wisely, and your cables will provide years of reliable service in even the most demanding conditions.
