What Are Type 622 and Type 622 ECC Cables and Why Are They Essential in 12.7/22kV Mining Applications?

Introduction

South Africa's mining industry forms the backbone of the nation's economy, with operations spanning from the gold mines of the Witwatersrand to the platinum belt of the Bushveld Complex. These massive operations require robust, reliable power distribution systems capable of handling the extreme demands of heavy machinery, mobile equipment, and harsh environmental conditions. At the heart of these systems lies the critical need for high-voltage power distribution, particularly in the 12.7/22kV range that powers draglines, shovels, mobile substations, and other essential mining equipment.

The success of any mining operation depends heavily on the reliability and safety of its electrical infrastructure. Power failures can result in significant production losses, equipment damage, and most critically, safety hazards for personnel working in already dangerous environments. This is where specialised cables like Type 622 and Type 622 ECC become indispensable components of the mining electrical ecosystem.

Type 622 and Type 622 ECC cables represent a specialised category of medium-voltage cables specifically engineered for the demanding requirements of South African mining operations. These cables must withstand constant mechanical stress, extreme temperatures, chemical exposure, and the abrasive conditions that characterise mining environments. Their design incorporates decades of engineering expertise and real-world testing in some of the world's most challenging mining conditions.

Understanding Type 622 and Type 622 ECC Cables

Voltage Rating and Classification

Type 622 cables are classified as medium-voltage cables with a voltage rating of 12.7/22kV. This rating indicates the cable's ability to safely operate at voltages up to 12.7kV between conductor and earth, or 22kV between conductors in a three-phase system. This voltage level is particularly suited for mining applications where substantial power transmission is required over relatively short distances, such as from mobile substations to heavy machinery or between different sections of a mining operation.

The 12.7/22kV rating places these cables in the medium-voltage category, which is ideal for mining applications that require more power than low-voltage systems can provide, but don't necessitate the complexity and cost of high-voltage transmission systems. This voltage level offers an optimal balance between power transmission capacity and system complexity, making it perfect for the dynamic nature of mining operations where equipment frequently moves and power requirements change rapidly.

Structural Overview

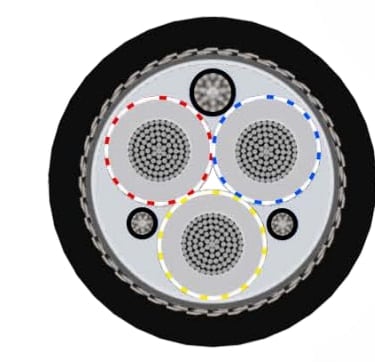

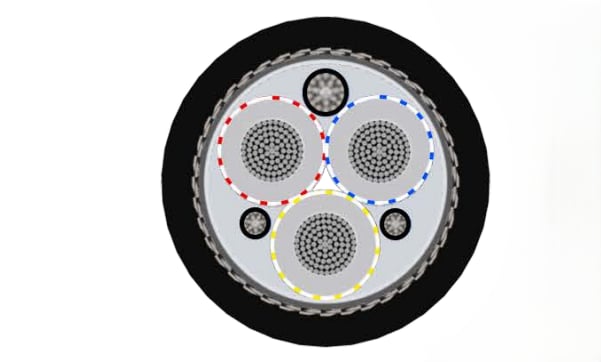

The construction of Type 622 cables reflects the demanding requirements of mining applications. The conductor consists of Class 5 flexible stranded copper, which provides excellent conductivity while maintaining the flexibility necessary for dynamic applications. Class 5 stranding offers superior flexibility compared to solid or less flexible stranded conductors, making it ideal for applications where the cable must bend repeatedly or be wound on reeling drums.

The insulation system employs EPR (Ethylene Propylene Rubber), a material specifically chosen for its excellent electrical properties and resistance to environmental degradation. EPR insulation maintains its properties across a wide temperature range and provides excellent resistance to water absorption, ozone exposure, and chemical attack – all common challenges in mining environments.

The bedding and sheath utilise CSP (Chlorosulphonated Polyethylene), which offers exceptional resistance to oil, chemicals, and abrasion. This outer protection is crucial in mining applications where cables may be exposed to hydraulic fluids, cutting oils, and the general contamination present in mining environments. The CSP sheath also provides excellent resistance to UV radiation, important for cables that may be exposed to sunlight during surface mining operations.

Reinforcement comes in the form of tinned copper wire braid or armour, providing mechanical protection and serving as an earth path. The tinned copper construction prevents corrosion whilst maintaining excellent electrical conductivity, ensuring the earthing system remains effective throughout the cable's service life.

What Makes ECC Different?

The ECC designation stands for Earth Continuity Conductor, representing a significant advancement in mining cable safety technology. Type 622 ECC cables incorporate an additional central pilot or earth monitoring core that enables continuous monitoring of the earth connection integrity. This feature addresses one of the most critical safety concerns in mining electrical systems – the potential loss of earth continuity.

In mining environments, equipment and personnel safety depends heavily on effective earthing systems. The ECC component allows for real-time monitoring of earth continuity, providing immediate indication if the earthing system becomes compromised. This capability is particularly valuable in applications where cable damage might occur due to mechanical stress, crushing, or cutting, as it provides early warning before a complete earth failure occurs.

The inclusion of the ECC component makes these cables particularly suitable for applications where electrical fault detection is critical, such as mobile equipment that operates in areas where personnel might be present. The ability to monitor earth continuity in real-time significantly enhances the safety profile of mining operations, allowing for immediate response to potential earth faults before they become dangerous.

Key Applications in South Africa

South Africa's diverse mining landscape presents unique challenges that Type 622 and Type 622 ECC cables are specifically designed to address. In open-cast operations like those found in the Northern Cape's iron ore mines or the Free State's gold mining operations, these cables must withstand extreme temperature variations, from freezing winter mornings to scorching summer afternoons, whilst maintaining reliable electrical performance.

Underground mining applications, particularly in the deep gold mines of the Witwatersrand, present different challenges. Here, cables must operate in confined spaces with high humidity, potential water ingress, and the constant threat of mechanical damage from mining equipment and rock movement. The robust construction of Type 622 cables, with their CSP sheathing and reinforced construction, provides the durability necessary for these challenging environments.

Mobile substations represent another critical application area. These units must be positioned and repositioned frequently as mining operations progress, requiring cables that can withstand the mechanical stress of repeated installation and removal. The flexibility of Class 5 stranded copper conductors combined with the durability of EPR insulation makes Type 622 cables ideal for these applications.

Draglines and shovels, the workhorses of surface mining operations, require cables that can handle both the electrical demands of high-power motors and the mechanical stress of constant movement. These massive machines operate continuously in harsh environments, and cable failure can result in costly downtime and safety hazards. The ECC variant is particularly valuable in these applications, as it provides continuous monitoring of earth integrity even as the equipment moves and operates.

The harsh environmental conditions present in South African mining operations – from the corrosive effects of mine water to the abrasive nature of coal dust and ore particles – require cables with exceptional environmental resistance. Type 622 cables' CSP sheathing and EPR insulation provide the chemical and mechanical resistance necessary to maintain performance in these challenging conditions.

Compliance and Standards

Compliance with South African National Standards (SANS) is not merely a regulatory requirement but a critical safety imperative in mining operations. Type 622 and Type 622 ECC cables are designed and manufactured to align with SANS 1520-1, which specifies the requirements for medium-voltage cables used in industrial applications.

SANS 1520-1 compliance ensures that cables meet rigorous standards for electrical performance, mechanical strength, and environmental resistance. This standard covers critical aspects such as conductor construction, insulation thickness, sheath composition, and overall cable dimensions. Compliance with this standard provides mining operators with confidence that their cables will perform reliably in the demanding conditions typical of South African mining operations.

NRCS (National Regulator for Compulsory Specifications) certification represents another layer of quality assurance. This certification process involves comprehensive testing of cables to ensure they meet not only South African standards but also international best practices for mining cable performance. NRCS certification provides independent verification of cable quality and performance characteristics.

The flame-retardant properties of Type 622 cables are particularly important in mining applications where fire risk is a constant concern. The materials used in these cables are specifically chosen to resist ignition and to self-extinguish if exposed to flame, helping to prevent the spread of fire in the event of an electrical fault or external fire source.

Oil resistance is another critical compliance feature, as mining equipment frequently operates in environments where hydraulic fluids, lubricants, and other oils are present. The CSP sheathing provides excellent resistance to oil penetration, ensuring that cable performance is not compromised by exposure to these substances.

UV resistance ensures that cables maintain their properties even when exposed to intense sunlight, a common condition in South African surface mining operations. This resistance prevents premature aging and degradation of cable materials, extending service life and maintaining safety standards.

Benefits and Performance Characteristics

The high flexibility of Type 622 cables represents one of their most significant advantages in mining applications. This flexibility stems from the Class 5 stranded copper construction, which allows cables to bend repeatedly without conductor damage. This characteristic is particularly valuable in applications involving cable reeling drums, where cables must be wound and unwound frequently as equipment moves.

The flexibility also extends to installation advantages. Mining operations often require cables to be routed through complex paths, around obstacles, and through tight spaces. The ability to bend and flex without damage simplifies installation and reduces the risk of cable damage during setup.

Long service life in abrasive and chemical environments represents another key benefit. The combination of EPR insulation and CSP sheathing provides exceptional resistance to the environmental challenges common in mining operations. This durability translates to reduced maintenance costs, fewer cable replacements, and improved operational reliability.

The superior earthing and monitoring capabilities of the ECC variant provide enhanced safety benefits that are difficult to quantify but critically important. The ability to continuously monitor earth continuity provides early warning of potential problems, allowing for proactive maintenance and reducing the risk of dangerous electrical faults.

Compatibility with automatic cable reeling equipment is another significant advantage. Modern mining operations increasingly rely on automated systems to improve efficiency and reduce personnel exposure to hazardous conditions. Type 622 cables are designed to work seamlessly with automatic reeling systems, maintaining their electrical and mechanical properties through thousands of reeling cycles.

The temperature performance of these cables is particularly noteworthy. They maintain their electrical and mechanical properties across a wide temperature range, from the sub-zero conditions that can occur in high-altitude mining operations to the elevated temperatures found in deep underground mines or in equipment compartments heated by powerful machinery.

Technical Specifications

Type 622 Cable

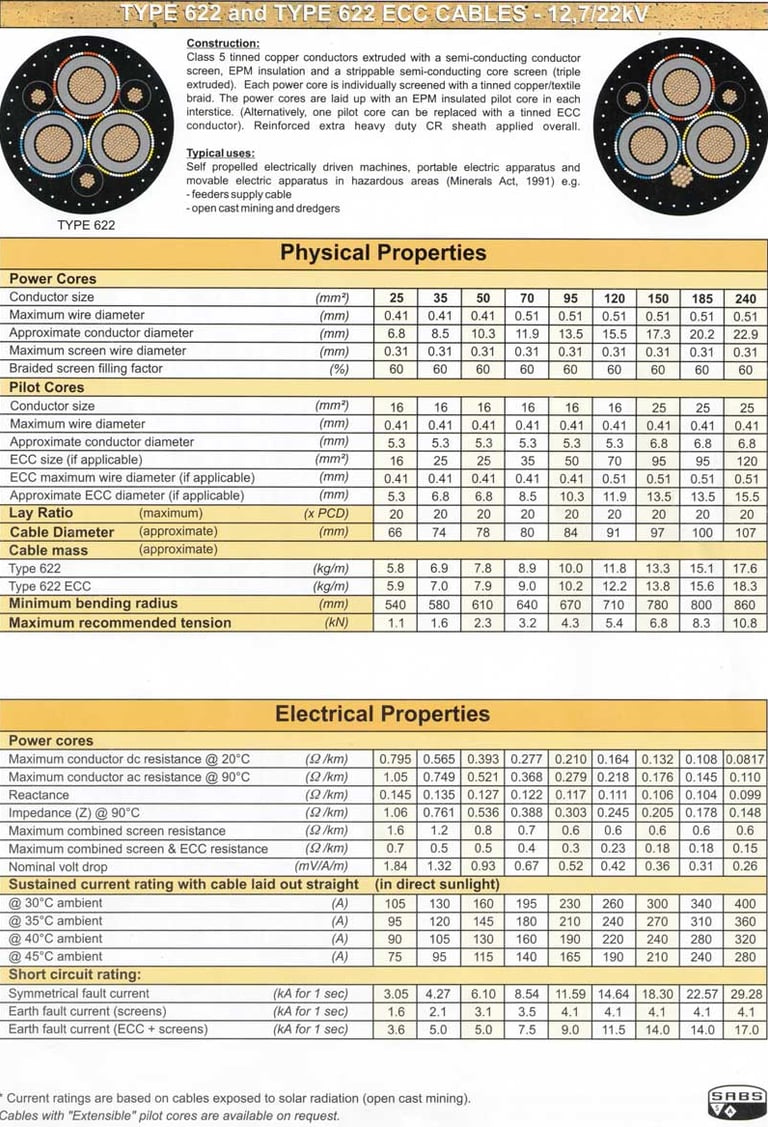

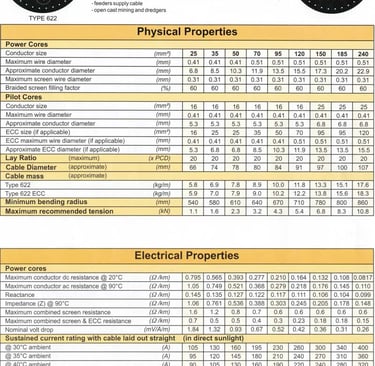

Type 622 cables are available in various configurations to meet different application requirements. The standard voltage rating of 12.7/22kV provides adequate power transmission capability for most mining applications whilst maintaining manageable system complexity.

The three-core configuration is the most common arrangement, providing the three phases required for industrial motor applications. These cables may be supplied with or without an additional earth conductor, depending on the specific earthing requirements of the application. The earth conductor, when provided, typically consists of tinned copper wire to prevent corrosion whilst maintaining excellent electrical conductivity.

Insulation thickness is carefully calculated to provide adequate electrical isolation whilst maintaining cable flexibility. The EPR insulation thickness varies with conductor size and voltage rating, ensuring optimal performance for each specific configuration. This careful balance between electrical performance and mechanical flexibility is crucial for mining applications where cables must perform electrically whilst withstanding significant mechanical stress.

Sheath colour coding follows industry standards to facilitate identification and maintenance. The CSP sheath is typically supplied in black for underground applications or orange for surface applications where high visibility is required. Custom colours may be available for specific applications where particular identification requirements exist.

Nominal cross-sectional areas range from smaller sizes suitable for control and monitoring applications to larger sizes capable of carrying the substantial currents required by heavy mining equipment. The selection of appropriate cross-sectional area depends on factors including load current, voltage drop requirements, and short-circuit current capabilities.

Type 622 ECC Cable

The Type 622 ECC variant incorporates all the features of the standard Type 622 cable whilst adding the critical earth continuity monitoring capability. The additional ECC component typically consists of a small conductor located at the cable centre, protected by its own insulation and integrated into the overall cable construction.

The ECC component enables real-time monitoring of earth continuity through specialised monitoring equipment. This monitoring can be integrated into mine control systems, providing continuous indication of earth integrity and automatic alarm generation if earth continuity is compromised.

Applications in monitored earthing systems represent the primary use case for Type 622 ECC cables. These systems are particularly valuable in applications where personnel safety depends on effective earthing, such as mobile equipment operating in areas where workers might be present. The continuous monitoring capability provides an additional safety layer beyond traditional earthing systems.

The use of ECC cables in environments where electrical fault detection is critical cannot be overstated. In mining operations, the ability to detect earth faults before they become dangerous is invaluable. The ECC system can provide early warning of cable damage, allowing for maintenance action before complete failure occurs.

Frequently Asked Questions (FAQs)

Q1: Can Type 622 ECC cables be used in wet environments?

Yes, Type 622 ECC cables are specifically designed for wet environments common in mining operations. The EPR insulation provides excellent water resistance, whilst the CSP sheath prevents water ingress into the cable structure. These cables can operate safely in environments with high humidity, occasional water immersion, and direct water contact. However, proper cable termination and jointing techniques must be employed to maintain water resistance at connection points.

Q2: What's the advantage of ECC over standard 622?

The primary advantage of ECC over standard Type 622 cables lies in enhanced safety through real-time earth continuity monitoring. The ECC component allows continuous monitoring of the earth connection integrity, providing immediate indication if the earthing system becomes compromised. This capability is particularly valuable in applications where personnel safety depends on effective earthing, as it provides early warning before complete earth failure occurs. The monitoring capability also enables proactive maintenance, as potential problems can be identified and addressed before they result in dangerous conditions or equipment failure.

Q3: Are these cables flame-retardant?

Yes, both Type 622 and Type 622 ECC cables are manufactured with flame-retardant materials that comply with the flame-resistance standards required by SANS 1520-1. The EPR insulation and CSP sheath materials are specifically formulated to resist ignition and to self-extinguish if exposed to flame sources. This characteristic is crucial in mining environments where fire risk is a constant concern due to the presence of electrical equipment, flammable materials, and potential ignition sources.

Q4: What's the lifespan of a Type 622 cable in a typical mine?

The lifespan of Type 622 cables in mining applications typically ranges between 5-10 years, depending on specific application conditions and maintenance practices. Factors affecting lifespan include the severity of mechanical stress, environmental conditions, frequency of movement (for mobile applications), and quality of installation and maintenance. Cables used in static installations with minimal mechanical stress may exceed 10 years of service life, whilst those subjected to frequent movement and harsh mechanical conditions may require replacement closer to the 5-year mark. Regular inspection and maintenance can significantly extend cable life by identifying and addressing potential problems before they result in failure.

Conclusion

Type 622 and Type 622 ECC cables represent essential components in South Africa's mining electrical infrastructure, providing the reliability, safety, and performance characteristics necessary for successful mining operations. Their specialised construction, incorporating Class 5 stranded copper conductors, EPR insulation, and CSP sheathing, addresses the unique challenges present in mining environments.

The importance of these cables extends beyond mere power transmission. They represent a critical safety system that protects both equipment and personnel in one of the world's most challenging industrial environments. The ECC variant, with its earth continuity monitoring capability, provides an additional layer of safety that is increasingly recognised as essential for modern mining operations.

For South African mining operations, the choice of proper cables is not simply a technical decision but a strategic one that affects operational reliability, safety performance, and long-term costs. Type 622 and Type 622 ECC cables, with their compliance to SANS 1520-1 and NRCS certification, provide the quality assurance and performance characteristics necessary for successful mining operations.

The investment in quality cables like Type 622 and Type 622 ECC represents a commitment to operational excellence and safety that ultimately benefits all stakeholders in the mining industry. As South Africa's mining industry continues to evolve and face new challenges, the role of reliable, high-quality electrical infrastructure becomes increasingly critical to maintaining the nation's position as a global mining leader.

Choosing certified cables that meet or exceed South African standards is not just about compliance – it's about ensuring that mining operations can continue safely and efficiently, protecting both the substantial investments in mining equipment and the invaluable lives of the personnel who operate it. In this context, Type 622 and Type 622 ECC cables are not merely electrical components but essential elements of a comprehensive approach to mining safety and operational excellence.
