What Causes Signal Interference in Mining Cables and How Can It Be Prevented?

Introduction: The Growing Dependence on Cable Communication in Mining

In the high-risk environment of South African mining—whether deep-level gold mines in Gauteng or sprawling open-pit platinum operations in Limpopo—cables are more than just conductors of electricity. They're the nervous system of automated operations, hauling systems, ventilation controls, real-time monitoring devices, and communication networks. However, one invisible enemy often gets overlooked: signal interference in mining cables.

When electrical signals are distorted, delayed, or entirely lost due to interference, the consequences can be costly and dangerous. From false sensor readings to unresponsive automation systems, signal issues in harsh mining environments directly threaten safety, productivity, and compliance with national standards like SANS 1520-1 and NRCS regulations.

So, what causes this interference, and more importantly—how can mining operators in South Africa prevent it?

Causes of Signal Interference in Mining Cable Systems

Signal interference in mining environments stems from a mix of electrical, physical, and environmental factors. Here are the most critical causes in South Africa’s underground and open-cast mines:

a) Electromagnetic Interference (EMI)

Mining sites are filled with high-power equipment: motors, variable frequency drives (VFDs), transformers, and large-scale generators. These emit strong electromagnetic fields that can induce unwanted currents or voltages in adjacent communication cables, particularly those used for:

• SCADA systems

• Mine-wide communication networks (VoIP, radios, etc.)

• Real-time monitoring of equipment and ventilation

Unshielded or poorly shielded cables, especially in old mining infrastructure, are highly vulnerable to EMI.

b) Radio Frequency Interference (RFI)

RFI is especially prevalent in modern mining setups using wireless systems, including underground Wi-Fi, RFID-based personnel tracking, and remote monitoring systems. Cables laid too close to transmitting devices can pick up unwanted radio signals, leading to data corruption or signal loss.

c) Ground Loops and Improper Earthing

South African mines, many of which are retrofitted with newer technologies, often suffer from mixed grounding systems. A ground loop occurs when two points in a cable system have different ground potentials. This can introduce noise into low-voltage signal lines, especially in sensor cables and instrumentation circuits.

d) Physical Damage and Water Ingress

Signal cable sheaths are susceptible to mechanical damage due to rock falls, cable dragging, or vibration. Once the sheath is compromised, moisture ingress (especially in deep mines like Driefontein or South Deep) introduces capacitance changes and corrosion at connectors, drastically increasing the risk of intermittent signal failures.

e) Proximity to High Voltage Power Cables

Running low-voltage or data cables alongside MV and HV mining power cables—such as SANS Type 63 or 611-ECC—without proper separation or shielding creates conditions for crosstalk, especially during load switching or surges.

Impact of Signal Interference on South African Mining Operations

Signal interference isn't just a nuisance—it’s a real hazard with far-reaching consequences:

a) Compromised Safety Systems

If sensor data is misinterpreted due to interference—say, a methane detector in a platinum mine misreading gas levels—it could lead to explosion risks or unnecessary evacuations. Automated refuge chamber alerts and ventilation controls also rely on clean signals.

b) Operational Downtime

Unreliable communication between control centres and machines often triggers emergency shutdowns. For example, if a reeling cable controlling a conveyor's torque output gets interference-induced faults, the result is stalled ore transport—delaying tons of material.

c) Reduced Equipment Lifespan

Repeated misfiring or improper start/stop commands due to signal noise may cause mechanical and electrical stress on motors, pumps, or drilling equipment, resulting in premature failures.

d) Data Inaccuracies and Compliance Issues

Mines operating under Occupational Health and Safety Act (OHSA) and Mineral and Petroleum Resources Development Act (MPRDA) must provide accurate logs of environmental and equipment data. Interference leading to corrupted logs can cause regulatory non-compliance and license scrutiny.

Case Study: Signal Interference in a South African Gold Mine

In early 2024, a deep-level gold mine located in the Carletonville region (West Wits Line) experienced intermittent failures in its underground communication system. The failures began after the commissioning of a new VFD-controlled pumping station, which ran parallel to a 500m-long fibre-optic control cable inside a steel conduit.

Observed Issues:

• Delayed SCADA updates from pumps

• False alarms triggering evacuation drills

• Network reboot cycles every 4 hours

Investigation Findings:

• EMI leakage from the VFDs was coupling into the communication cable due to inadequate separation and lack of shielding.

• The fibre-optic cable had splices with improperly grounded shields.

• The mine’s old metallic cable trays created a large inductive loop around the cable run.

Resulting Actions:

• Re-routed fibre cable using non-metallic conduit and added optical isolators.

• Introduced surge protection devices (SPDs) on all PLC input/output points.

• Performed full re-earthing following SANS 10142-1 guidelines.

Post-correction, SCADA communication restored to over 99.8% reliability, reducing both false alarms and costly downtime.

Solutions and Preventive Measures for South African Mines

Preventing signal interference in mining cables requires a holistic approach, addressing design, installation, and maintenance. Here's what works in South Africa:

a) Use of Properly Shielded Cables

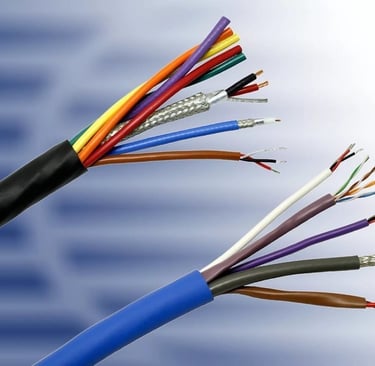

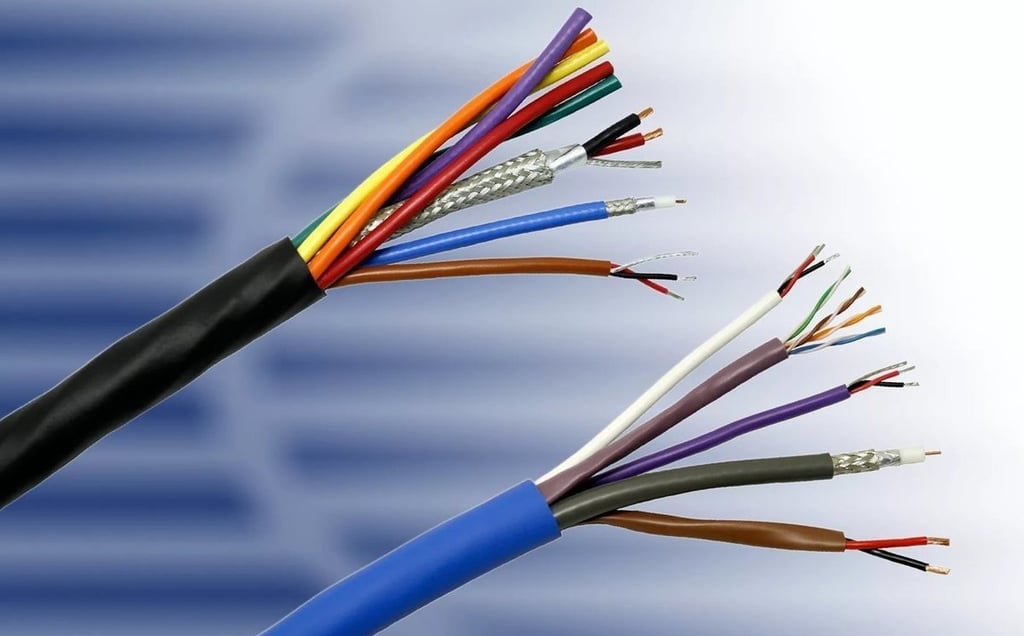

Cables designed for EMI-prone environments—such as SANS-compliant screened instrumentation cables—should be used near high-power equipment. Shielding types include:

• Foil and braid (for maximum coverage)

• Drain wires for proper earthing

• Twisted pair construction to reduce differential noise

b) Dedicated Routing and Segregation

Always separate power cables from communication cables. The general rule is a minimum 300mm distance, but in high-interference areas, separate cable trays or even separate tunnels should be used.

c) Opt for Fibre Optics in High EMI Zones

Fibre-optic cables are immune to EMI/RFI and ideal for backbone connections in deep and open-cast mines. Use ruggedized mining-grade fibre cables for reliability in harsh conditions.

d) Proper Earthing and Grounding

Follow SANS 10142-1 Part 2 for industrial environments. Avoid ground loops by using:

• Single-point grounding for control systems

• Shielded cable bonding only at one end

• Periodic earth potential checks

e) Surge and Transient Voltage Protection

Install surge protection devices (SPDs) and line filters at control panels, especially in areas prone to lightning or equipment switching transients.

f) Regular Cable Health Checks

Implement predictive maintenance programs using:

• TDR (Time Domain Reflectometry) to detect faults

• Thermal imaging for hotspots

• Continuity and insulation resistance testing

g) Training and Audits

Many issues arise from installation errors. Regular training for cable installers, plus third-party audits, reduce risks significantly.

Frequently Asked Questions (FAQ)

Q1: Can standard PVC sheathed cables be used for data transmission in mines?
A: Not recommended. PVC lacks proper shielding and degrades under mine heat and humidity. Use LSZH or thermoplastic elastomer with shielding for data.

Q2: How do I know if my mine’s interference is EMI or RFI?
A: EMI typically comes from electrical equipment; RFI stems from wireless signals. A spectrum analyser can help diagnose the source.

Q3: Is fibre optic overkill for underground mines?
A: No. It’s cost-effective in the long term due to immunity from interference and reduced maintenance.

Q4: What regulations in South Africa cover mining cable installation?
A: Key standards include SANS 1520-1, SANS 10142-1, and NRCS requirements for hazardous environments.

Q5: Can old mines retrofit without rewiring everything?
A: Yes. With isolators, shield upgrades, and re-routing, older infrastructure can be made compliant.

Conclusion: Safeguarding Signal Integrity Is Non-Negotiable

In the high-stakes, regulation-driven world of South African mining, signal interference is more than just technical noise—it's a silent saboteur. Whether it's disrupting automated haulage in a Rustenburg platinum mine or jeopardising safety monitoring in Barberton's gold tunnels, signal integrity is mission-critical.

By understanding the root causes—from EMI to poor grounding—and applying tailored solutions like proper shielding, separation, fibre optics, and maintenance, mining operators can safeguard their operations, protect their personnel, and remain compliant with South African standards.

In an age of smart mining and digital transformation, keeping signals clean isn't just good engineering—it's a competitive advantage.
