What Makes H07RN-F Rubber Cable the Ideal Industrial Cable for Heavy-Duty Applications?

What Is H07RN-F Rubber Cable and Why Is It Used in Industry?

In industrial and commercial settings, the reliability of electrical cabling is paramount. One cable that has earned a reputation for durability and versatility is the H07RN-F rubber cable. Known for its flexibility, mechanical resilience, and suitability in harsh environments, it is widely used across industries from manufacturing plants to mining operations.

Overview of H07RN-F

H07RN-F is a flexible, rubber-sheathed cable designed to handle medium mechanical stress. Its construction allows for excellent bending capabilities, making it ideal for mobile machinery, tools, and equipment that require regular movement. Rated for 450/750V, it is suitable for a broad range of power and control applications.

Key Industrial Uses

H07RN-F cables are extensively used for:

• Power and control supply in factories and workshops: Their flexibility simplifies connection to machinery, conveyors, and processing equipment.

• Electrical tools and mobile equipment: From hand tools to mobile cranes, H07RN-F ensures consistent power delivery under continuous motion.

• Wet, oily, or damp environments: Thanks to its superior sheath and insulation, it withstands exposure to water, oils, and industrial chemicals.

• Explosion-hazard areas: Certain formulations meet strict compliance standards for hazardous environments, providing safety in volatile locations.

Suitable Environments

The versatility of H07RN-F extends to multiple environmental conditions:

• Indoor and outdoor usage: Resistant to UV, rain, and temperature fluctuations.

• Oily or chemically active areas: Outer sheaths protect the internal conductors from chemical degradation.

• Wet and damp conditions: IPX8-rated for permanent submersion up to 10 bar, verified by TÜV testing.

Certification & Standards

Quality assurance is critical for industrial cables, and H07RN-F meets multiple international and regional standards:

• EN 50525-2-21: Defines flexible cables for industrial use.

• IPX8 submersion tested: Ensures long-term performance underwater.

• TÜV and Üntel Kablo certified: Confirms suitability for industrial and mining applications, including permanently submerged installations.

How Does H07RN-F Differ from Other Industrial Rubber Cables?

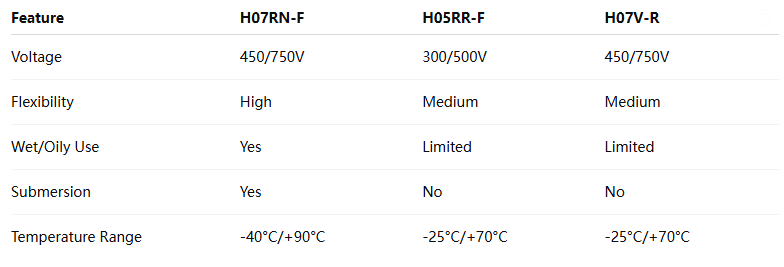

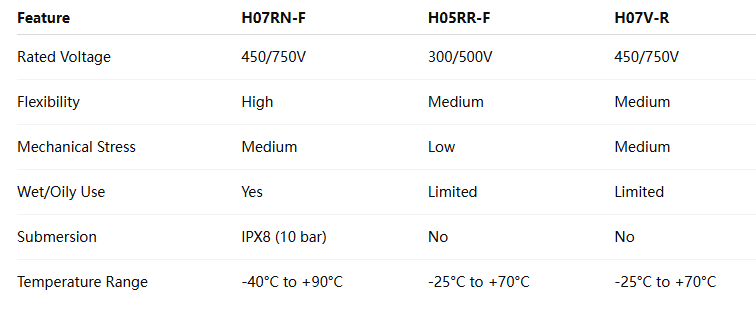

H07RN-F stands out due to its combination of flexibility, voltage rating, and environmental resistance. Here’s a direct comparison with commonly used alternatives:

Key takeaway: H07RN-F is the go-to solution when mobility, harsh environments, and reliability converge. It is engineered for high-stress industrial conditions, outperforming lower-rated alternatives in both mechanical and environmental resilience.

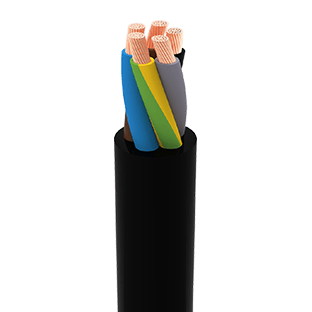

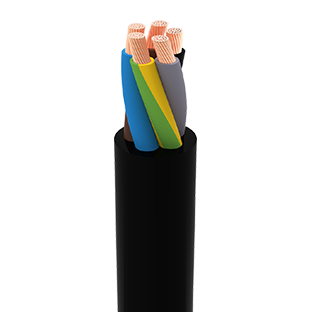

What Is the Structure and Material Composition of H07RN-F Cable?

The performance of H07RN-F stems from meticulous design, with every layer engineered for specific durability and electrical properties.

Conductor Specifications

• Material: Electrolytic annealed, class 5 stranded copper wires, providing both excellent conductivity and flexibility.

• Optional Tinning: For environments with high moisture or corrosive exposure, tinned copper is available, enhancing corrosion resistance and lifespan.

• Stranding: Multi-stranded cores allow repeated bending without fatigue, essential for mobile equipment applications.

Insulation and Sheath Design

H07RN-F cables feature multiple layers that combine insulation, mechanical protection, and chemical resistance:

1. Insulation:

   Made from EI4 cross-linked elastomeric compounds or EPR (Ethylene Propylene Rubber), compliant with EN 50363-1.

   Provides excellent flexibility even at sub-zero temperatures.

2. Inner Sheath:

   EM2 or EM3 cross-linked elastomeric compounds per EN 50363-2-1.

   If outer sheath thickness exceeds 2.4 mm, inner sheath ensures mechanical stability and stress distribution.

3. Outer Sheath:

   EM2 type, EN 50363-2-1 compliant.

   Standard color: black, with custom colors available for identification purposes.

Advantages of These Materials

• Flexibility in low temperatures: Maintains pliability down to -40°C, ideal for cold-climate applications like South African mines in winter.

• Chemical and oil resistance: Outer sheath shields against industrial oils, chemicals, and fuels.

• Mechanical resilience: Withstands moderate mechanical stresses, abrasion, and repeated flexing in mobile applications.

• UV resistance: Safe for outdoor use, preventing degradation from sun exposure.

What Are the Technical Specifications and Electrical Parameters of H07RN-F?

Voltage Ratings and Test Parameters

• Rated Voltage (U0/U): 450/750V

• AC Test Voltage: 2.5 kV

• Short-circuit Conductor Temperature: 200°C (max 5 seconds)

These specifications ensure the cable can safely operate under industrial load conditions and transient voltage spikes.

Temperature and Bending Capability

• Flexing Use: -25°C to +60°C

• Fixed Use: -40°C to +90°C

• Minimum Bending Radius: Per EN 50565-1, critical for installation in confined or moving setups.

Current Carrying Capacity

H07RN-F cables’ current capacity is calculated according to:

• VDE 0298-4

• IEC 60364-5-52

These standards ensure safe and efficient load distribution for both mobile and fixed installations.

Cable Sizes and Electrical Resistance

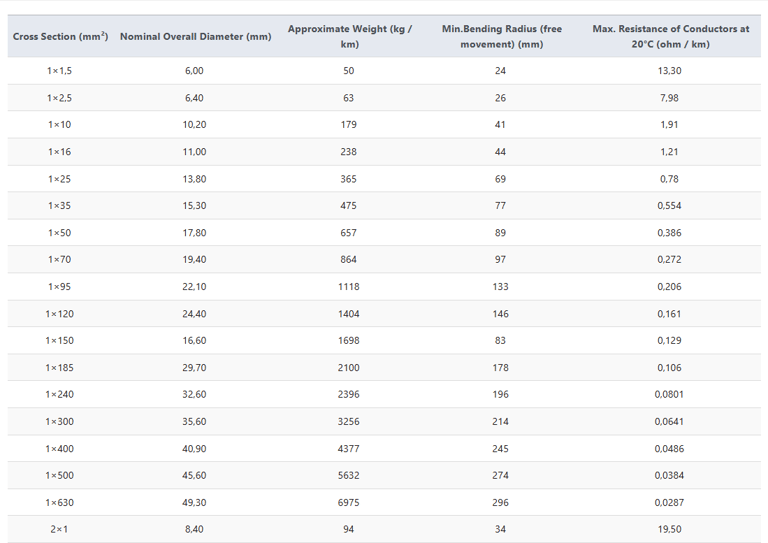

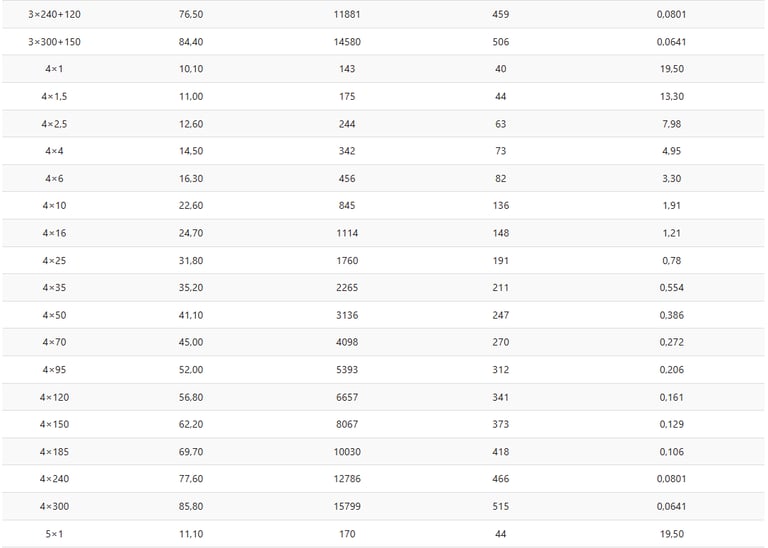

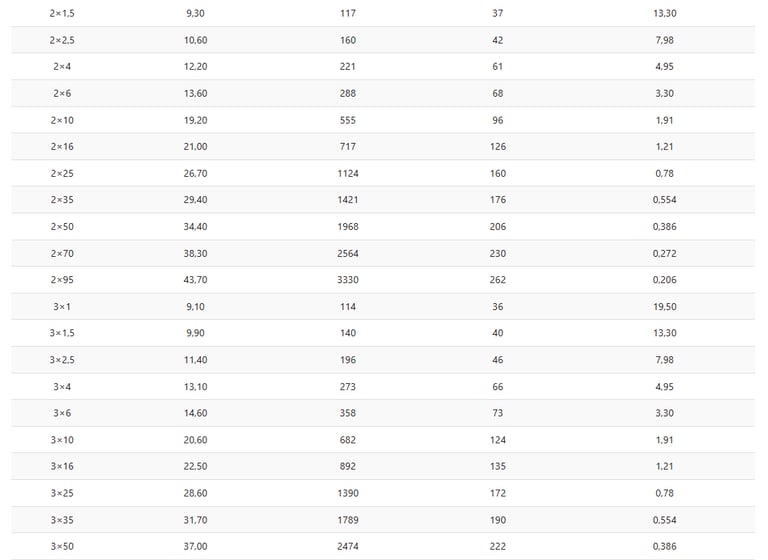

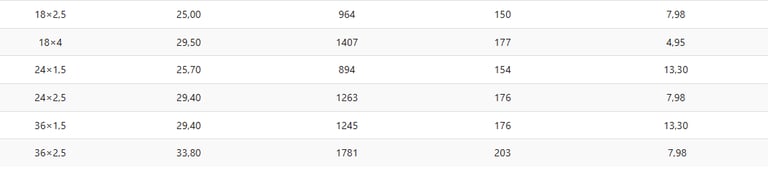

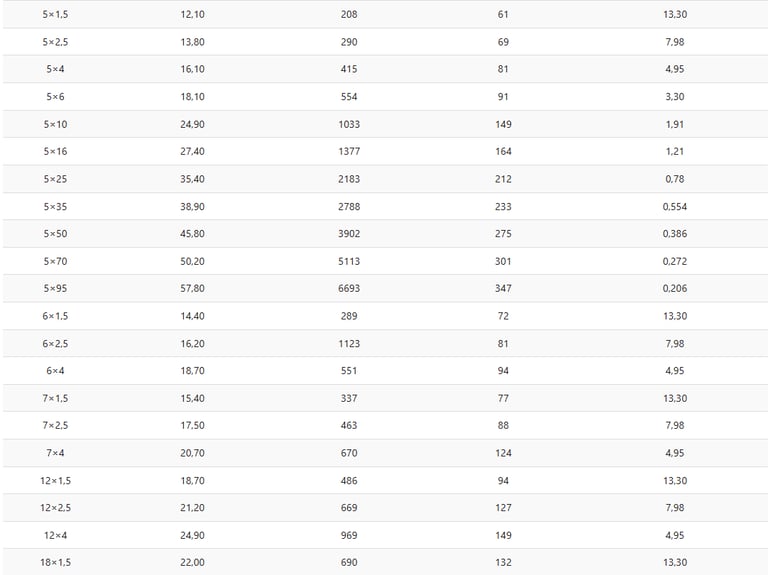

A summary of top H07RN-F cross sections:

This table helps engineers select the correct cable for specific load and installation requirements.

Where and How Can H07RN-F Cable Be Applied?

Industrial Scenarios Ideal for H07RN-F

H07RN-F cables excel in conditions where flexibility, mechanical stress, and environmental exposure coincide:

• Open-built plants: Flexible routing across machinery and production lines.

• Workshops & factories: Mobile tools, machine-to-machine connections, and temporary setups.

• Mobile machines & equipment: Cranes, conveyors, forklifts, and other movable devices.

• Wet, oily, damp, or explosive areas: Chemical plants, food processing, and petroleum facilities.

Submersible Applications

H07RN-F is permanently submersible up to 10 bar (100 meters), verified under IPX8 standards. It is therefore suitable for:

• Submersible pumps in water treatment plants or mines.

• Wet tunnels or underground facilities where temporary flooding is possible.

• Offshore and marine operations.

Proper Installation Guidelines

Correct installation ensures longevity and safety:

• Fixed vs flexible installation: Observe minimum bending radius; over-bending compromises insulation.

• Pulling guidelines: Avoid excessive tensile stress during installation.

• Temperature considerations: Install within the specified temperature range to prevent sheath damage.

• Outdoor exposure: UV-resistant sheath ensures durability; avoid prolonged chemical immersion beyond specifications.

Tip: Consult technical experts to optimize H07RN-F installation for specific site conditions and regulatory compliance.

Common Issues and Troubleshooting H07RN-F (FAQ)

Can H07RN-F Cable Be Used in Extreme Cold or Heat?

Yes. H07RN-F remains flexible down to -40°C (fixed use) and operates safely up to +90°C, covering most South African climates and industrial heat exposure.

How Long Does H07RN-F Last in Outdoor or Wet Conditions?

With proper installation and routine inspection, H07RN-F can last 10–20 years, even under submersion or oily/wet environments.

Can H07RN-F Handle Heavy Mechanical Stress or Frequent Flexing?

Yes, designed for medium mechanical stress and repeated flexing. Frequent extreme bending should follow EN 50565-1 radius recommendations.

How to Choose the Right Cross Section?

Select based on load current, distance, and allowable voltage drop, referencing the provided technical tables.

What Maintenance Is Needed?

• Visual inspection for cracks or abrasion.

• Ensure connectors and glands are tight and corrosion-free.

• Replace cables showing degradation in sheath or insulation.

Is H07RN-F Suitable for Explosive Hazard Areas?

Certain certifications allow use in explosion-hazard areas, but always verify against local standards such as South Africa’s SANS requirements.

How Does H07RN-F Compare to Alternatives in Cost and Performance?

H07RN-F may be slightly higher in upfront cost than H05RR-F but provides superior flexibility, durability, and submersion capability, resulting in long-term value and lower replacement frequency.

Case Studies Demonstrating H07RN-F Performance

Industrial Factory, Johannesburg

A Johannesburg-based automotive plant deployed H07RN-F to power mobile assembly robots. The flexibility allowed efficient movement across assembly lines, while chemical-resistant sheaths protected against oil spills. Result: Reduced downtime, minimal cable replacement, and improved worker safety.

Submersible Pumping in Durban

A municipal water utility in Durban used H07RN-F for submersible pumps in wastewater treatment. The IPX8 rating ensured operation at 50 meters underwater without sheath damage. Result: Reliable performance for over five years, exceeding alternative cable lifespans.

South African Mining Equipment

In a platinum mine near Rustenburg, H07RN-F supplied power to mobile drilling rigs in wet underground tunnels. High mechanical stress, oil exposure, and temperature variations were handled with minimal degradation. Result: Compliance with SANS standards, improved safety, and cost-effective maintenance.

Lessons Learned: H07RN-F demonstrates versatility across harsh industrial, wet, and submersible environments, proving its value in South Africa’s diverse industrial sectors.

How to Choose Between H07RN-F and Other Rubber Cables

Decision Criteria:

• Voltage requirements

• Mechanical stress level

• Environmental exposure (oil, water, chemicals)

• Flexing or fixed use

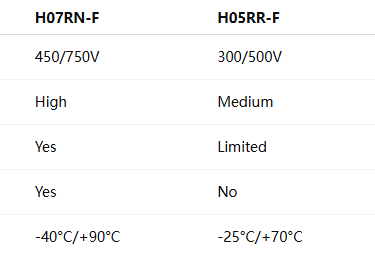

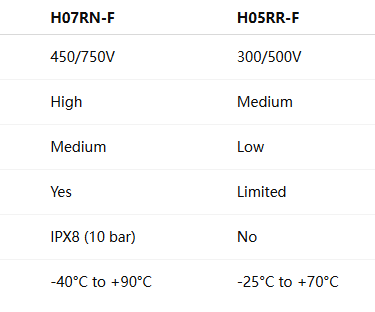

Quick Comparison Table:

Recommendation: H07RN-F is optimal when flexibility, environmental resilience, and safety compliance are critical.

Conclusion and Expert Recommendations

The H07RN-F rubber cable is a professional-grade solution for industrial and heavy-duty applications. Its advantages include:

• Durability: Withstands medium mechanical stress and harsh environments.

• Flexibility: Suitable for mobile equipment and tight installations.

• Environmental resilience: Resistant to oil, water, UV, chemicals, and even submersion.

• Compliance: Meets international and South African standards, ensuring safety in industrial and mining contexts.

For long-term performance and regulatory compliance, always consult cable specialists to choose the correct cross-section, install properly, and maintain routinely.

CTA: Contact our industrial cable experts for tailored advice, quotations, and H07RN-F installation support.
