What Makes SANS 1520 and SANS 1507 Cables Essential for Mining and Power Distribution in South Africa?

Like the sturdy roots of a baobab tree anchoring the landscape, reliable electrical cables form the foundation that keeps South Africa's power flowing strong. In a country where mining drives the economy and load-shedding tests our electrical infrastructure daily, understanding the difference between SANS 1520 and SANS 1507 cables isn't just technical knowledge – it's essential for keeping the lights on and the mines running.

These South African National Standards, issued by the South African Bureau of Standards (SABS), represent world-class engineering designed to handle our unique challenges. Whether you're dealing with the bone-jarring conditions of a Witwatersrand gold mine or the steady power demands of a Johannesburg suburb, choosing the right cable standard can make the difference between smooth operations and costly downtime.

SANS 1520: Flexible Trailing Cables Built Tough as Biltong

When it comes to flexible electrical trailing cables that can handle South Africa's most demanding environments, SANS 1520 stands out like a champion Springbok dodging tackles on the rugby field. This standard covers cables designed primarily for mining operations, where flexibility isn't just preferred – it's absolutely critical for survival.

The Three-Part Foundation of SANS 1520

Part 1: Low-Voltage Powerhouse (640V/1.1kV and 1.9/3.3kV)

Part 1 of SANS 1520 covers the workhorses of mining operations – low-voltage flexible cables that need to bend, twist, and flex without breaking a sweat. These cables come in three main configurations:

• Three-core cables: Two power cores plus one pilot core for control functions

• Four-core cables: Three power cores with one pilot core for three-phase systems

• Six-core cables: Three power cores and three pilot cores for complex control applications

The standard includes Type 41 and Type 61 cables, each engineered with elastomer insulation that meets SANS 1411-3 specifications. This insulation is tougher than a honey badger, designed to withstand the constant movement and harsh conditions that would destroy ordinary cables faster than you can say "eish."

Part 2: High-Voltage Heavy Hitters (3.8/6.6kV to 19/33kV)

For operations that need serious power – the kind that drives massive mining equipment or industrial installations – Part 2 of SANS 1520 delivers cables rated from 3.8/6.6kV all the way up to 19/33kV. This section covers specialized cable types including:

• Type 63 and Type 66: Standard high-voltage trailing cables

• Type 611, 622, and 633: Advanced configurations for specific applications

These cables aren't just for mines anymore. They're increasingly used in renewable energy projects, industrial plants, and anywhere high-voltage flexibility is required. With South Africa's push toward green energy and industrial diversification, these cables are proving as versatile as a bakkie on both tar and gravel roads.

Part 3: DC Power Solutions (up to 1.5kV d.c.)

Part 3 addresses the growing need for DC power solutions, covering cables rated up to 1,500V DC. These are particularly crucial for:

• Battery-operated equipment in hazardous mining locations

• Electric vehicle charging infrastructure

• Solar power installations and battery storage systems

As South Africa embraces renewable energy and electric mining equipment, these DC-rated cables are becoming as essential as a good braai on Heritage Day.

Key Features That Make SANS 1520 Special

The secret sauce of SANS 1520 cables lies in their construction and testing regimen. These cables undergo rigorous dielectric resistance testing per SANS 5526 and comprehensive finished cable testing according to SANS 6281-3. The elastomer insulation provides exceptional flexibility while maintaining electrical integrity under stress.

Think of these cables as the electrical equivalent of a seasoned taxi driver navigating Johannesburg traffic – they've seen it all and keep moving regardless of conditions.

SANS 1507: The Reliable Foundation for Fixed Power Distribution

While SANS 1520 cables are the flexible athletes of the electrical world, SANS 1507 cables are the solid foundation – like a well-built stoep that supports the house through every season. These cables with extruded solid dielectric insulation are designed for fixed installations where reliability trumps flexibility.

The Six-Part Architecture of SANS 1507

Part 1: General Guidance and Quality Control

Part 1 serves as the roadmap for purchasers and installers, providing guidance on quality verification and proper installation of extruded dielectric cables. It's like having a knowledgeable ou toppie showing you the ropes – invaluable for ensuring installations meet professional standards.

Part 2: Internal Wiring Solutions

Part 2 covers wiring cables for internal use, the kind that snakes through building walls and industrial installations, providing power where it's needed most.

Part 3: PVC Distribution Cables

These are the bread-and-butter cables of South African electrical distribution. PVC-insulated cables under Part 3 offer cost-effective solutions for standard power distribution applications. They're as reliable as a Toyota Hilux – they might not be fancy, but they get the job done day after day.

Part 4: XLPE Distribution Excellence (300/500V to 1.9/3.3kV)

Part 4 covers cross-linked polyethylene (XLPE) insulated cables, the premium option for distribution applications. XLPE cables, manufactured according to SANS 1339 standards, offer superior thermal and electrical performance compared to PVC alternatives. They handle higher temperatures and provide better long-term reliability – perfect for South Africa's challenging climate conditions.

This section also addresses fire-retardant requirements and compound compatibility, ensuring cables meet stringent safety standards for various installation environments.

Part 5: Halogen-Free Solutions for Safety

Part 5 focuses on low-smoke, zero-halogen cables that emit minimal smoke and no toxic halogen gases during fires. These cables are becoming increasingly important in:

• Underground installations

• Public buildings

• Hospitals and schools

• Any enclosed space where fire safety is paramount

In a country where building safety has gained increased attention, these cables provide peace of mind worth their weight in gold.

Part 6: Service Cable Applications

Part 6 rounds out the standard with service cables for specific distribution needs, covering the specialized applications that don't fit neatly into other categories.

SANS 1507 Applications and Benefits

SANS 1507 cables excel in direct burial applications, particularly in South Africa's free-draining soil conditions. They're designed for:

• Underground power distribution

• Building internal wiring

• Industrial plant installations

• Municipal electrical infrastructure

The solid dielectric construction makes these cables as dependable as a good boerewors recipe – once properly installed, they provide years of trouble-free service.

Head-to-Head: SANS 1520 vs SANS 1507 Comparison

Understanding the differences between these standards is like knowing when to use a bakkie versus a sedan – both have their place, but choosing wrong can leave you stuck.

Purpose and Application Philosophy

SANS 1520 cables are the dynamic performers, designed for environments where movement is constant and conditions are harsh. They're the electrical equivalent of a rugby player – built to take hits and keep moving.

SANS 1507 cables are the steady performers, engineered for fixed installations where reliability over decades matters more than flexibility. They're like a solid foundation – you don't see them, but everything depends on their strength.

Voltage Range Capabilities

SANS 1520 covers an impressive voltage range:

• Low voltage: 640V/1.1kV and 1.9/3.3kV

• High voltage: 3.8/6.6kV to 19/33kV

• DC applications: up to 1.5kV DC

SANS 1507 focuses on distribution voltages:

• Primary range: 300/500V to 1.9/3.3kV

• Optimized for standard power distribution needs

Construction Philosophy

SANS 1520 construction emphasizes flexibility and durability:

• Multi-core designs with pilot cores for control

• Elastomer insulation for maximum flexibility

• Reinforced construction for harsh environments

SANS 1507 construction prioritizes long-term stability:

• Extruded solid dielectric insulation

• Options for PVC, XLPE, or halogen-free materials

• Optimized for underground and fixed installations

Environmental Considerations

SANS 1520 cables handle extreme conditions like a Land Rover tackles the Kalahari – built for punishment and designed to keep going when others fail.

SANS 1507 cables provide steady performance in controlled environments, like a reliable sedan on the N1 – smooth, efficient, and built for the long haul.

Applications: South African Case Studies

Kusile Power Station Integration

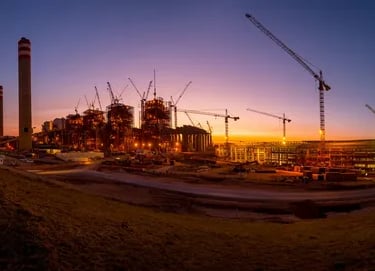

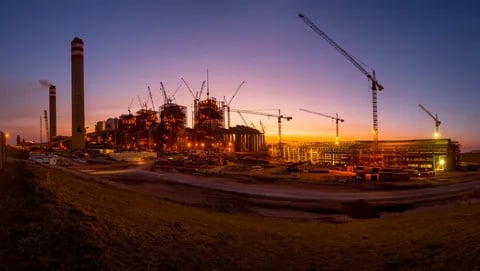

During the construction and commissioning of Kusile Power Station, South Africa's newest coal-fired power plant, both cable standards played crucial roles. SANS 1507-4 XLPE cables formed the backbone of the fixed distribution system, while SANS 1520 cables provided flexible connections for construction equipment and temporary power systems.

The choice of XLPE insulation proved crucial in handling the high ambient temperatures common in Mpumalanga, while the fire-retardant properties addressed safety concerns in this massive installation.

Platinum Belt Mining Operations

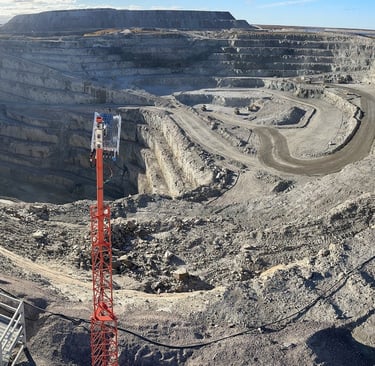

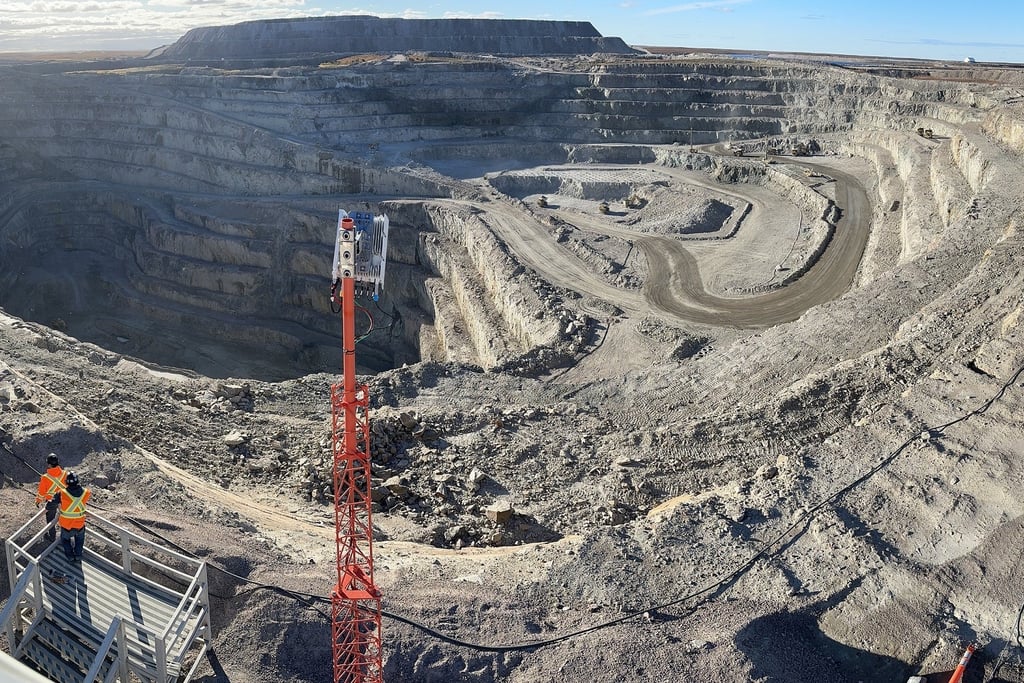

In the platinum mining operations around Rustenburg, SANS 1520 cables have proven their worth in some of the world's most challenging mining conditions. Recent installations of Type 63 high-voltage trailing cables have enabled deeper mining operations while maintaining safety standards.

The flexible construction allows these cables to follow mining equipment through tight spaces and around obstacles, while the robust insulation withstands the constant vibration and movement inherent in mining operations.

Solar Farm Development

As South Africa rapidly expands its renewable energy capacity, SANS 1507-5 halogen-free cables have become increasingly important in solar farm installations. A recent 100MW solar project in the Northern Cape chose these cables for their environmental benefits and superior performance in the region's extreme temperature variations.

The low-smoke, zero-halogen properties provide enhanced safety in unmanned installations, while the XLPE insulation handles the thermal cycling common in solar applications.

Technical Specifications and Testing Standards

Both cable standards undergo rigorous testing to ensure performance and safety:

SANS 1520 Testing Protocols

• Dielectric resistance testing per SANS 5526

• Finished cable testing according to SANS 6281-3

• Flexibility and bend testing for dynamic applications

• Environmental stress testing for mining conditions

SANS 1507 Testing Requirements

• Insulation resistance and dielectric strength testing

• Fire performance testing for safety applications

• Thermal cycling tests for long-term reliability

• Chemical resistance testing for buried applications

Frequently Asked Questions

What are SANS 1520 cables primarily used for?

A: SANS 1520 cables are flexible trailing cables designed specifically for mining equipment and other applications requiring constant movement and flexibility. They handle everything from underground mining machinery to mobile industrial equipment, built tough enough to withstand the harsh conditions that would destroy ordinary cables.

Can I use SANS 1507 cables in mining applications?

While SANS 1507 cables are excellent for fixed installations, they're not suitable for the dynamic conditions found in mining operations. These cables are designed for stationary applications like power distribution networks, building wiring, and underground installations where the cables remain in fixed positions.

What's the real difference between PVC and XLPE insulation in SANS 1507 cables?

PVC insulation is cost-effective and suitable for standard applications, but XLPE (cross-linked polyethylene) offers superior performance. XLPE handles higher temperatures, provides better electrical properties, and offers improved long-term reliability. In South Africa's challenging climate, XLPE often proves worth the extra investment for critical applications.

Are SANS 1520 cables safe for high-voltage mining applications?

Absolutely. SANS 1520 Part 2 covers high-voltage applications up to 19/33kV with comprehensive safety testing and certification. These cables undergo rigorous testing including dielectric resistance tests and environmental stress testing to ensure they meet the demanding safety requirements of high-voltage mining operations.

What are the benefits of low-smoke, zero-halogen cables in SANS 1507-5?

These specialized cables emit minimal smoke and no toxic halogen gases during fires, making them ideal for enclosed spaces like underground installations, public buildings, and industrial facilities. In emergency situations, they provide crucial additional escape time and reduce toxic gas exposure – potentially life-saving benefits worth considering for any enclosed installation.

How do I choose between SANS 1520 and SANS 1507 for my project?

The choice comes down to application requirements. Choose SANS 1520 for any application involving movement, flexibility, or mining conditions. Choose SANS 1507 for fixed installations like building wiring, underground distribution, or permanent industrial installations. When in doubt, consult with technical experts who can assess your specific requirements.

What voltage ratings are available for each standard?

SANS 1520 offers the widest voltage range, from 640V/1.1kV up to 19/33kV for AC applications, plus DC options up to 1.5kV. SANS 1507 focuses on distribution voltages from 300/500V to 1.9/3.3kV, optimized for standard power distribution applications.

Do these cables meet international safety standards?

Both SANS 1520 and SANS 1507 are developed by SABS to meet or exceed international safety and performance standards while addressing South Africa's specific environmental and application requirements. They're recognized internationally and often specified for projects outside South Africa due to their rigorous testing and proven performance.

Conclusion: Choosing Excellence in Cable Standards

Understanding SANS 1520 and SANS 1507 cables is about more than technical specifications – it's about choosing the right foundation for South Africa's electrical future. Like the backbone of a Springbok, these cables provide the strength and reliability that keep our power systems running, our mines productive, and our communities connected.

SANS 1520 cables serve as the flexible warriors, handling the tough conditions of mining and mobile applications with the resilience of a honey badger. SANS 1507 cables provide the steady foundation, like the roots of a baobab tree, supporting our electrical infrastructure with unwavering reliability.

Whether you're planning a mining operation in the depths of the Witwatersrand or designing a power distribution network for a growing township, choosing the right cable standard is crucial. The investment in proper SANS-compliant cables pays dividends in reliability, safety, and long-term performance.

For project-specific guidance on selecting between SANS 1520 and SANS 1507 cables, consulting with experienced technical teams ensures your installation meets both current needs and future requirements. In a country where keeping the lights on is both a technical challenge and a national priority, choosing the right cables isn't just good engineering – it's essential for progress.

Remember, in electrical infrastructure as in rugby, having the right equipment and following proven standards makes the difference between victory and defeat. Choose wisely, install properly, and keep South Africa powered up for the challenges ahead.
