What Makes Type G-GC 2kV Three-Conductor Round Portable Power Cable Ideal for South African Mining and Industrial Applications?

In South Africa, where mining is the backbone of the economy, reliable power distribution is critical for operational efficiency and safety. Among the wide range of portable power cables, Type G-GC 2kV Three-Conductor Round Portable Power Cable stands out as a robust, versatile, and highly reliable solution for demanding mining and industrial environments. From powering continuous miners in the gold fields of Gauteng to operating shuttle cars in platinum mines of Rustenburg, Type G-GC cables have become a trusted choice for engineers and procurement specialists seeking durability, safety, and compliance with international standards.

In this article, we will provide an in-depth exploration of Type G-GC cables, comparing them with other portable power cables, detailing their construction, mechanical and thermal properties, installation practices, and real-world applications in South Africa. By the end, readers will have a clear understanding of why these cables are essential for mining and industrial operations and how to select the right configuration for their projects.

What Is Type G-GC 2kV Portable Power Cable and How Does It Differ from Other Mining Cables?

Type G-GC is classified as a three-conductor round portable power cable designed for mobile equipment in underground and surface mining as well as heavy industrial operations. Unlike standard portable cables, it features a grounding conductor and a ground check conductor, making it particularly suited to environments where safety and reliability are non-negotiable.

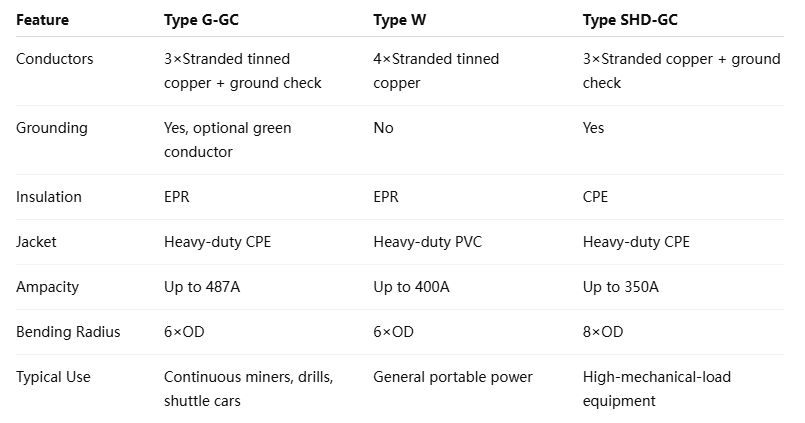

Comparison with Other Cables:

Key Design Features:

• Three Conductors: Allows efficient power delivery for three-phase equipment.

• Ground Check Conductor: Monitors grounding continuity to prevent electrical hazards.

• Optional Grounding Conductor: Adds safety in high-risk mining environments.

• Portable Design: Round shape facilitates movement around mobile mining equipment.

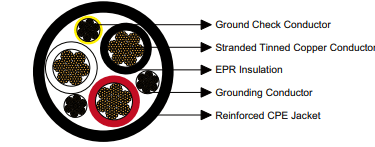

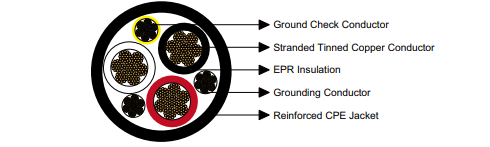

What Is the Construction of Type G-GC Cable?

The robust construction of Type G-GC ensures durability and safe operation under South African mining conditions.

What Are the Conductors Made Of?

Type G-GC cables use stranded annealed tinned copper conductors, which provide several advantages:

• Flexibility: Stranding allows the cable to bend without damage.

• Corrosion Resistance: Tin coating protects against moisture and chemical exposure common in mines.

• High Conductivity: Ensures minimal energy loss even in heavy-duty applications.

What Insulation Does Type G-GC Use?

Ethylene Propylene Rubber (EPR) insulation is employed for each conductor:

• Thermal Resistance: Can withstand temperatures up to 90°C.

• Mechanical Durability: Resistant to cuts, abrasion, and impact.

• Chemical Resistance: Performs well against oils, lubricants, and cleaning agents.

• Flexibility: Retains pliability in low temperatures underground.

This combination makes EPR insulation ideal for South African mining operations where cables must endure repeated handling, movement, and harsh conditions.

What About Grounding and Ground Check Conductors?

• Ground Check Conductor: A tinned copper conductor with yellow polypropylene insulation, continuously monitors the integrity of the grounding conductor.

• Optional Grounding Conductor: May have green insulation for easy identification.

This dual approach enhances electrical safety, reducing the risk of shocks or equipment failure in dynamic mining environments.

What Jacket Materials Are Available?

The outer jacket protects the cable from environmental stress:

• Standard: Reinforced heavy-duty or extra-heavy-duty CPE (chlorinated polyethylene), black.

• Optional Materials: CSP, PCP, NBR, PVC, or two-layer reinforced jackets.

• Benefits: Resistant to abrasion, chemical attack, sunlight, and mechanical impact.

Durability in Mining: The reinforced CPE jacket allows the cable to withstand drag along rough surfaces, contact with sharp edges, and extreme weather conditions above ground.

What Are the Key Mechanical and Thermal Properties of Type G-GC Cable?

Type G-GC cables are engineered for rigorous use:

• Minimum Bending Radius: 6×OD ensures the cable can bend without internal conductor stress.

• Maximum Conductor Operating Temperature: +90°C supports high-current applications.

• Operational Safety Implications:

  Prevents overheating under heavy loads.

  Minimizes mechanical failures during repeated movement.

  Ensures long-term reliability in South African mines where downtime can be costly.

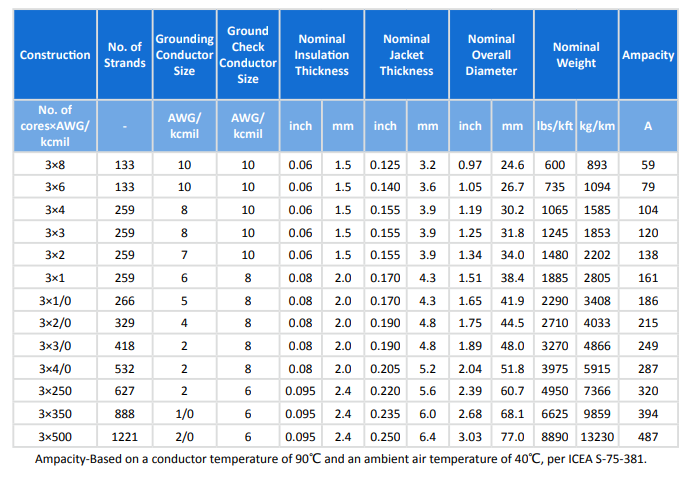

What Are the Dimensions, Weight, and Ampacity Ratings of Type G-GC Cables?

Type G-GC cables come in various sizes to suit diverse equipment needs:

Note: Ampacity is based on a conductor temperature of 90°C and an ambient temperature of 40°C, following ICEA S-75-381 standards.

Selection Guidance:

• Match conductor size with equipment current requirements.

• Consider installation environment and cable routing to avoid overheating.

• Ensure ampacity margins for high-load or continuous-duty operations.

Where Can Type G-GC 2kV Cables Be Used in South Africa?

Type G-GC is widely applied in South African mines and industrial settings:

• Mobile Mining Equipment:

  Continuous miners

  Drills and cutters

  Loading machines

• Shuttle Cars and Pumps

• Industrial Machinery: Where portable high-current power is required.

• Advantages in High-Mechanical-Load Environments:

  Flexibility for equipment movement.

  Robust jacket for abrasive and wet conditions.

  Ground check for enhanced safety.

How Do You Install and Maintain Type G-GC Cables?

Proper handling and maintenance are crucial to ensure cable longevity:

• Installation Practices:

  Avoid sharp bends; adhere to 6×OD bending radius.

  Keep away from high-heat surfaces.

  Support long runs with cable trays or reels to reduce stress.

• Handling Tips:

  Do not drag cables across sharp rocks or metal edges.

  Avoid kinks and twists during deployment.

• Maintenance:

  Regularly inspect insulation and jacket for cuts or abrasion.

  Test ground and ground check conductors.

  Replace or repair damaged sections promptly.

Safety Checks:

• Verify grounding continuity.

• Monitor insulation integrity.

• Ensure no overheating at high-load points.

What Options Are Available for Customization?

Type G-GC cables can be tailored to specific project needs:

• Jacket Materials: CSP, PCP, NBR, PVC for chemical or extreme temperature environments.

• Two-Layer Reinforced Jackets: Added mechanical protection for high-wear applications.

• Custom Conductor Sizes: For special ampacity requirements or long-distance runs.

Customization ensures the cable meets the unique demands of South African mines and industrial operations.

How Does Type G-GC Compare to Other 2kV Portable Power Cables?

This comparison helps engineers and buyers make informed choices based on environmental conditions, equipment requirements, and safety considerations.

Frequently Asked Questions (FAQ)

Can Type G-GC Cable Handle Extreme Mining Conditions?

Yes, reinforced jackets, tinned copper conductors, and EPR insulation make it highly durable for harsh mining environments, including wet, abrasive, and high-load conditions.

Is This Cable Suitable for High-Temperature Applications?

With a maximum conductor operating temperature of 90°C and insulation designed for thermal stress, Type G-GC can safely handle high-temperature scenarios common in underground mining.

How Do I Choose the Correct Conductor Size for My Equipment?

Ampacity tables based on 90°C conductor temperature guide selection. Engineers should consider equipment load, ambient temperature, and installation method.

Can Type G-GC Be Used in Wet or Underground Environments?

Yes, the cable's reinforced jacket, water-resistant insulation, and ground check conductor make it suitable for wet conditions and underground deployment.

What Safety Standards Does This Cable Comply With?

• ICEA S-75-381 / NEMA WC 58

• ASTM B 172 / B 33

• CAN/CSA-C22.2 No.96

These standards ensure reliability, safety, and compliance with South African mining and industrial regulations.

How South African Mines Use Type G-GC Cables

1: Continuous Miner Operations in Gauteng

A gold mining operation in Gauteng uses Type G-GC to power continuous miners. Engineers reported minimal downtime due to cable failure, attributed to the robust tinned copper conductors and reinforced CPE jacket. The ground check system improved safety compliance for underground workers.

2: Shuttle Car Systems in Rustenburg Platinum Mines

Shuttle cars rely on flexible portable power cables for operation in narrow tunnels. Type G-GC cables enabled safe, reliable movement of shuttle cars, with reduced wear due to the reinforced jacket and optimal bending radius.

3: Pump Installations in Mpumalanga Coal Mines

Coal mining pumps exposed to abrasive coal dust and chemicals utilized Type G-GC cables. The combination of EPR insulation and heavy-duty CPE jackets ensured long service life and consistent ampacity.

Lessons Learned:

• Proper handling and installation reduce mechanical damage.

• Ground check conductors improve safety oversight.

• Selecting the correct ampacity and jacket type prevents overheating and mechanical failures.

What Are the Key Takeaways for Buyers and Engineers?

• Type G-GC 2kV cables provide safety, flexibility, and durability for South African mining and industrial applications.

• Key advantages include tinned copper conductors, EPR insulation, reinforced CPE jackets, and ground check conductors.

• Correct selection, installation, and maintenance extend cable life and improve operational reliability.

• Customization options ensure suitability for extreme environments or unique equipment requirements.

Call to Action:
Contact our team for a tailored Type G-GC solution for your mining or industrial project.
