What Testing Procedures Are Used for Aging Mining Cables?

Mining operations across South Africa depend heavily on reliable electrical systems to keep production running smoothly. From the deep shafts of the Witwatersrand to the vast platinum mines of the Bushveld Complex, cables form the backbone of every mining operation. However, these critical components face unprecedented challenges in harsh underground environments where heat, moisture, mechanical stress, and chemical exposure take their toll over time.

The importance of cable integrity cannot be overstated in mining operations. A single cable failure can result in production shutdowns, equipment damage, and most critically, pose serious safety risks to miners. With South Africa's mining industry contributing significantly to the economy, ensuring the reliability of aging cables through proper testing procedures has become paramount.

Mining cables endure extreme conditions that accelerate aging processes. Underground environments expose cables to temperatures that can exceed 40°C, constant moisture from groundwater seepage, mechanical stress from heavy machinery movement, and chemical exposure from blasting residues. These factors combine to create a perfect storm for cable degradation, making periodic testing not just advisable but essential for safe operations.

Why Aging Cables Must Be Tested?

Cable aging is an inevitable process that affects every component of the cable system. Over time, insulation materials experience molecular degradation, becoming brittle and losing their dielectric properties. This degradation typically manifests as reduced insulation resistance, increased dielectric losses, and potential for electrical breakdown under normal operating conditions.

Conductor corrosion presents another significant concern in mining environments. Moisture ingress through compromised cable jackets can lead to oxidation of copper conductors, increasing resistance and creating hot spots that further accelerate deterioration. This process is particularly problematic in South African mines where high humidity levels and groundwater presence are common.

Mechanical wear from continuous movement, vibration, and abrasion gradually weakens cable structures. Mining equipment operates under constant motion, causing cables to flex, bend, and stretch repeatedly. Over time, this mechanical stress can cause conductor strand breakage, insulation cracking, and sheath deterioration, all of which compromise cable performance and safety.

Regulatory compliance adds another layer of importance to cable testing. South African mining operations must comply with SANS 1520 standards, which cover the construction, materials, dimensions and electrical properties of high-voltage flexible electric trailing cables for use in mines. The NRCS (National Regulator for Compulsory Specifications) actively polices these standards, and non-compliance can result in cable confiscation, destruction, civil claims, and criminal prosecution.

Types of Tests for Aging Mining Cables

Electrical Tests

Insulation Resistance Testing forms the cornerstone of electrical cable assessment. This test measures the resistance between conductors and between conductors and earth. Aging cables typically show decreased insulation resistance due to moisture ingress, contamination, or insulation degradation. The test involves applying a DC voltage (typically 500V to 5000V depending on cable voltage rating) and measuring the resulting current flow. Results below specified minimum values indicate potential insulation failure.

Dielectric Withstand (Hi-pot) Testing evaluates the cable's ability to withstand electrical stress without breakdown. This test applies a voltage higher than the cable's rated voltage for a specified duration, typically one minute. The test voltage is gradually increased to the specified level, and any sudden increase in current indicates insulation failure. This test is particularly crucial for aging cables as it can reveal weak spots in insulation that might not be detected through standard resistance measurements.

Continuity and Conductor Resistance Checks ensure that conductors remain intact and within acceptable resistance limits. These tests detect broken strands, corroded connections, or excessive resistance that could lead to overheating. Using precision ohmmeters, technicians measure the resistance of each conductor and compare results to manufacturer specifications and previous test results to identify degradation trends.

Mechanical Tests

Tensile Strength Testing evaluates the cable's ability to withstand pulling forces encountered during installation and operation. Following the referenced document's procedures, cables undergo accelerated aging through air oven or air bomb methods before tensile testing. The air oven method involves suspending test pieces in an oven with controlled air circulation at specified temperatures for predetermined durations. The air bomb method uses pressurized air chambers at 0.55MPa pressure and elevated temperatures to simulate aging effects.

Bending and Flexibility Tests assess the cable's ability to withstand repeated flexing without damage. These tests are particularly important for trailing cables used with mobile mining equipment. Test procedures involve bending cables around mandrels of specified diameters for predetermined cycles, then examining for conductor damage, insulation cracking, or sheath deterioration.

Abrasion and Impact Resistance Assessment evaluates the cable's outer sheath durability under harsh mining conditions. These tests simulate the scraping, cutting, and impact forces that cables encounter in mining environments. Specialized equipment subjects cable samples to controlled abrasion and impact forces, measuring the extent of damage and remaining protective capability.

Environmental and Chemical Resistance Tests

Thermal Aging Simulation accelerates the aging process to predict long-term performance. Following BS EN 60811-401 standards, cables undergo controlled heating in air ovens or pressure vessels. Test pieces are exposed to elevated temperatures for specified durations, then evaluated for changes in electrical and mechanical properties. This testing helps predict cable lifespan and replacement schedules.

UV and Ozone Exposure Tests evaluate cable performance under atmospheric conditions, particularly important for surface mining operations. These tests expose cable samples to controlled UV radiation and ozone concentrations, simulating long-term outdoor exposure effects on cable sheathing materials.

Moisture and Water Ingress Testing assesses the cable's resistance to water penetration, critical in underground mining where groundwater is prevalent. Tests involve subjecting cables to water immersion, pressure testing, and humidity exposure while monitoring for electrical performance degradation.

Condition Monitoring Techniques

Visual inspections remain the first line of defense against cable failure. Trained technicians examine cables for visible signs of aging including jacket cracking, swelling, discoloration, or physical damage. These inspections should be conducted regularly, with particular attention to areas subject to mechanical stress or environmental exposure.

Thermal imaging provides valuable insights into cable condition by detecting hot spots that indicate increased resistance or overloading. Infrared cameras can identify temperature anomalies that suggest conductor corrosion, connection problems, or insulation degradation. Regular thermal surveys help identify problems before they cause failures.

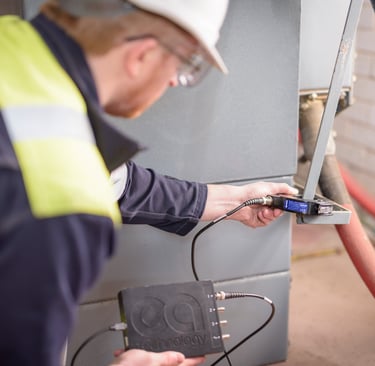

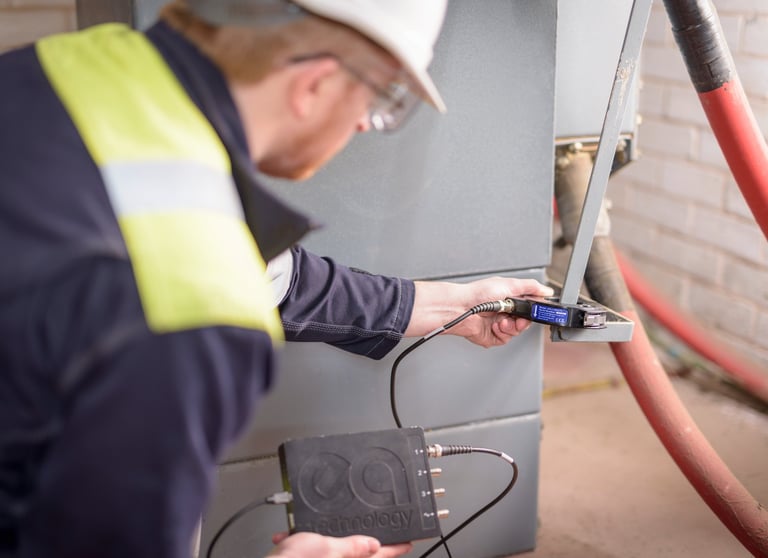

Partial discharge detection represents advanced monitoring for medium-voltage cables. This technique identifies electrical discharges within insulation that indicate deterioration. Specialized equipment can detect and locate partial discharge activity, providing early warning of potential failures.

Smart monitoring tools, including embedded sensors and data logging systems, offer continuous monitoring capabilities. These systems track parameters such as temperature, vibration, and electrical characteristics, providing real-time data on cable condition and performance trends.

Testing Frequency and Standards

South African mining operations should establish regular testing schedules based on cable type, application, and environmental conditions. High-voltage trailing cables typically require annual testing, while fixed installation cables may be tested every two to three years. However, harsh environments or critical applications may necessitate more frequent testing.

Compliance with South African National Standards (SANS) is mandatory for mining operations. SANS 1520 specifically addresses high-voltage flexible electric trailing cables for mining applications, establishing requirements for construction, materials, and electrical properties. Additional standards such as SANS 1507 for low-voltage flexible mining connections provide comprehensive guidance for different cable types.

International standards, including IEC 60811 series for cable testing methods, provide additional technical guidance. These standards specify test procedures, equipment requirements, and acceptance criteria for various cable tests.

Best practices differ between underground and open-cast mining operations. Underground cables face more severe conditions and typically require more frequent testing. Open-cast operations may have different priorities, with UV exposure and temperature cycling being primary concerns rather than moisture and confined space issues.

Consequences of Neglecting Testing

The consequences of inadequate cable testing can be severe and far-reaching. Equipment failures due to aging cables can result in extended production shutdowns, particularly problematic in South Africa's mining industry where operational efficiency directly impacts profitability. Production losses from unplanned shutdowns can cost mining companies millions of rand per day.

Safety hazards pose the most serious consequence of cable failure. Electrical faults can cause fires, explosions, or electrocution hazards that threaten worker safety. In confined underground spaces, these risks are amplified, making proactive testing essential for maintaining safe working conditions.

Equipment damage from cable failures often extends beyond the cable itself. Electrical faults can damage expensive mining equipment, control systems, and infrastructure. The cost of replacing damaged equipment often exceeds the cost of preventive cable testing by orders of magnitude.

Recent incidents in South African mines have highlighted the importance of proper cable maintenance. While specific details of individual incidents are often confidential, industry reports indicate that electrical failures remain a significant cause of production losses and safety incidents in mining operations.

Conclusion

Cable testing plays a crucial role in ensuring mine safety and operational reliability. The harsh conditions in South African mining operations accelerate cable aging, making regular testing not just advisable but essential for safe and efficient operations. Through comprehensive testing programs that include electrical, mechanical, and environmental assessments, mining companies can identify potential problems before they cause failures.

Proactive maintenance through regular testing proves more cost-effective than reactive replacement after failures occur. The investment in testing equipment and procedures pays dividends through reduced downtime, improved safety, and extended cable life. Mining companies that embrace comprehensive cable testing programs position themselves for improved operational efficiency and enhanced safety performance.

The integration of advanced monitoring technologies with traditional testing methods offers promising opportunities for further improvements. Smart sensors, data analytics, and predictive maintenance techniques can enhance the effectiveness of cable testing programs while reducing costs and improving safety outcomes.

As South Africa's mining industry continues to evolve and modernize, the importance of reliable electrical systems will only increase. Comprehensive cable testing programs represent a fundamental investment in operational excellence, safety, and long-term profitability.

FAQs

How often should mining cables be tested in South Africa?
A: High-voltage trailing cables typically require annual testing, while fixed installation cables may be tested every two to three years. However, harsh environments or critical applications may necessitate more frequent testing. The specific frequency should be determined based on cable type, application, environmental conditions, and manufacturer recommendations.

What are early signs of cable aging?
A: Early signs of cable aging include visible jacket cracking or discoloration, reduced insulation resistance measurements, increased conductor resistance, thermal anomalies detected through infrared imaging, and partial discharge activity in medium-voltage cables. Regular visual inspections and electrical testing can identify these signs before they lead to failures.

Can old cables be refurbished or must they be replaced?
A: While minor repairs such as connector replacement or localized sheath repairs may be possible, extensively aged cables typically require replacement. The decision depends on the extent of degradation, safety requirements, and economic considerations. In mining applications, the risk of failure often outweighs the cost savings of refurbishment.

Who performs certified cable testing in the mining industry?
A: Certified cable testing should be performed by qualified technicians using calibrated equipment and following established procedures. Many mining companies maintain in-house testing capabilities, while others contract with specialized testing laboratories. The key requirement is that testing personnel have appropriate training and equipment to conduct tests safely and accurately according to relevant standards.
