Why Do Mining Cables Experience High Resistance at Connectors?

In South Africa's challenging mining landscape, where the industry is valued at around R1 trillion in 2024, electrical infrastructure reliability has never been more critical. With mining production remaining below pre-pandemic levels and the ongoing energy crisis posing pressing threats, every component of electrical systems must perform flawlessly. Yet one of the most overlooked yet problematic issues plaguing mining operations is high resistance at cable connectors.

High resistance at mining cable connectors occurs when electrical current encounters increased opposition at connection points, leading to voltage drops, heat generation, and potential system failures. This phenomenon affects everything from conveyor belt motors to ventilation systems, underground lighting, and critical safety equipment. Given the harsh conditions in South African mines, where equipment must withstand extreme temperatures, moisture, dust, and mechanical stress, connector resistance problems can escalate quickly from minor inefficiencies to catastrophic failures.

Understanding the root causes, impacts, and solutions for high connector resistance is essential for mining engineers, maintenance teams, and safety officers. This comprehensive guide examines why these issues occur, their consequences for mining operations, and proven strategies to prevent and address connector resistance problems in South Africa's demanding mining environment.

Causes of High Resistance at Connectors

Environmental Contamination and Corrosion

The primary culprit behind high resistance in mining cable connectors is environmental contamination. South African mines present particularly challenging conditions where dust, moisture, and chemical exposure create the perfect storm for connector degradation. Coal dust in Mpumalanga mines, for instance, combines with humidity to form conductive films on connector surfaces, creating alternate current paths that increase overall resistance.

Corrosion represents another significant factor, especially in coastal mining operations or underground environments with high humidity. When connector metals oxidise, they form non-conductive layers that impede current flow. This is particularly problematic with dissimilar metals in connector assemblies, where galvanic corrosion accelerates the process. The presence of sulfur compounds in certain mining environments, common in South African gold and platinum operations, further exacerbates corrosion rates.

Mechanical Degradation and Wear

Mining equipment operates under constant vibration, shock, and mechanical stress. These forces gradually loosen connector assemblies, reducing contact pressure between mating surfaces. As contact pressure decreases, the effective contact area diminishes, concentrating current flow through smaller regions and increasing resistance. This mechanical degradation is particularly pronounced in mobile mining equipment and conveyor systems where continuous movement stresses electrical connections.

Thermal cycling also contributes to mechanical degradation. As connectors heat up during operation and cool down during shutdowns, thermal expansion and contraction create micro-movements that gradually wear contact surfaces. Over time, these microscopic changes accumulate, leading to increased resistance and potential connection failures.

Installation and Maintenance Issues

Improper installation practices frequently cause high resistance problems that could otherwise be prevented. Insufficient torque on threaded connections, inadequate surface preparation before assembly, and failure to use appropriate contact compounds all contribute to increased resistance. Many mining operations, pressured by production schedules, may rush electrical installations without following proper procedures.

Noncompliant electrical cables in South Africa may compromise safety by potentially leading to hazards such as overheating, short circuits, fires and electrical shocks, highlighting the importance of proper installation practices. Using non-standard or counterfeit connectors, a growing problem in cost-conscious mining operations, often results in poor contact performance and premature failure.

Cable and Connector Design Limitations

Some mining cable systems suffer from inherent design limitations that predispose them to high resistance issues. Undersized contact areas for the current requirements, inadequate ingress protection ratings for the operating environment, and poor material selection all contribute to resistance problems. Older mining installations may use connector designs that were adequate when installed but cannot handle increased power demands from modern equipment.

The complexity of modern mining electrical systems also creates challenges. Multi-conductor cables with numerous connections increase the probability of resistance issues, while high-frequency switching from variable frequency drives can accelerate connector degradation through arcing and heating effects.

Impacts of High Resistance

Equipment Performance Degradation

High resistance at connectors creates a cascade of performance issues throughout mining electrical systems. Voltage drops caused by resistive connections reduce the available voltage at equipment terminals, causing motors to draw higher currents to maintain torque output. This increased current consumption leads to higher operating temperatures, accelerated insulation aging, and reduced equipment lifespan.

In conveyor systems, voltage drops can cause speed variations that affect material handling efficiency and increase wear on mechanical components. Variable frequency drives become particularly sensitive to supply voltage variations, potentially triggering protective shutdowns that halt production. Given that mining volumes were down by 6%, or $1.8 billion last year partly due to infrastructure issues, these performance impacts directly affect profitability.

Safety Hazards and Fire Risks

High resistance connections generate excessive heat, creating serious safety hazards in mining environments. Hot connectors can ignite flammable materials, including cable insulation, creating fire risks in confined underground spaces. The heat generation also accelerates insulation degradation, potentially leading to ground faults or short circuits that endanger personnel.

Arcing at high-resistance connections poses additional safety risks. Electrical arcs can ignite methane or other combustible gases present in mining environments, creating explosion hazards. The electromagnetic interference generated by arcing can also disrupt sensitive electronic equipment, including safety monitoring systems and communication devices essential for mine safety operations.

Economic Consequences

The economic impact of high resistance connector problems extends far beyond the immediate repair costs. Unplanned shutdowns caused by connector failures disrupt production schedules, forcing expensive catch-up operations or overtime costs. Emergency repairs often require premium pricing for parts and labour, especially in remote mining locations where specialised technicians must be brought in urgently.

Energy waste represents another significant cost factor. High resistance connections consume additional power without providing useful work, directly increasing electricity costs. In the context of rising input costs, especially electricity affecting South African mining operations, this inefficiency becomes particularly costly. The compound effect of reduced equipment efficiency due to voltage drops further increases energy consumption across the entire operation.

Maintenance and Downtime Challenges

High resistance problems create unpredictable maintenance requirements that disrupt planned maintenance schedules. Emergency repairs often require shutting down entire systems, affecting multiple production areas simultaneously. The intermittent nature of some resistance problems makes diagnosis difficult, leading to repeated service calls and extended troubleshooting time.

Spare parts management becomes complicated when connector problems cause unexpected failures of downstream equipment. Motors, drives, and control systems stressed by poor power quality may fail prematurely, requiring additional inventory investment and increasing parts carrying costs.

Solutions and Preventive Measures

Proper Connector Selection and Specification

Selecting appropriate connectors for specific mining applications represents the first line of defence against resistance problems. Connectors must be rated not only for the electrical requirements but also for the environmental conditions they will encounter. IP (Ingress Protection) ratings should match or exceed the expected exposure to dust and moisture, while temperature ratings must accommodate both ambient conditions and heat generated by current flow.

Contact material selection proves critical for long-term performance. Silver-plated contacts offer excellent conductivity and corrosion resistance for high-current applications, while gold plating provides superior corrosion resistance for low-current control circuits. Proper connector sizing ensures adequate contact area and current-carrying capacity with appropriate derating factors for temperature and environmental conditions.

For South African mining operations dealing with harsh conditions, hermetically sealed connectors or those with positive pressure ventilation systems may be necessary. These solutions prevent contamination ingress that leads to corrosion and resistance buildup over time.

Installation Best Practices

Implementing proper installation procedures significantly reduces the likelihood of high resistance problems. Surface preparation before assembly must include cleaning all contact surfaces with appropriate solvents to remove oxidation, contaminants, and old contact compounds. Applying fresh contact compound or anti-oxidant paste helps maintain low resistance connections over time.

Torque specifications must be followed precisely during installation. Under-torquing results in inadequate contact pressure and high resistance, while over-torquing can damage connector bodies or strip threads. Using calibrated torque tools and documenting torque values provides accountability and enables proper inspection protocols.

Cable preparation also affects connector performance. Proper stripping lengths, uniform conductor termination, and appropriate conductor preparation techniques ensure optimal contact between cable and connector. Using proper crimping tools and techniques, when applicable, creates reliable mechanical and electrical connections that resist loosening over time.

Preventive Maintenance Programs

Systematic preventive maintenance programs identify and address connector problems before they cause failures. Thermographic inspections provide excellent early detection of high resistance connections by identifying hot spots under load conditions. Regular thermographic surveys should be conducted during peak load periods to maximise problem detection sensitivity.

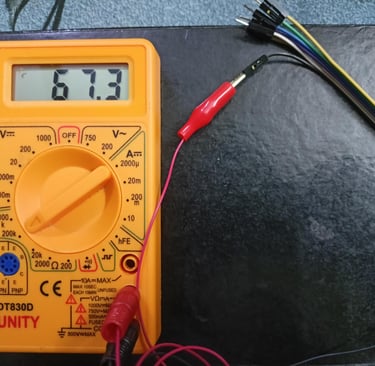

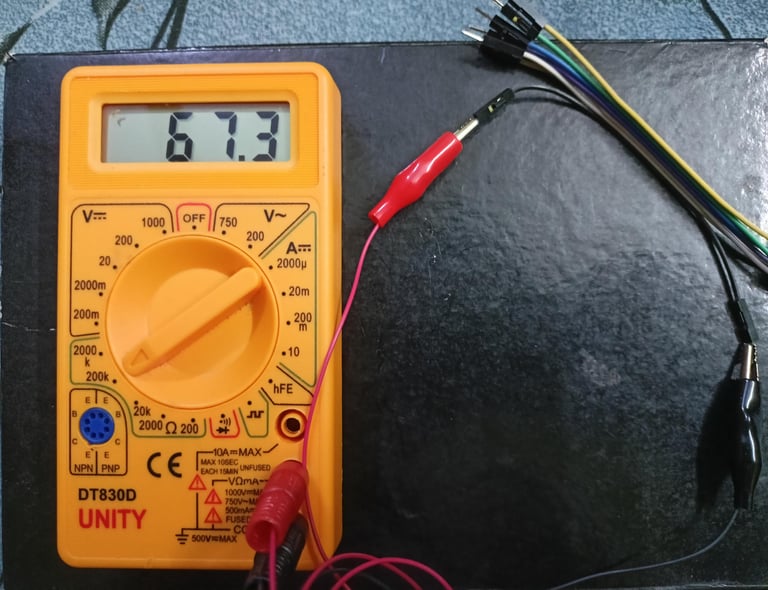

Contact resistance measurements using low-resistance ohmmeters or micro-ohmmeters provide quantitative assessment of connection quality. Establishing baseline measurements during installation and trending these values over time enables predictive maintenance strategies that address problems before they cause equipment failures.

Visual inspections should focus on signs of overheating, corrosion, mechanical damage, or contamination. Loose connections often show evidence of arcing or burning around contact areas. Documenting inspection findings and tracking trends helps identify problematic connector types or installation practices that require attention.

Environmental Protection Strategies

Protecting connectors from environmental contamination significantly extends their service life and maintains low resistance performance. Proper enclosures with appropriate IP ratings prevent dust and moisture ingress that leads to corrosion and contamination buildup. Positive pressure systems can prevent contamination ingress in particularly challenging environments.

Drainage provisions in connector enclosures prevent water accumulation that accelerates corrosion processes. Breathing devices with desiccant cartridges help control humidity levels inside enclosures while allowing pressure equalisation. For outdoor installations, proper drainage and weatherproofing prevent water ingress during maintenance activities.

Contamination control extends beyond individual connectors to include general housekeeping practices that minimise dust and chemical exposure. Regular cleaning of electrical equipment areas and proper handling of chemicals and lubricants help maintain cleaner operating environments for electrical connections.

Advanced Monitoring and Diagnostic Technologies

Modern mining operations can leverage advanced monitoring technologies to detect and predict connector problems before they cause failures. Continuous monitoring systems using wireless sensors can track connector temperatures, vibration levels, and even acoustic emissions that indicate developing problems.

Power quality monitoring equipment can detect voltage drops and phase imbalances that suggest high resistance connections in the electrical distribution system. These systems provide early warning of developing problems and help locate problem areas for targeted maintenance attention.

Infrared monitoring systems with fixed sensors can continuously monitor critical connections, providing immediate alerts when temperatures exceed preset thresholds. These systems prove particularly valuable for monitoring connections in hazardous areas where routine inspection access is limited.

Frequently Asked Questions

Q: How often should mining cable connectors be inspected for high resistance issues?

A: The inspection frequency depends on environmental conditions and criticality of the equipment served. High-vibration or contaminated environments may require monthly inspections, while protected indoor installations might be inspected quarterly. Critical systems should be monitored more frequently, potentially with continuous monitoring systems. Thermographic inspections should be conducted at least annually, with trending analysis to identify developing problems.

Q: What are the warning signs that indicate a connector is developing high resistance problems?

A: Visual signs include discoloration around connector bodies, evidence of overheating such as melted insulation or plastic components, corrosion on exposed metal parts, and loose hardware. Operational signs include equipment running hotter than normal, reduced performance, flickering lights, or intermittent operation. Unusual odours, particularly ozone or burning smells near electrical connections, also indicate developing problems.

Q: Can high resistance connector problems be repaired, or must the entire connector assembly be replaced?

A: The repair versus replacement decision depends on the extent of damage and the connector type. Surface contamination and minor corrosion can often be cleaned and treated with appropriate contact compounds. However, connectors showing signs of overheating damage, such as melted plastic components or severely oxidised contacts, typically require replacement. The cost of labour for cleaning and treating marginal connectors often exceeds replacement costs, making replacement the more economical choice.

Q: How do South Africa's unique mining conditions affect connector resistance problems?

A: South African mining conditions present several challenges that accelerate connector degradation. High altitude operations experience greater temperature variations that accelerate thermal cycling effects. Coastal operations face salt air contamination that accelerates corrosion. The combination of dust, humidity, and chemical exposure in many South African mines creates particularly aggressive environments for electrical connections. The ongoing energy crisis also places additional stress on electrical systems as operations attempt to maximise efficiency from available power.

Q: What role does cable quality play in connector resistance issues?

A: Cable quality significantly affects connector performance and resistance development. Noncompliant electrical cables may compromise safety by potentially leading to hazards such as overheating, short circuits, fires and electrical shocks. Poor quality cables may have undersized conductors that increase current density at connectors, accelerating heating and degradation. Inadequate insulation may allow moisture ingress that promotes corrosion. Using cables with proper specifications and quality certifications helps ensure reliable connector performance over the equipment lifecycle.

Q: How can mining operations balance connector maintenance costs with production requirements?

A: Effective planning integrates connector maintenance with scheduled production shutdowns to minimise impact on operations. Condition-based maintenance using monitoring technologies helps focus maintenance efforts on connections that actually need attention rather than following arbitrary time-based schedules. Implementing standardised connector types reduces spare parts inventory and training requirements. Proper initial installation and environmental protection extend service intervals, reducing long-term maintenance costs while improving reliability.

Conclusion

High resistance at mining cable connectors represents a significant challenge for South African mining operations, affecting safety, efficiency, and profitability. Understanding the root causes—environmental contamination, mechanical degradation, installation issues, and design limitations—enables targeted solutions that address specific operational requirements.

The impacts extend far beyond simple electrical problems, affecting equipment performance, creating safety hazards, and imposing substantial economic costs through energy waste and unplanned downtime. Given that the mining sector faces pressure from falling commodity prices and efficiency demands, addressing connector resistance issues becomes even more critical for maintaining competitive operations.

Successful management of connector resistance problems requires a comprehensive approach combining proper component selection, installation best practices, systematic preventive maintenance, and environmental protection strategies. Advanced monitoring technologies provide additional tools for early problem detection and predictive maintenance strategies that minimise unexpected failures.

The investment in proper connector management pays dividends through improved equipment reliability, enhanced safety performance, and reduced operating costs. As South African mining operations navigate the challenges of energy constraints and economic pressures, maintaining electrical system reliability through proper connector maintenance becomes essential for sustainable operations.

By implementing the solutions and preventive measures outlined in this guide, mining operations can significantly reduce connector resistance problems while improving overall electrical system performance. The key lies in understanding that connectors are critical components that require the same attention to selection, installation, and maintenance as any other essential mining equipment component.
