Why Is SANS 1520-1 Type 41 Trailing Cable Essential for South Africa's Mining Revolution?

Introduction: The Need for Tougher, Smarter Cables

South Africa's industrial heartland stretches from the platinum mines of Rustenburg to the coal fields of Witbank, and across the diamond territories of the Northern Cape. These environments demand more than ordinary electrical infrastructure – they require cables that can withstand crushing loads, extreme temperatures, chemical exposure, and constant movement whilst maintaining absolute electrical integrity.

As South Africa continues to modernise its mining operations in response to global commodity demands and technological advancement, the role of flexible trailing cables has become increasingly critical. These cables serve as the lifelines connecting mobile mining equipment to power sources, enabling the safe operation of electric shovels, loaders, conveyor systems, and drilling machines that drive the nation's mineral extraction industry.

Enter the SANS 1520-1 Type 41 Cu/EPR/CR/Braid/CR 640/1100V flexible mining electric trailing cable – a sophisticated piece of engineering that represents the gold standard in South African industrial cable technology. This SANS 1520-1 cable isn't merely a power transmission medium; it's a carefully designed solution that addresses the unique challenges faced by South African mining operations, from the deep underground workings of the Witwatersrand to the massive open-cast operations in Limpopo Province.

The significance of choosing the right Type 41 trailing cable cannot be overstated. In mining environments where equipment downtime can cost millions of rand per day, and where worker safety is paramount, the electrical infrastructure must be absolutely reliable. This cable represents years of engineering refinement, combining international best practices with specific adaptations for South African conditions and regulatory requirements.

Understanding the Cable Model: What Is SANS 1520-1 Type 41?

The SANS 1520-1 standard forms the backbone of South Africa's approach to mining cable safety and performance. Developed by the South African Bureau of Standards (SABS), this standard specifically addresses the unique requirements of trailing cables used in mobile mining applications, ensuring they can withstand the mechanical stresses, environmental conditions, and electrical demands of South African mining operations.

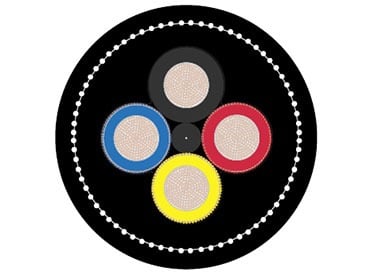

Understanding the SANS Type 41 mining cable requires breaking down its model designation, which reads like a technical blueprint:

Cu represents the copper conductor at the cable's heart. Copper's excellent conductivity, ductility, and corrosion resistance make it indispensable for mining applications. The conductors in Type 41 cables typically conform to Class 5 or 6 flexibility standards, meaning they consist of multiple fine strands that can flex repeatedly without work-hardening or breaking.

EPR stands for Ethylene Propylene Rubber insulation, a synthetic rubber compound that offers exceptional electrical insulation properties combined with superior resistance to heat, ozone, and chemical degradation. This insulation maintains its integrity across temperature ranges from -40°C to +90°C, crucial for equipment operating in both the scorching surface conditions of the Kalahari and the controlled environments of deep mines.

CR appears twice in the designation, representing Chloroprene Rubber (also known as Neoprene) used for both inner bedding and outer sheathing. This material provides outstanding mechanical protection, flame retardancy, and resistance to oils, acids, and abrasion – all critical factors in mining environments where cables may contact various chemicals and experience constant mechanical stress.

Braid refers to the reinforcement layer, typically constructed from high-strength polyester or aramid fibres. This braided reinforcement provides tensile strength and helps distribute mechanical loads across the cable structure, preventing localised stress concentrations that could lead to failure.

The 640/1100V voltage rating indicates the cable's capability to operate safely at 640V phase-to-earth and 1100V phase-to-phase, making it suitable for the low- to medium-voltage systems commonly used in mobile mining equipment and industrial machinery.

This flexible electric trailing cable design philosophy reflects decades of experience in South African mining conditions, where cables must perform reliably despite being dragged across rough surfaces, subjected to crushing loads, and exposed to extreme environmental conditions.

Key Specifications and Parameters

The technical specifications of the SANS 1520-1 Type 41 cable reflect its engineered excellence for demanding applications. Understanding these trailing cable specifications helps mining engineers and electrical contractors make informed decisions about cable selection and installation.

Voltage Rating: The 640/1100V rating provides adequate safety margins for typical mining equipment operating voltages whilst remaining within the low-voltage classification that simplifies installation and maintenance procedures. This voltage level is particularly suited to mobile equipment control systems, lighting circuits, and auxiliary power applications.

Core Construction: The cable employs multi-core copper conductors manufactured to Class 5 or 6 flexibility standards as defined in IEC 60228. These conductors consist of multiple fine copper strands, with Class 6 offering superior flexibility for applications involving frequent movement. The conductor sizes typically range from 2.5mm² to 95mm², accommodating various power requirements from control circuits to main power feeds.

Insulation Material: The EPR insulation provides several critical advantages over traditional rubber or PVC insulation. Its EPR insulation benefits include excellent dielectric strength, maintaining insulation integrity even when subjected to mechanical stress, and superior aging characteristics that extend cable service life. The material remains flexible at low temperatures and maintains its properties at continuous operating temperatures up to 90°C.

Sheath Material: The dual CR sheath system provides multi-layered protection. The inner CR bedding protects the conductor assembly from mechanical damage and provides additional electrical insulation, whilst the outer CR sheath offers primary mechanical protection, flame retardancy, and environmental resistance. This chloroprene rubber formulation meets stringent flame propagation requirements whilst maintaining flexibility and tear resistance.

Braided Reinforcement: The polyester or aramid braid between the sheath layers provides tensile strength exceeding 1000N for typical cable sizes, ensuring the cable can withstand the pulling forces encountered during installation and operation. This reinforcement also helps maintain the cable's structural integrity when subjected to crushing or impact loads.

Compliance Standards: Beyond SANS 1520-1 compliance, these cables must meet NRCS safety requirements and often incorporate additional safety features such as enhanced flame retardancy and reduced smoke emission characteristics required in confined mining environments.

The Type 41 cable parameters are designed to provide service life exceeding 10 years under normal operating conditions, with flexibility ratings allowing millions of flex cycles – critical for trailing applications where cables experience constant movement.

Application Scenarios in South Africa

The versatility of SANS 1520-1 Type 41 cables makes them indispensable across South Africa's diverse industrial landscape. Their mining cable application extends far beyond simple power transmission, encompassing critical roles in safety systems, equipment control, and operational efficiency.

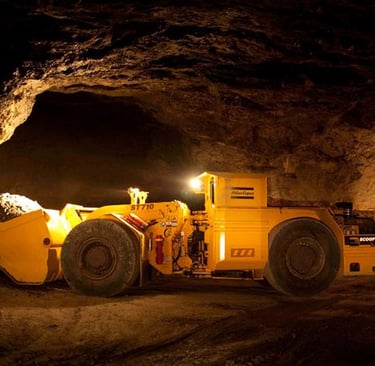

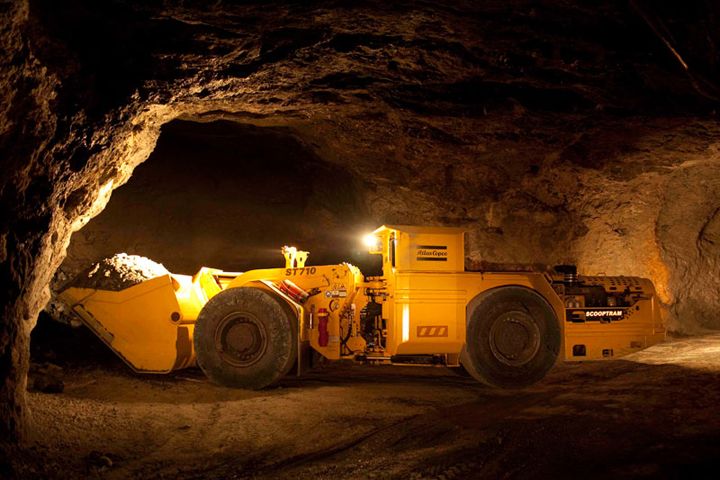

Underground Mining Applications: In the deep gold mines of the Witwatersrand and the platinum operations of the Bushveld Complex, these cables serve as power feeds for flexible trailing cable uses including electric Load-Haul-Dump vehicles, rock drills, and ventilation equipment. The cables must navigate tight confines, sharp turns, and abrasive rock surfaces whilst maintaining electrical integrity in environments where methane gas may be present, making flame retardancy crucial.

Recent developments in South Africa's mining sector, including the push toward mechanisation and remote operation technologies, have increased demand for reliable cable systems. The implementation of battery-electric vehicles in underground operations, particularly in response to environmental regulations and operational cost pressures, requires cables that can handle both power transmission and sophisticated control signals.

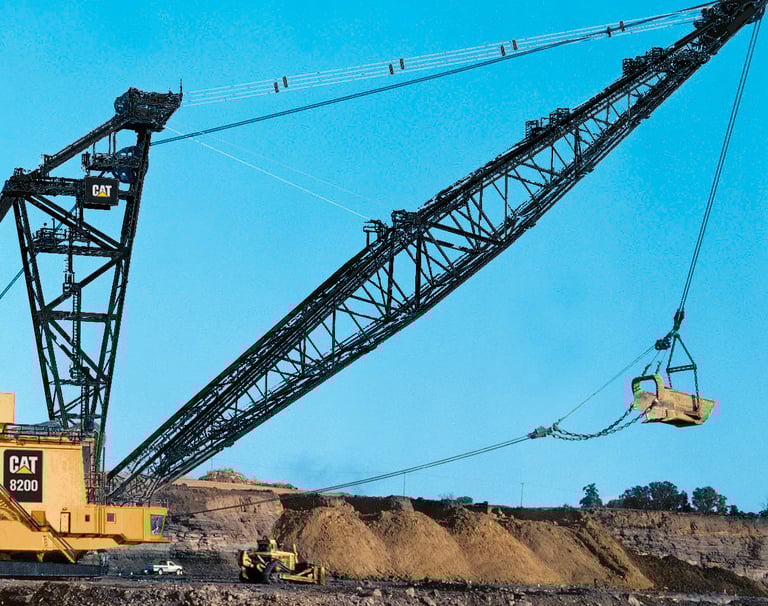

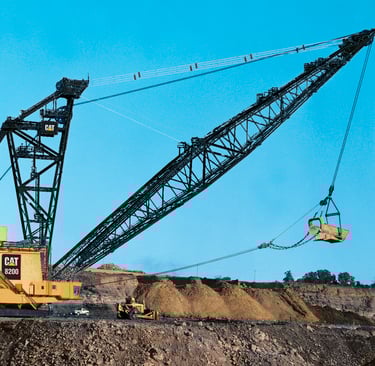

Open-Cast Mining Operations: Surface mining operations, particularly the massive coal mines in Mpumalanga and iron ore operations in the Northern Cape, utilise these cables for mobile equipment including draglines, electric rope shovels, and conveyor systems. The harsh environmental conditions – from the dust storms of the Kalahari to the sudden temperature changes of the Highveld – demand cables with superior weather resistance.

The recent expansion of renewable energy projects associated with mining operations has created new applications for trailing cables in solar tracking systems and wind farm maintenance equipment, where flexibility and environmental resistance are paramount.

Construction and Infrastructure Projects: South Africa's ongoing infrastructure development, including the construction of new ports, rail lines, and urban development projects, requires mobile construction equipment powered by reliable trailing cable systems. Projects such as the expansion of Richards Bay Port and ongoing Gautrain extensions demonstrate the need for cables that can perform reliably in challenging construction environments.

Heavy Industrial Applications: The industrial trailing cable South Africa market extends to steel mills, chemical plants, and manufacturing facilities where mobile equipment such as overhead cranes, rail-mounted machinery, and automated guided vehicles require flexible power connections. The emphasis on flexibility, abrasion resistance, and flame retardance becomes critical in environments where any cable failure could result in production shutdowns costing millions of rand.

The cable's design specifically addresses the dynamic nature of South African industrial operations, where equipment must often operate in multiple environmental zones and handle varying load conditions throughout operational cycles.

Performance Benefits in Harsh Work Conditions

The exceptional performance of SANS 1520-1 Type 41 cables in South Africa's demanding industrial environments stems from their engineered design features that address specific operational challenges. Understanding these performance characteristics helps explain why this durable mining cable has become the preferred choice for critical applications.

Mechanical Durability: The cable's construction provides exceptional crush resistance, with the ability to withstand loads exceeding 1000N/cm without permanent deformation or electrical failure. This mechanically reinforced cable design incorporates multiple protection layers that distribute mechanical stresses, preventing localised damage that could compromise electrical integrity. The high flex life rating means the cable can endure millions of bending cycles, essential for trailing applications where continuous movement is inherent to operation.

Testing conducted under South African mining conditions has demonstrated that properly installed Type 41 cables can maintain electrical performance even after exposure to the type of mechanical abuse common in mining operations – being run over by heavy machinery, dragged across sharp rock surfaces, and subjected to impact loads from falling debris.

Electrical Stability: The cable maintains consistent electrical performance throughout its service life, with insulation resistance values remaining stable even under continuous mechanical flexing. The EPR insulation system provides superior dielectric strength compared to conventional rubber compounds, ensuring reliable operation even in the presence of moisture, dust, and chemical contaminants common in mining environments.

The conductor design, utilising fine-strand copper construction, provides excellent current-carrying capacity whilst maintaining flexibility. This design prevents the work-hardening that can occur in solid or large-strand conductors subjected to repeated flexing, ensuring consistent electrical performance throughout the cable's service life.

Environmental Resilience: South Africa's diverse climate conditions, from the extreme temperatures of the Northern Cape to the humidity of coastal operations, demand cables with broad environmental tolerance. The CR sheath system provides resistance to oils, acids, alkalis, and most industrial chemicals encountered in mining and industrial operations.

UV resistance is particularly important for surface operations, where cables may be exposed to intense South African sunlight. The outer sheath formulation includes UV stabilisers that prevent degradation and cracking, maintaining mechanical properties even after prolonged sun exposure.

Safety Features: As a safe trailing cable, Type 41 incorporates multiple safety features beyond basic electrical insulation. The flame-retardant properties of both the EPR insulation and CR sheath materials help prevent fire propagation, whilst the low-smoke characteristics reduce toxic gas emission in confined spaces – critical for underground mining applications.

The cable's robust construction also provides inherent protection against electrical faults that could pose safety risks to personnel or equipment. The multiple barrier system created by the insulation, bedding, and sheath layers ensures that even if one protective layer is compromised, electrical safety is maintained.

Installation, Maintenance, and Safety Compliance

Proper installation and maintenance of SANS 1520-1 Type 41 cables are crucial for achieving their designed performance and service life. Understanding these requirements ensures both operational efficiency and compliance with South African safety regulations.

Installation Best Practices: SANS cable installation requires careful attention to mechanical protection and proper cable management. Trailing drum systems must be designed to accommodate the cable's minimum bend radius, typically 8-12 times the cable's external diameter, to prevent premature failure from stress concentration.

The installation process should incorporate proper cable entry seals at equipment connection points to prevent moisture and contaminant ingress. In underground applications, cables should be routed to avoid contact with sharp edges, moving machinery parts, and areas where heavy equipment might inadvertently damage the cable.

Recent updates to South African mining regulations emphasise the importance of proper cable marking and identification systems, ensuring that maintenance personnel can quickly identify cable specifications and installation dates during routine inspections.

Maintenance Protocols: Regular inspection forms the cornerstone of effective cable maintenance programs. Visual inspections should focus on identifying signs of mechanical damage, such as cuts, abrasions, or deformation of the outer sheath. Any damage to the sheath should be immediately assessed and repaired to prevent moisture ingress or further mechanical deterioration.

Electrical testing, including insulation resistance measurement and continuity testing, should be performed at intervals specified by the equipment manufacturer or mining company procedures. These tests help identify developing problems before they result in equipment failure or safety hazards.

Regulatory Compliance: Adherence to SANS 1520-1 standards ensures that cables meet the minimum performance requirements for South African mining applications. However, compliance extends beyond the cable itself to include installation practices, maintenance procedures, and documentation requirements.

The NRCS product conformity assessment (LOA) process ensures that cables sold in South Africa meet safety and performance standards. This certification process includes factory audits, product testing, and ongoing surveillance to maintain compliance. Mining companies should verify that any trailing cables used in their operations carry valid NRCS certification.

Mining cable safety South Africa regulations also require that cable installations be inspected and certified by qualified electrical personnel, with documentation maintained for regulatory compliance and insurance purposes. These requirements reflect the critical role that electrical infrastructure plays in mining safety and operational reliability.

FAQs – Frequently Asked Questions

Q1: What makes Type 41 different from other SANS trailing cables?

A: The Type 41's unique combination of copper conductors with EPR insulation and dual CR sheathing provides superior thermal, mechanical, and chemical resistance compared to other trailing cable types. Unlike cables with PVC or rubber insulation, the EPR system maintains flexibility and electrical properties across wider temperature ranges whilst the CR sheath offers exceptional resistance to oils, acids, and mechanical abuse common in dynamic mining applications.

Q2: Can Type 41 cables be used for underground and surface mining?

A: Yes, absolutely. The Type 41 design specifically addresses the challenges of both environments. For underground applications, the flame-retardant properties and low-smoke characteristics meet confined space safety requirements, whilst the mechanical durability handles the abrasive conditions. For surface operations, UV resistance and weather protection ensure reliable performance despite exposure to South Africa's harsh climate conditions.

Q3: Is this cable fire-resistant or flame retardant?

A: The cable is flame retardant rather than fire-resistant. The outer CR sheath and EPR insulation are formulated to resist flame propagation and meet the flame retardancy requirements specified in SANS 1520-1. This means the cable will not support combustion once the ignition source is removed, and it produces minimal smoke and non-toxic gases – critical safety features for confined mining environments.

Q4: What voltage systems can the Type 41 cable support?

A: The 640/1100V rating means the cable can safely operate in systems with 640V phase-to-earth voltage and 1100V phase-to-phase voltage. This makes it suitable for most low-voltage mining equipment, including 380V, 415V, and 525V systems commonly used in South African mining operations. The voltage rating provides adequate safety margins for normal operational variations and transient conditions.

Q5: Does the cable meet South African legal requirements?

A: Yes, Type 41 cables manufactured to SANS 1520-1 standards and carrying valid NRCS LOA certification meet all South African legal requirements for mining cable applications. This certification ensures the cable has been tested to appropriate standards and that the manufacturing facility maintains quality systems meeting South African requirements. Mining companies should always verify NRCS certification before purchasing trailing cables.

Conclusion: Why It Matters for South Africa

The choice of electrical infrastructure in South Africa's mining and industrial sectors extends far beyond simple technical specifications – it represents a fundamental decision about operational reliability, worker safety, and economic competitiveness in global markets. The SANS 1520-1 Type 41 trailing cable embodies the engineering excellence and regulatory compliance that South African industries require to maintain their competitive edge.

As South Africa continues to modernise its mining operations in response to global demand for critical minerals, including platinum group metals essential for green energy technologies and battery materials for electric vehicles, the reliability of supporting infrastructure becomes increasingly crucial. The reliable mining cable systems that power mobile equipment, control systems, and safety installations directly impact both operational efficiency and workplace safety.

The South African trailing cable market has evolved significantly in recent years, driven by stricter safety regulations, technological advancement, and the need for improved operational efficiency. Companies that invest in properly specified, certified cable systems like the Type 41 demonstrate their commitment to best practices and long-term operational sustainability.

The Type 41 cable benefits extend beyond immediate operational requirements to encompass broader business considerations including insurance compliance, regulatory adherence, and corporate social responsibility. In an era where mining companies face increasing scrutiny regarding safety practices and environmental performance, choosing certified, high-performance cable systems represents sound risk management.

Looking toward the future, South Africa's industrial landscape will continue to evolve, with increased automation, remote operation technologies, and stricter environmental regulations shaping operational requirements. The robust design and proven performance of SANS 1520-1 Type 41 cables position them as a trustworthy solution for companies navigating these changes whilst maintaining the operational reliability that South African industries demand.

For mining companies, industrial operators, and electrical contractors working in South Africa's challenging environments, the SANS 1520-1 Type 41 Cu/EPR/CR/Braid/CR 640/1100V flexible trailing cable represents more than a component specification – it represents a commitment to excellence, safety, and operational reliability that supports South Africa's continued industrial leadership on the global stage.
