Why Is Type 61B 0.64/1.1 kV Copper Screened Mining Cable Essential for African Mining Success?

Understanding the Type 61B Mining Cable

The Type 61B mining cable is a low-voltage flexible trailing cable specifically engineered for the demanding requirements of mining applications. Operating at 0.64/1.1 kV, this cable serves as the electrical lifeline for a wide range of mining equipment, including electrically driven machines, movable electric apparatus, and various installations in hazardous areas where traditional fixed wiring would be impractical or dangerous.

What sets the Type 61B apart from conventional electrical cables is its designation for non-reeling purposes. This means the cable is designed to remain flexible whilst being laid, dragged, or positioned, but it's not intended for continuous winding and unwinding on reels or drums. This characteristic makes it particularly suitable for semi-permanent installations in mining environments where equipment positioning changes occasionally but not continuously.

In African mining operations, the Type 61B has found widespread acceptance due to its exceptional durability and reliability under extreme conditions. Mine operators from Nigeria's oil fields to South Africa's gold mines have discovered that this cable consistently delivers power where and when it's needed most, often in situations where lesser cables would fail.

The cable's importance extends beyond mere power delivery. In mining environments where a power failure can mean the difference between life and death for underground workers, the reliability of electrical infrastructure becomes paramount. The Type 61B's robust design ensures that emergency ventilation systems, lighting, and communication equipment remain operational even under the most challenging circumstances.

Engineering Excellence: Design and Construction

The Type 61B mining cable represents a masterpiece of electrical engineering, with every component carefully selected and positioned to maximise performance and longevity. At its heart lie flexible Class 5 tinned annealed copper conductors, chosen specifically for their superior flexibility and resistance to corrosion. The tinning process involves coating the copper with a thin layer of tin, which provides additional protection against the corrosive effects of moisture and mineralised groundwater commonly found in African mining environments.

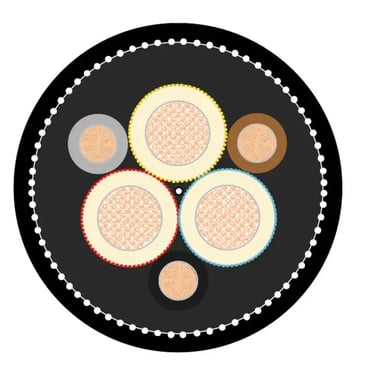

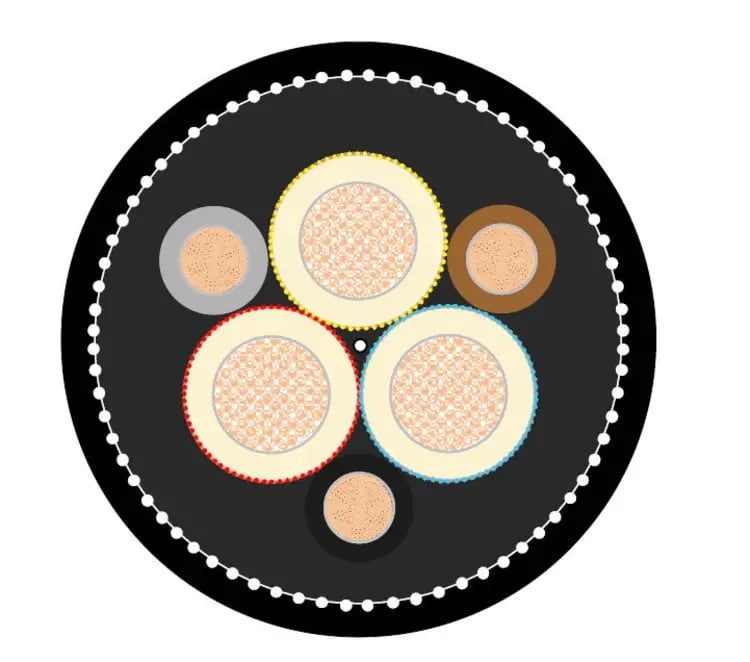

The cable's core configuration follows a sophisticated design philosophy. Three tinned copper braided screened power cores handle the main electrical load, whilst three unscreened pilot cores manage control signals and monitoring functions. These cores are carefully arranged around a semi-conductive rubber filler that maintains the cable's circular cross-section and provides additional mechanical stability.

The screening system deserves particular attention. Each power core features its own braided copper screen, which serves multiple critical functions. Firstly, it provides electromagnetic interference (EMI) protection, ensuring that sensitive electronic equipment operates without disruption from electrical noise. Secondly, the screen offers fault protection by providing a low-impedance path for fault currents, enabling rapid detection and clearance of electrical faults before they can cause damage or create safety hazards.

The insulation and sheathing system utilises polychloroprene thermosetting compound, designated as RS 6 in industry specifications. This material choice reflects decades of experience in mining cable applications. Polychloroprene, commonly known as neoprene, offers exceptional resistance to oils, chemicals, ozone, and weathering—all critical factors in mining environments where cables may be exposed to hydraulic fluids, diesel exhaust, and aggressive chemicals used in mineral processing.

The cable's construction includes an innovative reinforcement system featuring an open nylon braid with a minimum of 16 nylon strings. This seemingly simple addition provides crucial tensile strength, allowing the cable to withstand the mechanical stresses of being dragged across rough surfaces, pulled through tight spaces, and subjected to the constant vibration of mining equipment.

Perhaps most impressive is the cable's operational temperature range of -25°C to 90°C. This specification acknowledges the reality of African mining, where surface temperatures can soar above 40°C whilst underground conditions may vary dramatically depending on depth and ventilation systems. The cable's ability to maintain electrical and mechanical integrity across this broad temperature range ensures reliable operation whether installed in the freezing pre-dawn hours of a Highveld winter or the scorching heat of a West African summer.

Meeting the Standard: SANS 1520 Compliance

The South African National Standard SANS 1520 represents one of the world's most comprehensive specifications for low- and medium-voltage flexible trailing cables used in mining applications. This standard didn't emerge in a vacuum—it evolved from decades of mining experience, incorporating lessons learned from cable failures, safety incidents, and operational challenges faced by mining companies across southern Africa.

SANS 1520 Part 1 specifically addresses cables like the Type 61B, setting stringent requirements for 640V/1.1kV applications. The standard covers every aspect of cable design, from conductor materials and insulation properties to mechanical strength and environmental resistance. For a cable to earn SANS 1520 compliance, it must undergo rigorous testing that simulates and often exceeds the conditions it will face in actual mining operations.

The testing regime includes electrical tests such as high-voltage testing, insulation resistance measurements, and partial discharge testing. These assessments ensure that the cable can safely carry its rated current whilst maintaining electrical integrity under fault conditions. Mechanical tests evaluate the cable's resistance to flexing, crushing, impact, and tensile stress—all common occurrences in mining environments.

Environmental testing examines the cable's performance under extreme conditions, including exposure to chemicals, oils, water, and temperature variations. The flame retardancy tests are particularly crucial, as any cable used in mining must not contribute to fire propagation in the event of an electrical fault or external fire source.

For African mining operations, SANS 1520 compliance provides more than just technical assurance—it offers legal protection and insurance validity. Mining companies operating under South African mining law or using South African technical standards must ensure their electrical installations meet prescribed safety requirements. Non-compliant cables can result in regulatory violations, insurance claim rejections, and most importantly, increased risk to worker safety.

The standard also facilitates international trade and technology transfer. As African mining companies increasingly source equipment and expertise from multiple countries, adherence to recognised standards like SANS 1520 ensures compatibility and reduces technical risks associated with mixed-source installations.

Conquering African Mining Challenges

African mining operations present unique challenges that test electrical equipment to its limits. The continent's diverse geology, climate variations, and operational practices create an environment where only the most robust cables can survive and perform reliably.

Dust represents one of the most pervasive challenges. From the fine silica dust of gold mines to the abrasive particles generated by copper extraction, African mines produce enormous quantities of airborne particles that can penetrate electrical equipment and degrade insulation. The Type 61B's polychloroprene sheath provides excellent resistance to abrasion, maintaining its integrity even when subjected to constant dust exposure.

Moisture presents another significant challenge, particularly in mines that extend below the water table or in regions with high humidity. The combination of moisture and mineral-rich groundwater creates an aggressive environment that can rapidly degrade conventional cables. The Type 61B's tinned copper conductors and moisture-resistant sheathing provide reliable protection against corrosion, ensuring long-term electrical integrity.

Temperature extremes vary dramatically across African mining regions. Surface temperatures in desert mining operations can exceed 50°C, whilst underground conditions may remain relatively cool. However, equipment heat generation can create localised hot spots that stress cable insulation. The Type 61B's 90°C rating provides substantial safety margins for these conditions.

Chemical exposure varies by mine type and processing method. Copper mines often use sulfuric acid in processing, gold mines may employ cyanide solutions, and coal mines generate acidic drainage. The Type 61B's chemical-resistant sheathing maintains its properties even when exposed to these aggressive substances.

The cable's robust screening system addresses electromagnetic interference challenges common in modern mining operations. Today's mines increasingly rely on sophisticated electronic equipment for monitoring, control, and communication. The Type 61B's comprehensive screening ensures that power cables don't interfere with sensitive electronic systems, maintaining operational reliability across all electrical and electronic installations.

Physical stress represents perhaps the greatest challenge. Mining equipment operates continuously under harsh conditions, creating vibration, mechanical shock, and cable movement that would quickly destroy conventional cables. The Type 61B's flexible construction and reinforced design allow it to withstand these stresses whilst maintaining electrical continuity.

Real-World Applications Across Africa

The Type 61B mining cable has found extensive application across diverse African mining operations, each presenting unique operational requirements and challenges. In South Africa's deep-level gold mines, these cables power the massive winding systems that transport workers and materials thousands of metres below ground. The cable's reliability becomes critical when considering that a power failure in these systems could strand workers underground for extended periods.

In Zambia's copper mines, Type 61B cables power the heavy-duty crushers and conveyors that process millions of tonnes of ore annually. The cable's resistance to the corrosive effects of copper-bearing groundwater ensures consistent power delivery even in the most challenging hydrogeological conditions. Mine operators report significantly reduced maintenance requirements and improved operational reliability compared to alternative cable types.

The diamond mines of Botswana present their own unique challenges, with extreme temperature variations and highly abrasive conditions. Type 61B cables installed in these operations have demonstrated exceptional longevity, with some installations operating reliably for over a decade without major maintenance interventions.

In Nigeria's emerging solid mineral mining sector, Type 61B cables have enabled the development of mechanised mining operations that meet international safety and environmental standards. The cable's compliance with SANS 1520 has facilitated technology transfer and equipment sourcing from established mining regions, accelerating the development of Nigeria's mining industry.

Coal mining operations in countries like Zimbabwe and Mozambique have adopted Type 61B cables for their critical ventilation systems. In these applications, cable reliability directly impacts worker safety, as ventilation failures can lead to dangerous accumulations of methane and other hazardous gases. The Type 61B's flame-retardant properties and robust construction provide the reliability required for these life-critical applications.

Submersible pump applications represent another significant use case across African mining operations. These installations often operate in highly corrosive environments with limited access for maintenance. The Type 61B's moisture resistance and corrosion protection ensure reliable power delivery to these critical dewatering systems.

Comparative Advantages in the Mining Cable Market

The African mining cable market offers several alternatives to the Type 61B, each with specific advantages and limitations. Understanding these differences helps explain why the Type 61B has achieved such widespread adoption across the continent.

Type 61A cables, whilst similar in many respects, lack the individual core screening found in Type 61B designs. This makes them suitable for applications where electromagnetic interference is less of a concern, but limits their effectiveness in modern mining operations that increasingly rely on sensitive electronic equipment.

Type 41 cables represent a more heavy-duty alternative designed for reeling applications. Whilst these cables offer greater mechanical strength, they sacrifice flexibility and are typically more expensive than Type 61B alternatives. For non-reeling applications, the Type 61B provides optimal cost-performance balance.

International alternatives, such as IEC-compliant mining cables, are available but often lack the specific design features that make Type 61B cables ideal for African conditions. The SANS 1520 standard incorporates decades of African mining experience, resulting in specifications that directly address the unique challenges of the continent's mining environments.

The cost advantage of Type 61B cables stems from their optimised design philosophy. By focusing on non-reeling applications, manufacturers can optimise the cable construction for flexibility and durability whilst avoiding the additional costs associated with continuous flexing requirements. This results in a cable that meets the performance requirements of most African mining applications at a competitive price point.

Local manufacturing capabilities for Type 61B cables have developed significantly across Africa, reducing import costs and improving availability. This localisation has also enabled better technical support and faster response times for mining operations, further enhancing the cable's value proposition.

Future Prospects and Technological Evolution

The Type 61B mining cable continues to evolve as African mining operations become increasingly sophisticated and demanding. Emerging trends in mining technology, including automation, remote monitoring, and digitisation, are driving new requirements for electrical infrastructure.

Advanced conductor technologies are being explored to improve electrical efficiency and reduce power losses. Whilst copper remains the preferred conductor material, manufacturing improvements in wire drawing and annealing processes are producing conductors with enhanced flexibility and conductivity.

Insulation technology advancement focuses on improving thermal performance and extending operational life. New polymer formulations offer improved resistance to thermal aging whilst maintaining the mechanical properties essential for mining applications.

Smart cable technologies are beginning to emerge, incorporating sensors and monitoring capabilities directly into the cable structure. These innovations could enable real-time monitoring of cable condition, predictive maintenance scheduling, and enhanced safety through early fault detection.

Environmental considerations are also driving cable evolution. As African mining operations face increasing pressure to reduce their environmental impact, cable manufacturers are developing more sustainable materials and recycling programs for end-of-life cables.

Conclusion: The Foundation of African Mining Success

The Type 61B 0.64/1.1 kV copper screened mining cable has proven itself as an indispensable component of African mining infrastructure. Its robust construction, comprehensive SANS 1520 compliance, and proven performance in harsh mining environments make it the preferred choice for operations across the continent.

From the gold mines of Ghana to the platinum deposits of South Africa, the Type 61B cable provides the reliable power delivery that keeps Africa's mining industry operational. Its technical excellence, cost-effectiveness, and local availability have made it an integral part of the continent's mining success story.

As African mining operations continue to expand and modernise, the importance of reliable electrical infrastructure cannot be overstated. The Type 61B cable represents more than just a power transmission solution—it embodies the engineering excellence and practical experience that enable African mining companies to compete successfully in global markets.

For mining companies planning new operations or upgrading existing installations, the choice of electrical cable may seem like a minor technical detail. However, the reliability, safety, and operational efficiency that flow from selecting the right cable can determine the success or failure of an entire mining operation. The Type 61B mining cable has earned its position as the backbone of African mining infrastructure through decades of proven performance in the world's most challenging mining environments.

The future of African mining depends on the foundation of reliable infrastructure, and the Type 61B cable will continue to play a crucial role in supporting the continent's mining industry as it evolves to meet the challenges and opportunities of the 21st century.
