Why is Type 63 Mining Trailing Cable the Ultimate Power Solution for South Africa's Challenging Underground and Open-Cast Mining Operations?

Introduction: Why Power Cables Matter in South African Mining

South Africa's mining industry operates under some of the world's most demanding conditions. From the scorching heat of the Northern Cape's open-cast operations to the humid, corrosive environments of deep-level gold mines in the Witwatersrand Basin, mining equipment faces relentless challenges. Underground temperatures can soar beyond 40°C, whilst surface operations endure extreme UV exposure and dust storms that would cripple inferior electrical systems.

The backbone of any successful mining operation lies in its power infrastructure. When draglines halt due to cable failure or longwall shearers lose power mid-operation, the financial implications extend far beyond immediate repair costs. Production losses, safety risks, and equipment damage can escalate into millions of rands in downtime—a reality that South African mines know all too well.

In this harsh landscape, the Type 63 Mining Trailing Cable has emerged as a trusted solution, specifically engineered to withstand the mechanical stress, abrasion, moisture, and temperature extremes that characterise South African mining environments. Certified to SANS 1520-1 standards and designed for voltage ratings from 1.9kV to 3.3kV, this robust trailing cable represents the intersection of international engineering excellence and local regulatory compliance.

As South Africa's mining sector continues to modernise—with recent investments in automation and digital technologies across major operations—the demand for reliable, durable mining cables has never been greater. The Type 63 stands ready to power this transformation, delivering the stability and longevity that South African mines require to maintain their competitive edge in global markets.

Overview of Type 63 Mining Trailing Cable

The Type 63 Mining Trailing Cable represents a specialised solution engineered specifically for the dynamic demands of mining operations. Unlike static power cables, trailing cables must endure constant movement, bending, and mechanical stress whilst maintaining electrical integrity—a challenge that the Type 63 meets with remarkable engineering precision.

What Makes Type 63 Special?

Designed primarily for trailing applications in mining operations, the Type 63 cable excels where conventional cables fail. Its construction prioritises flexibility without compromising durability, making it ideal for equipment that requires continuous power whilst moving through challenging terrain. The cable's certification to SANS 1520-1 standards ensures it meets South Africa's stringent safety and performance requirements for hazardous mining environments.

Voltage Rating and Capacity

Operating within a voltage range of 1.9kV to 3.3kV, the Type 63 cable provides sufficient power capacity for medium-voltage mining applications. This voltage range positions it perfectly for powering draglines, conveyor systems, mobile mining equipment, and longwall machinery—the workhorses of modern South African mining operations.

Key Properties That Define Excellence

The Type 63's flame retardant properties meet SANS specifications, providing crucial safety protection in environments where fire risks are elevated. Its high mechanical strength allows it to withstand the crushing forces, sharp edges, and abrasive surfaces common in mining environments. Perhaps most importantly, the cable maintains exceptional flexibility under heavy stress, ensuring reliable operation even when subjected to repeated bending cycles that would destroy conventional cables.

The cable's suitability for dynamic environments stems from its sophisticated construction, which balances multiple performance requirements. Whether powering equipment in the confined spaces of underground operations or supporting mobile machinery across expansive open-cast sites, the Type 63 delivers consistent performance across South Africa's diverse mining landscapes.

This combination of technical excellence and regulatory compliance makes the Type 63 an essential component for mining operations seeking to optimise performance whilst maintaining the highest safety standards demanded by South African mining regulations.

Technical Specifications and Construction

The Type 63 Mining Trailing Cable's exceptional performance stems from its meticulously engineered construction, where every component serves a specific purpose in delivering reliable power under extreme conditions.

Conductor Design and Configuration

At the heart of the Type 63 lies a flexible Class 5 conductor, manufactured from tinned annealed copper wires in a left-hand lay configuration. This design complies with SANS 1411-1 standards and provides the optimal balance between conductivity and flexibility. The conductor sizes range from 25mm² to 185mm² for power cores, accommodating diverse power requirements across different mining applications.

The tinned copper construction offers superior corrosion resistance—critical in South Africa's mining environments where moisture, chemical exposure, and oxidation pose constant threats to electrical integrity. The flexible stranding ensures the cable maintains its electrical properties even after thousands of bending cycles, a crucial requirement for trailing applications.

Advanced Insulation System

The cable employs ethylene propylene thermosetting compound type RD 3 insulation, complying with SANS 1411-3 specifications. This insulation system provides excellent electrical properties whilst maintaining flexibility across temperature ranges from -25°C to +90°C—essential for operations spanning South Africa's diverse climatic conditions.

Each power core features an insulation screen constructed from braided tinned copper wires, providing electromagnetic compatibility and fault protection. This screening system ensures clean power delivery whilst protecting against electrical interference that could disrupt sensitive mining control systems.

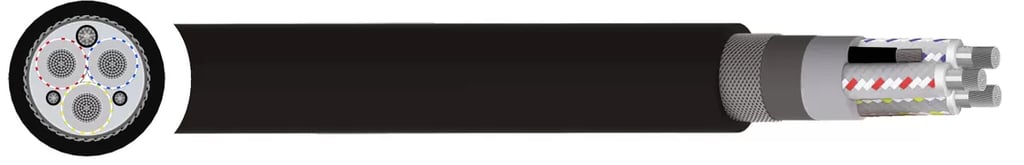

Sophisticated Cable Assembly

The Type 63's unique construction features three tinned copper braided screened power cores alongside three unscreened pilot cores, strategically positioned in each interstice and laid up in a right-hand configuration around a semi-conductive cradle centre. This arrangement optimises space utilisation whilst maintaining electrical isolation and mechanical protection.

Multi-Layer Protection System

The internal sheath utilises poly-chloroprene thermosetting compound type RS 6, providing chemical resistance and mechanical protection. A reinforcing braid of minimum 16 nylon strings adds tensile strength, whilst the outer sheath—also poly-chloroprene type RS 6—creates a bonded system that delivers superior torsional protection.

Performance Parameters

Physical properties include conductor sizes ranging from 25mm² to 185mm² for power cores, with pilot cores from 10mm² to 25mm² depending on configuration. Maximum wire diameters are precisely controlled—0.41mm for smaller conductors and 0.51mm for larger sizes—ensuring optimal flexibility and current-carrying capacity.

The braided screen maintains an 80% filling factor across all configurations, providing consistent electromagnetic shielding. Screen cross-sections range from 31mm² to 60mm² using the weighing method, ensuring adequate fault current capacity for mining applications.

This sophisticated construction delivers a cable capable of withstanding the mechanical abuse, environmental extremes, and electrical demands that characterise South African mining operations, whilst maintaining the flexibility essential for trailing applications.

Application Scenarios in South African Mining

The Type 63 Mining Trailing Cable finds its true value across the diverse landscape of South African mining operations, where it powers critical equipment in some of the world's most challenging environments.

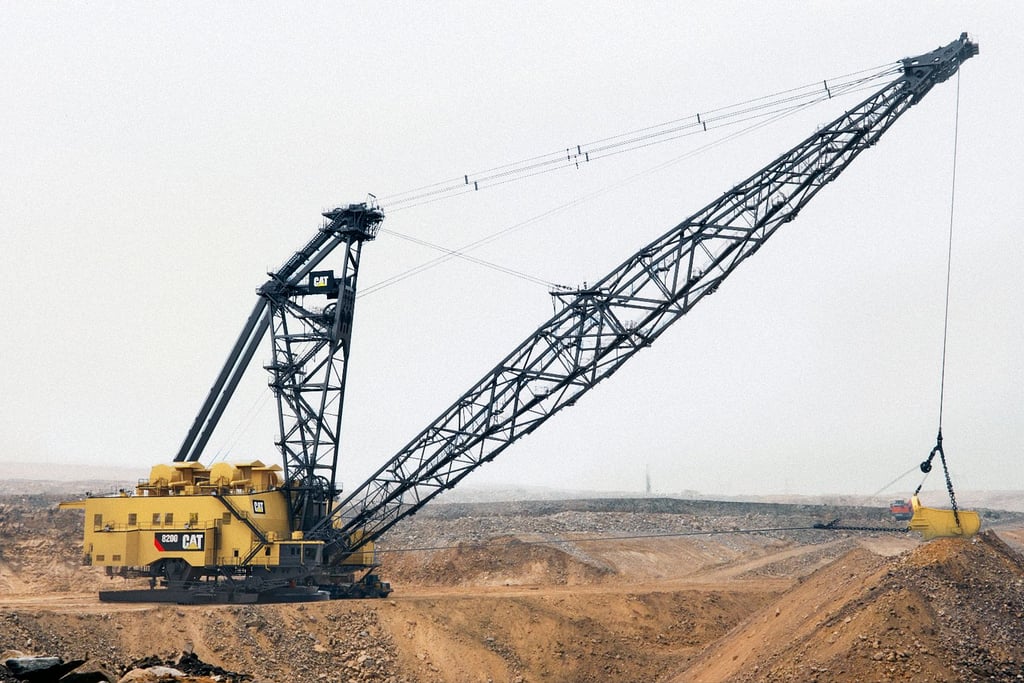

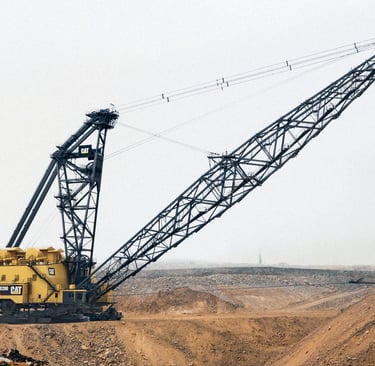

Dragline and Reeling Operations

In South Africa's expansive open-cast coal mines across Mpumalanga and the Waterberg region, draglines represent massive investments requiring absolutely reliable power systems. The Type 63's exceptional flexibility and abrasion resistance make it ideal for these applications, where cables must withstand constant coiling and uncoiling whilst maintaining electrical integrity. Recent expansions at operations like Grootegeluk Coal Mine have highlighted the importance of robust trailing cables that can support equipment operating 24/7 in harsh surface conditions.

The cable's ability to handle mechanical stress proves invaluable during reeling operations, where inferior cables often fail at stress concentration points. The Type 63's reinforced construction and bonded sheath system distribute mechanical loads effectively, extending service life and reducing costly downtime.

Longwall Mining Machinery

South Africa's underground coal mining operations, particularly in KwaZulu-Natal and Mpumalanga, increasingly rely on longwall systems for efficient extraction. These sophisticated operations demand cables that can power shearer units whilst following the advancing face through challenging geological conditions.

The Type 63's screened construction provides the electromagnetic compatibility essential for modern longwall control systems, whilst its flame retardant properties meet the strict safety requirements for underground coal mining. The cable's ability to maintain flexibility in confined spaces makes it ideal for supporting equipment that must navigate tight corners and restricted access areas common in longwall operations.

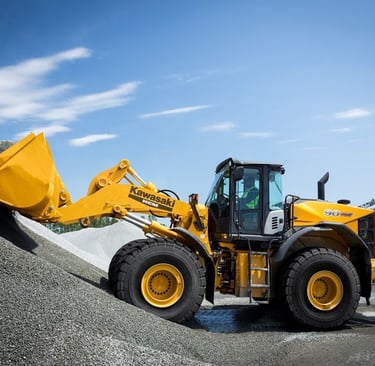

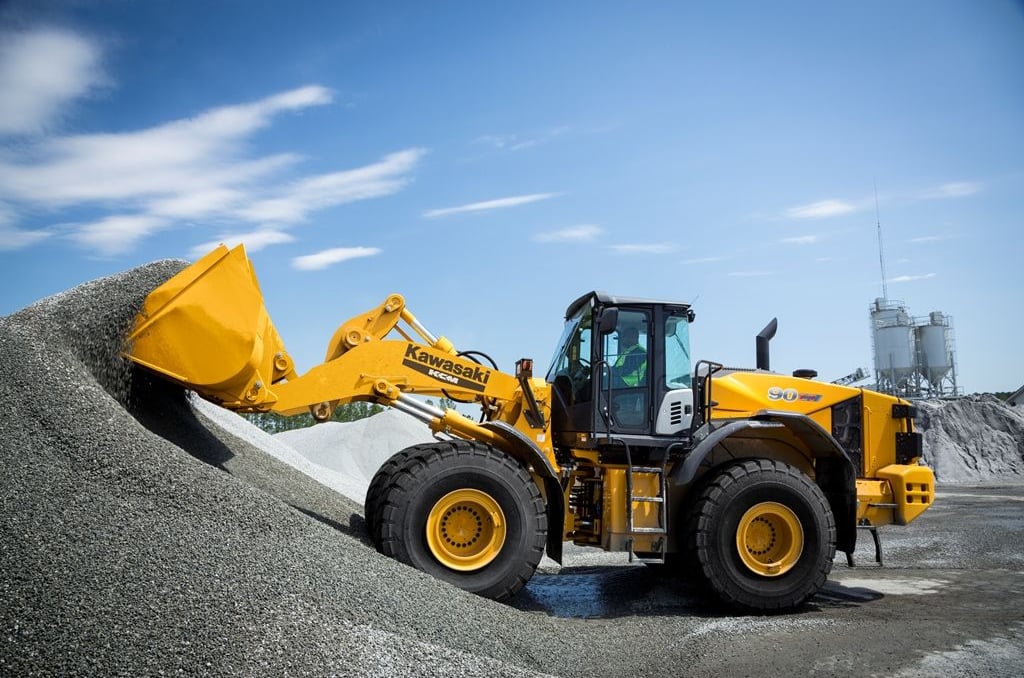

Mobile Mining Equipment

From the platinum mines of the Bushveld Complex to the diamond operations in the Northern Cape, mobile equipment represents the backbone of South African mining. Front-end loaders, continuous miners, and mobile conveyors all require flexible power solutions that can withstand the mechanical abuse of constant movement across rough terrain.

The Type 63's robust outer sheath and internal reinforcement systems provide the mechanical protection necessary for equipment operating in rocky, abrasive environments. Its oil resistance proves particularly valuable in applications where hydraulic fluid contamination is common, ensuring continued operation even when exposed to equipment leaks.

Harsh Environmental Performance

South African mining operations span extreme environments—from the desert conditions of the Northern Cape, where UV exposure and temperature extremes test materials to their limits, to the humid, corrosive conditions of deep-level gold mines where temperatures exceed 40°C and moisture combines with chemical exposure to create particularly challenging conditions.

The Type 63's temperature rating of -25°C to +90°C accommodates these extremes, whilst its UV, sunlight, and ozone resistance ensure reliable surface operation. The poly-chloroprene sheathing system provides excellent weather resistance, maintaining flexibility and integrity even after years of exposure to South Africa's harsh climate conditions.

Regional Applications Across Key Mining Provinces

In Gauteng's deep-level gold mines, the Type 63 supports vertical and horizontal transportation systems that must operate reliably at depths exceeding 3,000 metres. The cable's pressure resistance and mechanical strength make it suitable for these extreme applications.

Across the platinum belt of the North West Province, open-cast and underground operations rely on the Type 63 for powering processing equipment and mobile machinery. The cable's chemical resistance proves particularly valuable in platinum processing environments where exposure to various chemicals is common.

Recent developments in South Africa's mining automation initiatives have further increased demand for reliable trailing cables. As mines implement remote-controlled equipment and automated systems, the electromagnetic compatibility provided by the Type 63's screening becomes increasingly critical for preventing interference with control signals.

Compliance with South African Standards

In South Africa's strictly regulated mining environment, compliance with national standards isn't merely recommended—it's mandatory for safe and legal operation. The Type 63 Mining Trailing Cable's certification to SANS 1520-1 standards represents more than technical achievement; it demonstrates a commitment to the safety protocols that protect South African miners and mining operations.

SANS 1520-1 Certification: The Gold Standard

The South African National Standard SANS 1520-1 specifically addresses flexible cables for mining applications, establishing rigorous requirements for construction, performance, and safety. This standard emerged from decades of South African mining experience, incorporating lessons learned from challenging operational conditions and safety incidents that have shaped modern mining practices.

Type 63 cables bearing SANS 1520-1 certification undergo extensive testing to verify their flame retardant properties, mechanical strength, electrical performance, and environmental resistance. This testing regime simulates the actual conditions encountered in South African mines, ensuring that certified cables will perform reliably when lives and operations depend on their integrity.

NRCS Regulatory Framework

The National Regulator for Compulsory Specifications (NRCS) oversees the implementation of safety standards across South African industry, with particular emphasis on mining applications where equipment failure can have catastrophic consequences. Mining operations utilising non-compliant cables face significant regulatory penalties, operational shutdowns, and potential criminal liability in the event of safety incidents.

NRCS-approved Type 63 cables provide mining operators with confidence that their electrical infrastructure meets all regulatory requirements. This compliance proves essential during routine inspections, licence renewals, and safety audits that form integral parts of South African mining operations.

Electrical Inspection Requirements

South Africa's mining electrical regulations mandate regular inspection of all power cables, with particular scrutiny applied to trailing cables due to their dynamic operating conditions. Inspectors specifically verify that cables meet applicable SANS standards and remain in serviceable condition.

Non-compliant cables discovered during inspections result in immediate shutdown orders until compliant replacements are installed. The financial implications extend beyond replacement costs, encompassing production losses, regulatory fines, and potential legal liability. Type 63 cables' SANS compliance ensures they pass inspection requirements, maintaining operational continuity.

Insurance and Liability Considerations

Mining insurance providers increasingly require evidence of standards compliance when assessing risk and determining premiums. Operations utilising non-compliant electrical equipment may face coverage exclusions or significantly higher premiums, as insurers recognise the increased risk of incidents and claims.

The Type 63's SANS certification provides documentation that mining operators can present to insurance providers, demonstrating their commitment to safety and risk management. This compliance often translates into more favourable insurance terms and reduced liability exposure.

International Standards Alignment

Whilst SANS 1520-1 reflects South African conditions and requirements, it aligns with international best practices, ensuring that Type 63 cables meet global standards for mining applications. This alignment proves valuable for multinational mining companies operating across multiple jurisdictions, providing consistency in their electrical infrastructure standards.

The standard's development incorporated input from international mining experts, equipment manufacturers, and safety professionals, ensuring that SANS-compliant cables like the Type 63 represent world-class engineering solutions adapted to South African conditions.

Benefits and Advantages

The Type 63 Mining Trailing Cable delivers tangible benefits that directly impact mining operations' bottom line, safety performance, and operational efficiency across South Africa's diverse mining landscape.

Operational Reliability: Minimising Costly Downtime

In South African mining operations, every hour of unexpected downtime translates into significant financial losses. A single dragline failure can cost operations hundreds of thousands of rands per day, whilst longwall system interruptions disrupt carefully orchestrated production schedules that impact entire supply chains.

The Type 63's robust construction dramatically reduces the likelihood of cable-related failures. Its reinforced design and superior materials enable it to withstand the mechanical abuse that destroys conventional cables, ensuring consistent power delivery when operations depend on it most. Mining operations across the Witwatersrand and Bushveld Complex report significant reductions in cable-related downtime after switching to Type 63 systems.

Extended Service Life: Maximising Return on Investment

The cable's sophisticated construction delivers exceptional longevity, often exceeding the service life of conventional trailing cables by 200-300%. This extended operational life results from the Type 63's superior resistance to the factors that typically cause cable failure: mechanical stress, environmental degradation, and electrical breakdown.

For South African mining operations managing tight budgets and extended equipment lifecycles, this longevity translates into substantial cost savings. Reduced replacement frequency means lower procurement costs, decreased maintenance labour requirements, and fewer production interruptions for cable replacement activities.

Enhanced Safety Performance: Protecting Personnel and Assets

The Type 63's flame retardant properties provide crucial protection in mining environments where fire risks are elevated. South Africa's mining safety regulations recognise fire as one of the primary hazards in underground operations, making flame-resistant cables mandatory in many applications.

Beyond fire protection, the cable's mechanical durability reduces the risk of electrical failures that could create arc flash incidents or electrocution hazards. Its robust insulation system maintains electrical integrity even when subjected to moisture, chemical exposure, and physical damage that would compromise lesser cables.

Adaptable Design: Versatility Across Applications

The Type 63's engineering accommodates the diverse requirements of South African mining operations. From the high-temperature environments of deep-level gold mines to the abrasive conditions of surface coal operations, the cable adapts to varying operational demands without compromising performance.

This versatility simplifies inventory management for mining operations, allowing them to standardise on a single cable type across multiple applications. Reduced inventory complexity translates into lower carrying costs, simplified procurement processes, and improved spare parts availability.

Environmental Resilience: Thriving in Harsh Conditions

South Africa's mining environments test materials to their limits. The Type 63's resistance to UV radiation, ozone, and oil ensures reliable operation across diverse conditions, from the desert heat of the Northern Cape to the humid underground conditions of KwaZulu-Natal coal mines.

The cable's temperature rating accommodates South Africa's extreme seasonal variations, maintaining flexibility and electrical properties across the full range of operating conditions. This environmental resilience eliminates the need for seasonal cable changes or operational restrictions based on weather conditions.

Economic Impact: Supporting Sustainable Mining Operations

The Type 63's combination of reliability, longevity, and safety performance supports the economic sustainability of South African mining operations. Reduced maintenance costs, improved operational efficiency, and enhanced safety performance contribute to mining operations' competitiveness in global markets.

For mining companies facing pressure to reduce operational costs whilst maintaining safety standards, the Type 63 represents a strategic investment that delivers measurable returns through reduced total cost of ownership and improved operational performance.

Frequently Asked Questions (FAQs)

Q: What makes Type 63 cables specifically suitable for South African mining conditions?

A: Type 63 cables are engineered to withstand the unique challenges of South African mining environments. Their temperature rating (-25°C to +90°C) accommodates our extreme seasonal variations, whilst UV and ozone resistance ensures reliable surface operation under intense African sun. The poly-chloroprene sheathing system provides excellent resistance to the chemical exposure common in processing operations, and the reinforced construction handles the mechanical abuse typical of South African mining applications.

Q: How does SANS 1520-1 certification impact operational compliance?

A: SANS 1520-1 certification is mandatory for trailing cables in South African mining operations. Non-compliant cables result in immediate shutdown orders during electrical inspections, production losses, and potential regulatory penalties. NRCS requirements make compliance essential for maintaining operating licences, and insurance providers increasingly require evidence of standards compliance when assessing risk and determining premiums.

Q: What voltage ratings are available, and how do I select the appropriate specification?

A: Type 63 cables are available in voltage ratings from 1.9kV to 3.3kV, suitable for medium-voltage mining applications. Selection depends on your specific equipment requirements and electrical system design. Consult with qualified electrical engineers and cable suppliers to ensure proper specification for your application, considering factors such as power requirements, cable length, and environmental conditions.

Q: How does the Type 63 compare to alternative trailing cable solutions?

A: The Type 63's SANS 1520-1 certification, combined with its sophisticated construction, provides superior performance compared to non-compliant alternatives. Its screened power cores offer electromagnetic compatibility essential for modern mining control systems, whilst the bonded sheath system delivers exceptional torsional protection. The flame retardant properties and mechanical durability typically result in 200-300% longer service life compared to conventional cables.

Q: What maintenance requirements should operators expect?

A: Type 63 cables require regular visual inspection for mechanical damage, contamination, and wear. Electrical testing should verify insulation integrity and screen continuity according to mining electrical safety protocols. Proper cable handling, storage, and installation practices significantly impact service life. Avoid sharp bends below minimum bend radius, protect cables from mechanical damage, and ensure proper strain relief at connection points.

Q: Are Type 63 cables suitable for automated mining equipment?

A: Yes, the Type 63's screened construction provides the electromagnetic compatibility essential for automated mining systems. The screening prevents electrical interference that could disrupt control signals, whilst the robust construction handles the continuous movement required by remote-controlled and automated equipment. Recent mining automation projects across South Africa have successfully utilised Type 63 cables for powering sophisticated control systems.

Q: What should operators consider when sourcing Type 63 cables?

A: Verify SANS 1520-1 certification and NRCS approval before procurement. Ensure suppliers provide comprehensive technical documentation, including test certificates and compliance declarations. Consider suppliers with local support capabilities and technical expertise in South African mining applications. Evaluate total cost of ownership, including service life, maintenance requirements, and warranty provisions, rather than focusing solely on initial purchase price.

Q: How do environmental factors affect cable selection and performance?

A: South African mining operations span diverse environments requiring careful consideration of UV exposure, temperature extremes, chemical contamination, and mechanical stress. The Type 63's environmental resistance accommodates these challenges, but proper installation and protection remain important. Consider cable routing, protection systems, and environmental conditions when specifying cable requirements and designing installation systems.

Conclusion: The Right Cable for South Africa's Mining Future

As South Africa's mining industry navigates an increasingly competitive global landscape, the foundation of operational excellence rests upon reliable, compliant, and durable infrastructure. The Type 63 Mining Trailing Cable represents more than a technical solution—it embodies the engineering precision and regulatory compliance essential for modern mining operations.

The cable's SANS 1520-1 certification ensures that South African mining operations meet the strict safety and performance standards demanded by our regulatory environment. Its voltage rating of 1.9kV to 3.3kV, combined with exceptional mechanical durability and environmental resistance, positions it perfectly to power the diverse equipment that drives our mining sector's productivity.

From the deep-level gold mines of the Witwatersrand to the expansive coal operations of Mpumalanga, from the platinum wealth of the Bushveld Complex to the diamond resources of the Northern Cape, the Type 63 has proven its worth across South Africa's diverse mining landscape. Its ability to withstand our extreme conditions—scorching surface temperatures, humid underground environments, and the mechanical abuse inherent in mining operations—makes it an indispensable component of reliable mining infrastructure.

The cable's role in supporting safe, efficient, and sustainable mining extends beyond immediate operational benefits. Its flame retardant properties protect personnel and assets, whilst its extended service life reduces environmental impact through decreased replacement frequency. For mining companies committed to responsible resource extraction, the Type 63 represents alignment between operational excellence and environmental stewardship.

As South Africa's mining sector embraces automation, digitalisation, and advanced extraction technologies, the importance of reliable electrical infrastructure becomes even more critical. The Type 63's electromagnetic compatibility and robust construction position it perfectly to support these technological advances, ensuring that our mining operations remain competitive in evolving global markets.

For mining operations currently relying on outdated or non-compliant cables, the time for upgrading to SANS-compliant solutions has never been more urgent. Regulatory enforcement continues to strengthen, insurance requirements become more stringent, and operational demands increase—making the Type 63's combination of compliance, reliability, and performance increasingly valuable.

The path forward requires partnership with suppliers who understand South African mining conditions, regulatory requirements, and operational challenges. Choose suppliers who provide comprehensive technical support, maintain local inventory, and demonstrate deep expertise in mining applications. The investment in quality cables like the Type 63, supported by knowledgeable suppliers, delivers returns that extend far beyond initial cost considerations.

South Africa's mining future depends upon infrastructure that can support our industry's continued evolution whilst maintaining the highest standards of safety and reliability. The Type 63 Mining Trailing Cable stands ready to power that future, delivering the performance, compliance, and durability that our mining sector requires to maintain its position as a global leader in resource extraction.

In an industry where failure is not an option and safety is paramount, the Type 63 represents the intersection of technical excellence and regulatory compliance—exactly what South African mining operations need to power their continued success.
