XLPE Insulated, PVC Sheathed Unarmored Multicore control Cables 0.6/1kV

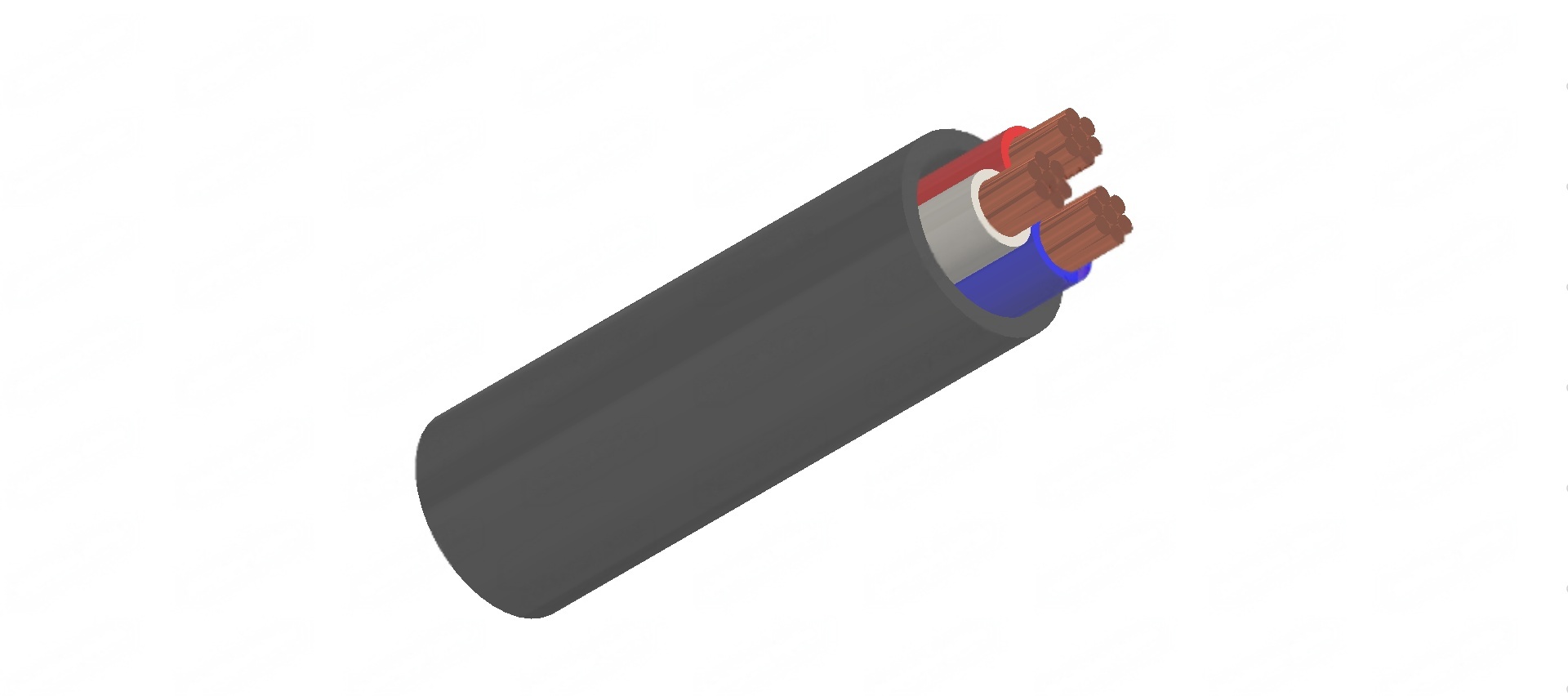

Name: XLPE Insulated, PVC Sheathed Unarmored Multicore control Cables 0.6/1kV
Price: NaN
Availability: InStock

Application

These cables are used for control circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for commercial, industrial, mining and electricity authority systems where not subject to mechanical damage.

Standard

AS/NZS 5000.1
AS/NZS 3008
AS1125

Construction

Conductor	Plain annealed copper.
Insulation	XLPE X-90.
Insulation colour:	3C – Red, White, Blue 4C - Red, White, Blue,black
Sheath:	Polyvinylchloride compound PVC 5V-90
Sheath colour:	Black, other colors are available upon request

Technical Characteristics

Conductor	Current Ratings			Electrical Characteristics
Nominal Area mm^2	Unenclosed In Air A	Buried Direct A	Buried In Ducts A	Maximum DC Resistance @20°C Ohm/km	Maximum AC Resistance @90°C Ohm/km	Reactance Ohm/km	Three Phase Voltage Drop @90°C mV/A
10	68	91	68	1.83	2.33	0.084	4.05
16	91	118	89	1.15	1.47	0.081	2.55
25	121	155	118	0.727	0.927	0.081	1.61

Cable Parameter

Nom. conductor area mm^2	Main conductor type	Nom. insulation thickness mm	Nom. sheath thickness mm	Nom. overall diameter mm	Approx. mass kg/km
3 cores
10	7/1.35	0.7	1.4	15.3	435
16	7/1.70	0.7	1.4	17.6	625
25	7/2.14	0.9	1.4	21.5	950
4 cores
10	7/1.35	0.7	1.4	16.7	550
16	7/1.70	0.7	1.4	19.2	800
25	7/2.14	0.9	1.4	23.6	1250
