Y 0.6/1kV
Application
These cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).
Standards
DIN VDE 0262/12.95
DIN VDE 0281 part 13

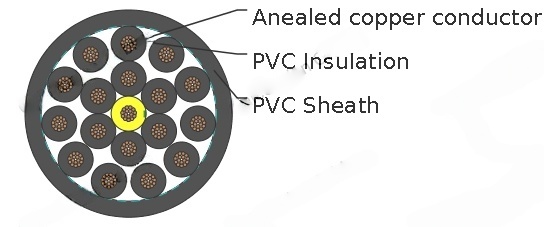

Construction
Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
Insulation | PVC Type TI 2/YI 2. |
Sheath | PVC Type TM 2/YM 2. |
Technical Data
Rated Voltage Uo/U (Um) | 600/1000V |
Operating Temperatures | flexing: -5℃~+80℃; fixed: -40℃~+80℃ |
Minimum Bending Radius | flexing: 7.5×OD; fixed: 4×OD |
Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Oil Resistant | Yes |
Silicone Free | Yes |
UV Resistant | Yes |
