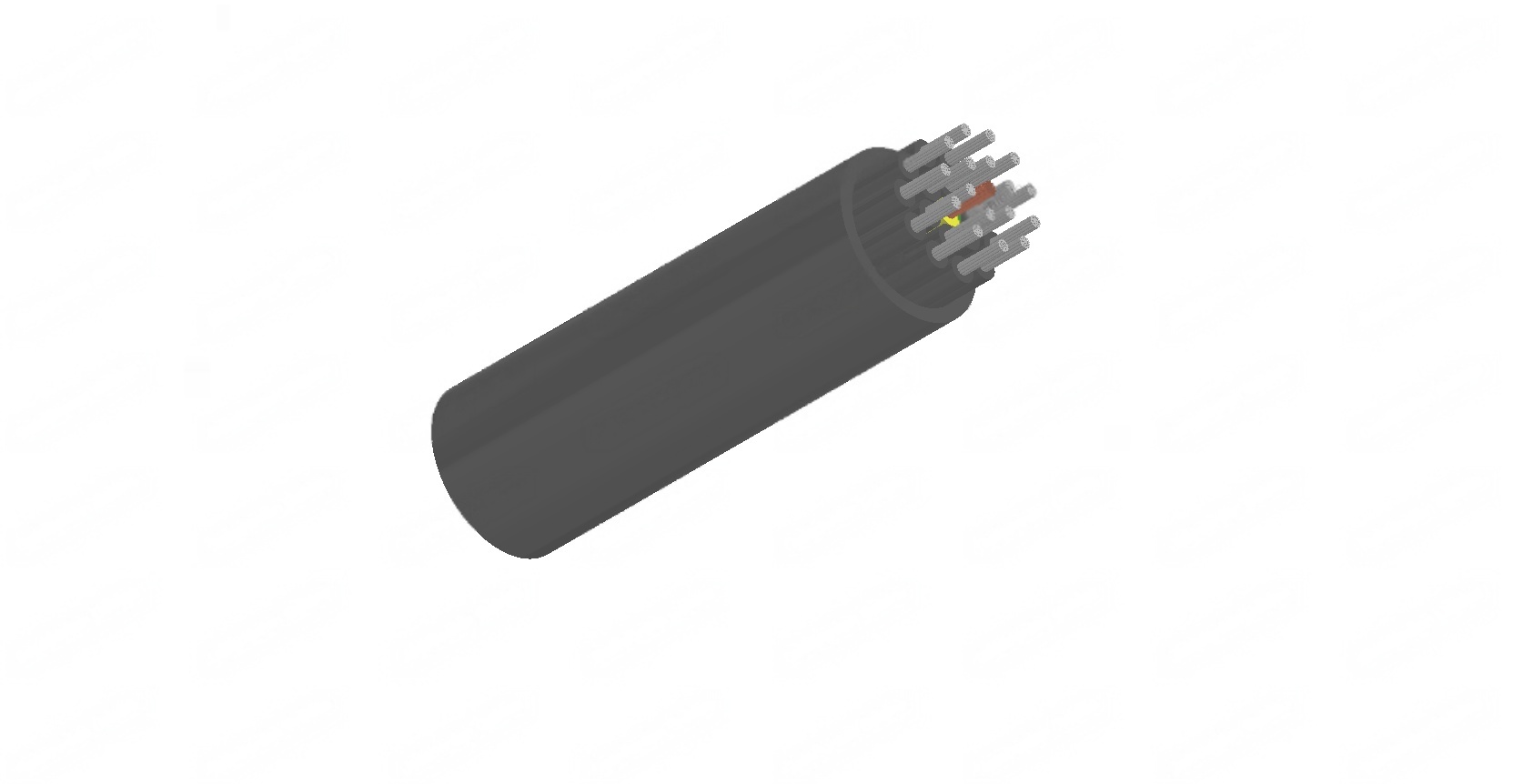

Y 0.6/1kV
Application
These cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).
Standards
DIN VDE 0262/12.95
DIN VDE 0281 part 13

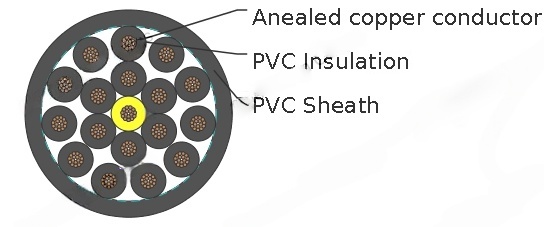

Construction
Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
Insulation | PVC Type TI 2/YI 2. |
Sheath | PVC Type TM 2/YM 2. |
Technical Data
Rated Voltage Uo/U (Um) | 600/1000V |
Operating Temperatures | flexing: -5℃~+80℃; fixed: -40℃~+80℃ |
Minimum Bending Radius | flexing: 7.5×OD; fixed: 4×OD |
Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Oil Resistant | Yes |
Silicone Free | Yes |
UV Resistant | Yes |
Dimensions and Weight

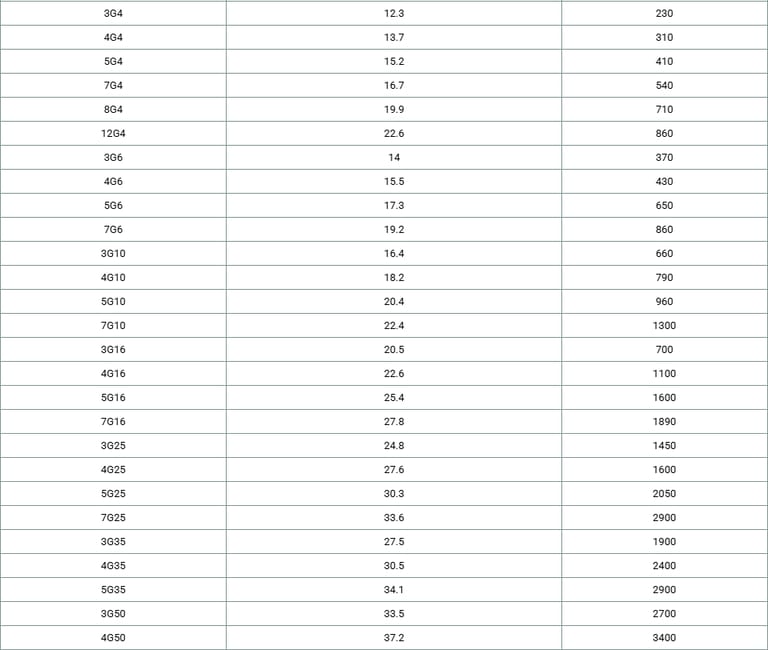

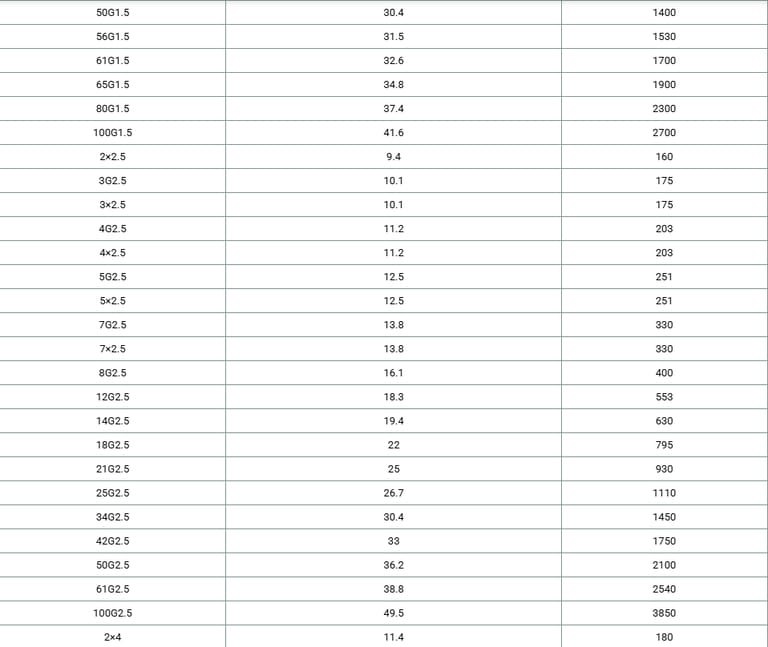

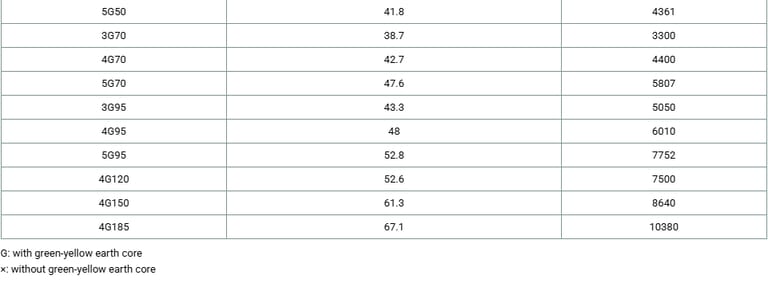

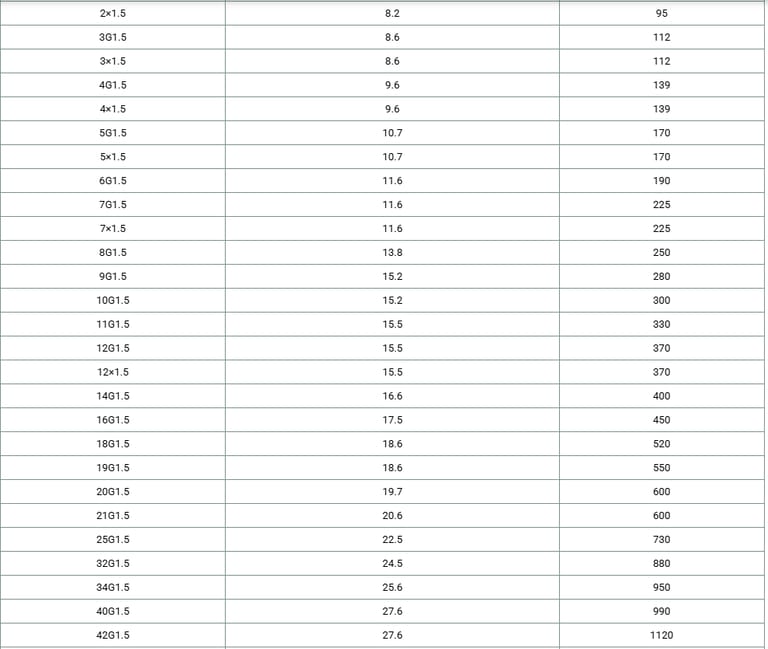

CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM2 | MM | KG/KM |
2×0.5 | 6.3 | 56 |
3G0.5 | 6.7 | 68 |
3×0.5 | 6.7 | 68 |
4G0.5 | 7.2 | 100 |
4×0.5 | 7.2 | 100 |
5G0.5 | 8 | 117 |
5×0.5 | 8 | 117 |
6G0.5 | 8.9 | 126 |
7G0.5 | 8.9 | 138 |
7×0.5 | 8.9 | 138 |
8G0.5 | 10.2 | 150 |
8×0.5 | 10.2 | 150 |
10G0.5 | 11.2 | 176 |
12G0.5 | 11.4 | 200 |
12×0.5 | 11.4 | 200 |
14G0.5 | 12.3 | 230 |
16G0.5 | 12.9 | 250 |
18G0.5 | 13.8 | 276 |
20G0.5 | 14.4 | 293 |
21G0.5 | 14.4 | 305 |
25G0.5 | 16.4 | 335 |
30G0.5 | 17.2 | 348 |
32G0.5 | 18 | 355 |
34G0.5 | 18.7 | 520 |
40G0.5 | 20.2 | 590 |
42G0.5 | 20.2 | 595 |
50G0.5 | 22.1 | 715 |
52G0.5 | 22.1 | 740 |
61G0.5 | 23.6 | 840 |
65G0.5 | 25 | 880 |
80G0.5 | 27.2 | 960 |
100G0.5 | 30.2 | 1050 |
2×0.75 | 6.6 | 66 |
3G0.75 | 7 | 74 |
3×0.75 | 7 | 74 |
4G0.75 | 7.6 | 126 |
4×0.75 | 7.6 | 126 |
5G0.75 | 8.4 | 140 |
5×0.75 | 8.4 | 140 |
6G0.75 | 9.3 | 170 |
6×0.75 | 9.3 | 170 |
7G0.75 | 9.3 | 190 |
7×0.75 | 9.3 | 190 |
8G0.75 | 10.9 | 212 |
8×0.75 | 10.9 | 212 |
9G0.75 | 11.8 | 227 |
10G0.75 | 11.8 | 238 |
12G0.75 | 12.3 | 257 |
12×0.75 | 12.3 | 257 |
14G0.75 | 12.9 | 286 |
15G0.75 | 13.8 | 319 |
18G0.75 | 14.5 | 362 |
20G0.75 | 15.4 | 394 |
21G0.75 | 16.1 | 422 |
25G0.75 | 17.4 | 486 |
32G0.75 | 19.1 | 595 |
34G0.75 | 19.9 | 638 |
37G0.75 | 19.9 | 696 |
40G0.75 | 21.5 | 726 |
41G0.75 | 21.5 | 750 |
42G0.75 | 21.5 | 770 |
50G0.75 | 23.5 | 895 |
61G0.75 | 25.3 | 1070 |
65G0.75 | 26.9 | 1110 |
80G0.75 | 28.9 | 1500 |
100G0.75 | 32.1 | 1889 |
2×1 | 7 | 80 |
3G1 | 7.3 | 96 |
3×1 | 7.3 | 96 |
4G1 | 8.2 | 100 |
4×1 | 8.2 | 100 |
5G1 | 9.2 | 130 |
5×1 | 9.2 | 130 |
6G1 | 9.9 | 150 |
7G1 | 9.9 | 170 |
7×1 | 9.9 | 170 |
8G1 | 11.6 | 230 |
9G1 | 12.8 | 250 |
10G1 | 12.8 | 270 |
10×1 | 12.8 | 270 |
12G1 | 13 | 290 |
12×1 | 13 | 290 |
14G1 | 14 | 320 |
16G1 | 14.8 | 360 |
18G1 | 15.7 | 405 |
18×1 | 15.7 | 405 |
20G1 | 16.7 | 450 |
21G1 | 17.4 | 510 |
24G1 | 18.4 | 550 |
25G1 | 18.8 | 570 |
25×1 | 18.8 | 570 |
26G1 | 18.8 | 590 |
30×1 | 19.9 | 650 |
34G1 | 21.5 | 750 |
36G1 | 21.5 | 790 |
40G1 | 23.2 | 850 |
40×1 | 23.2 | 850 |
41G1 | 23.2 | 890 |
42G1 | 23.2 | 900 |
50G1 | 25.6 | 1100 |
56G1 | 26.4 | 1190 |
61G1 | 27.3 | 1266 |
65G1 | 29 | 1560 |
80G1 | 31.4 | 1810 |
100G1 | 34.8 | 1950 |
3G16 | 20.5 | 700 |
